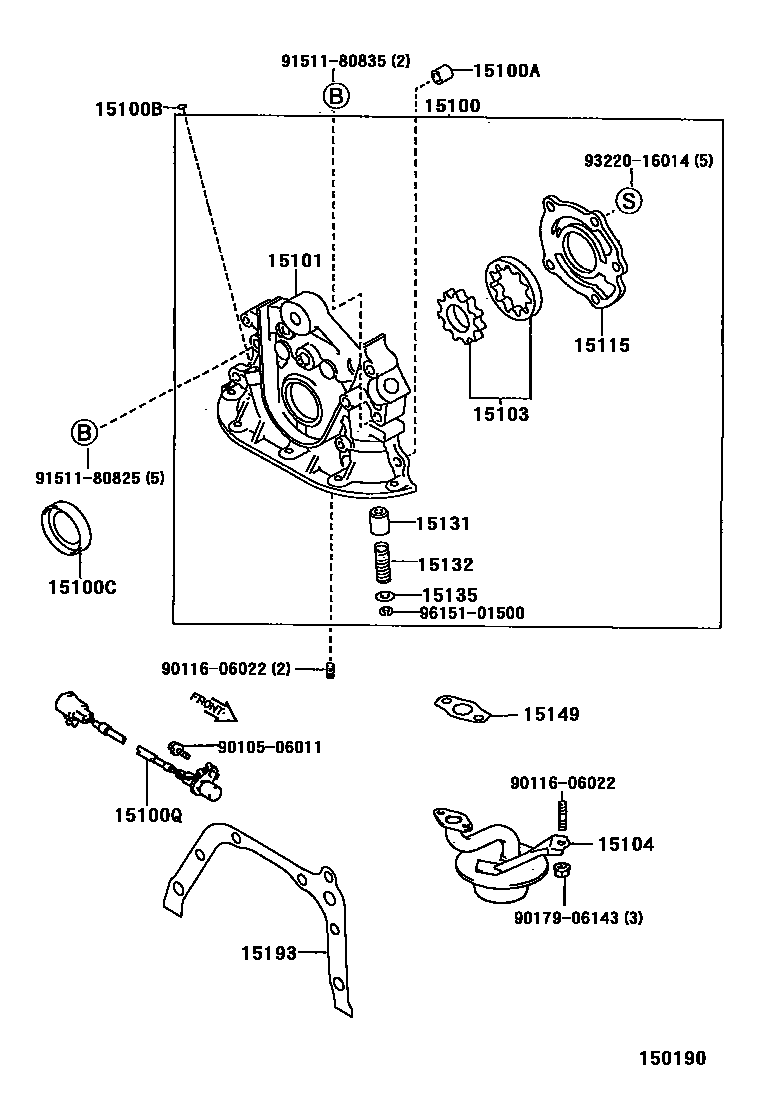

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-16070i7AFE..AT211199708

main15100-64040i3CTE..CT216199708-199812

sub90119-08B81

main15100-64041i3CTE..CT216199812-199906

main15100-64042i3CTE..CT216199906-200209

main15100-74050i3SFE..ST21#199708

main15100-88560i3SG#..ST215199708-199806

main15100-88561i3SG#..ST21#199806

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i7AFE..AT211199708

15100BRING, O(FOR OIL PUMP)

main15188-74050i3SFE,3SG#..ST21#199708

main96721-19010i7AFE..AT211199708

15100CSEAL(FOR OIL PUMP)

main15165-74020i3SFE..ST21#199708

main15165-88382i3SG#..ST21#199708

main90311-32002i7AFE..AT211199912-200003

main90311-32020i7AFE..AT211199708-199912

15100QSENSOR, CRANK POSITION

main90919-05011i7AFE..AT211199708

15101BODY SUB-ASSY, OIL PUMP

main15011-16070i7AFE..AT211199708

15103GEAR SET, OIL PUMP

main15103-15020i7AFE..AT211199708

15104STRAINER SUB-ASSY, OIL

main15104-16060i7AFE..AT211199708

main15104-64080i3CTE..CT216199708-200209

main15104-74090i3SFE..ST21#199708

main15104-88461i3SG#..ST21#199708

sub15104-88460

15115COVER, OIL PUMP

main15115-15020i7AFE..AT211199708

15131VALVE, OIL PUMP RELIEF

main15131-24010i7AFE..AT211199708

main15131-64020i3CTE..CT216199708-199812

main15131-64041i3CTE..CT216199812-200209

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i3CTE..CT216199812-200209

main15132-40010i7AFE..AT211199708

main15132-64012i3CTE..CT216199708-199812

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3SFE..ST21#199708

15149GASKET, OIL STRAINER FLANGE

main15149-16010i7AFE..AT211199708

15193GASKET, OIL PUMP

main15193-64021i3CTE..CT216199708-199804

main15193-64022i3CTE..CT216199804-200209

main15197-16030i7AFE..AT211199708

main15197-74040i3SFE..ST21#199708

main15197-88560i3SG#..ST215199708-199810

main15197-88570i3SG#..ST21#199810

9010506011

main90105-06011

9011606022

main90116-06022

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

21 parts on this diagram · 4 diagrams in section
