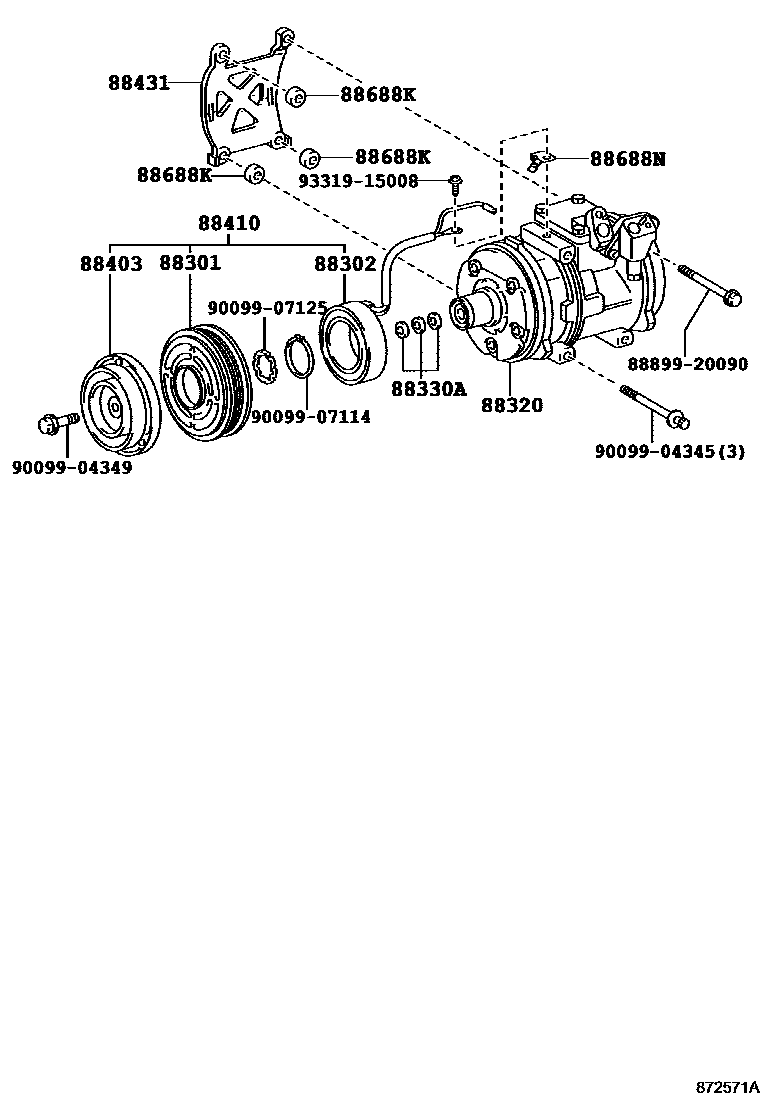

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12190iET196199601-200206

main88412-16050iST195..TZG199601-199708

main88412-1A060iAT191199601-199708

main88412-20110iET196..UX;ET196..3FC..(U,UL)199211-199307

main88412-20200iST19#..CZ,TZ199601-199708

main88412-2B020iST19#..CZ,FZ,TZ199211-199601

main88412-2B030iST195..TZG199211-199509

sub88412-33050

main88412-2B040iET196199307-199601

main88412-2B070iCT19#199402-199508

main88412-2B090iST198199908-200206

main88412-33050iCT19#199509-200206

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iCT196,198199211-199601

sub88411-2A030

main88411-22310iCT190199211-199708

sub88411-2A030

main88411-2A030iCT19#,ET196,ST198199708-200206

main88411-32080iET196..3FC..(U,UL);ET196,ST19#..CZ,FZ,TZ,UX199211-199601

sub88411-2B090

88320COMPRESSOR ASSY, COOLER

main88320-21010iET196199211-199601

main88320-21030iET196199601-200206

main88320-21040iST195..TZG199601-199612

sub88320-44020

main88320-2B080iST195..4FC199211-199502

main88320-2B090iCT19#199211-199402

main88320-2B100iST195..TZG199502-199601

main88320-2B120iST19#..CZ,FZ,TZ199402-199601

main88320-2B130iCT19#199402-199601

sub88320-2BH90

main88320-2B340iAT191199601-199708

sub88320-35H92

main88320-2B350iST19#..CZ,TZ,U,UL,UX199601-200206

main88320-2B360iCT19#199601-200206

sub88320-2BH90

main88320-44020iST195..TZG199612-199708

sub88320-44H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCT197..UX;AT191,CT190,196,198,ET196,ST19#199211-199307

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iAT191,CT19#,ET196,ST19#199211-200206

88410CLUTCH ASSY, MAGNET

main88410-21010iET196199211-199601

main88410-21020iET196199601-200206

main88410-2B040iST19#..CZ,FZ,TZ199211-199601

main88410-2B060iCT19#199211-200206

main88410-2B170iAT191199601-199708

main88410-2B180iST19#..CZ,TZ199601-199708

sub88410-2B240

main88410-2B190iST195..TZG199601-199708

main88410-2B240iST198199908-200206

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12460iCT19#199211-199601

main88431-20310iET196199211

main88431-20390iAT191199601-199708

88688KBRACKET, COOLER COMPRESSOR

main88688-2D720iCT19#199601

88688NBRACKET, COOLER

main88688-21020iST195..TZG199601-199708

main88688-2D760iAT191199601-199708

main88688-2D770iCT197,199;CT190,196..CZ,FZ,UX199601

main88688-33260iET196,ST19#..CZ,TZ,UX199601-199708

8889920090COVER, EVAPORATOR

main88899-20090

9009904345

main90099-04345

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

15 parts on this diagram · 5 diagrams in section
