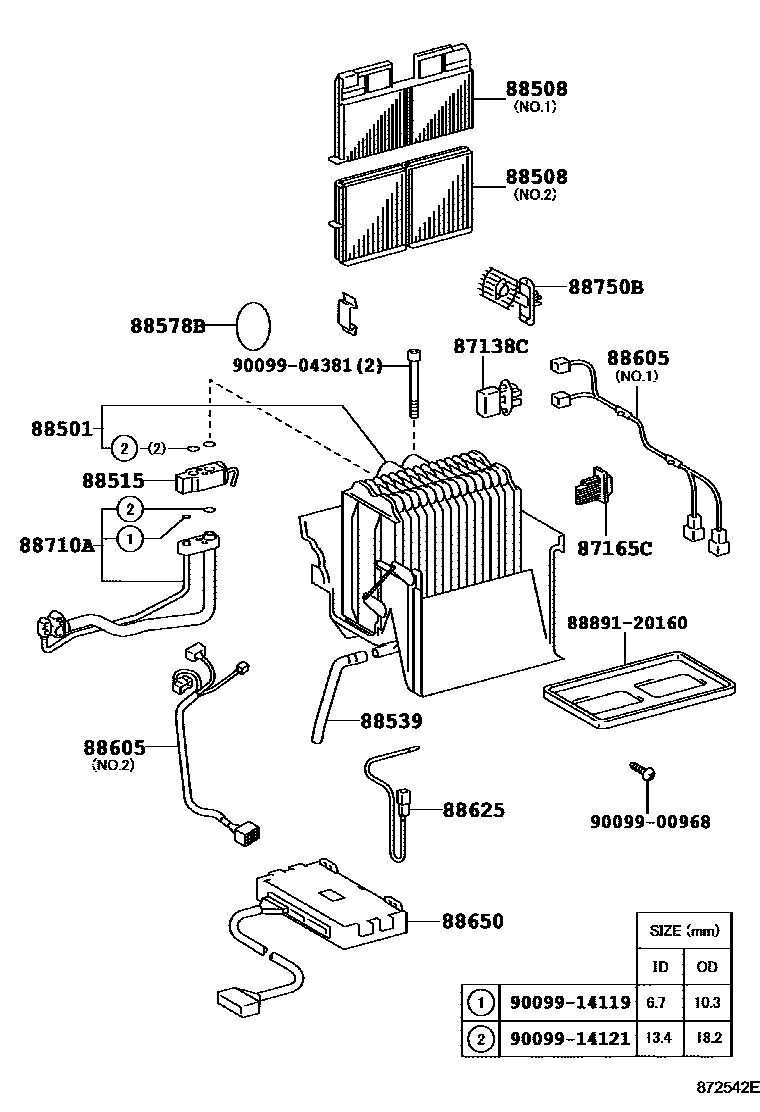

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1����� 0003 1�-�

87138CRESISTOR, BLOWER

main87138-20230iAT191,CT190..FZ199601-199607

main87138-20230iCT190,ST19#199211-199601

main87138-20240iCT196,198,ET196199211-199607

sub87138-20320

main87138-20320iAT191,CT19#,ET196,ST198..FZ,U,UL,UX199607

87165CCONTROL, BLOWER MOTOR

main87165-21010iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

sub87165-32010

main87165-21010iAT191..FZ199610-199708

sub87165-32010

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20290iCT19#,ET196,ST19#199211-199411

sub88501-20291

main88501-20291iAT191,CT19#,ET196,ST19#199411

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20020iAT191,CT19#,ET196,ST19#199211-199702

sub88508-20060

main88508-20030iAT191,CT19#,ET196,ST19#199211-199702

sub88508-20070

main88508-20060iAT191,CT19#,ET196,ST19#199702-200206

main88508-20070iAT191,CT19#,ET196,ST19#199702-200206

88515VALVE, COOLER EXPANSION

main88515-20100iAT191,CT19#,ET196,ST19#199211

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20270iAT191,CT19#,ET196,ST19#199311

88578BPACKING, COOLING UNIT, NO.1

main88578-20490iCT196,198,ET196..(4FC,5F)..(U,UL)199211-199601

main88578-20590iCT196,197,198,199,ET196,ST198..U,UL199601

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D180iCT196,198,ET196199211-199601

main88605-2D190iCT190,ST19#199211-199601

main88605-2D200iCT190,ST19#199211-199402

main88605-2D420iCT190,ST19#199402-199601

main88605-2D470iAT191,CT190,ST19#199601-199708

88625THERMISTOR, COOLER, NO.1

main88625-20390iCT19#,ET196,ST19#199211-199601

main88625-20490iAT191..FZ199610-199708

main88625-32160iAT191..FZ199610-199708

main88625-32170iAT191..FZ199610-199708

sub88625-32171

main88625-3A090iAT191,CT19#,ET196,ST19#199601

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-21010iCT196..UX;CT196,198..5F..(U,UL)199211-199601

main88650-21010iCT196..UX199307-199502

main88650-21020iET196199211-199708

main88650-21030iCT196..4FC..UX199601-199805

main88650-21030iCT196..4FC..(U,UL)199601-199805

main88650-21040iCT196..4FC..(U,UL)199601-199805

main88650-21090iCT197,199,ET196199708-199908

main88650-2B160iCT190,ST19#199211-199501

main88650-2B330iST195..5F;CT190,ST190,191199402-199501

main88650-2B360iCT196..4FC..(U,UL)199307-199501

main88650-2B360iCT196..4FC..(U,UL)199211-199307

main88650-2B370iCT196..4FC..(U,UL)199501-199502

main88650-2B370iCT196..4FC..UX199501-199601

main88650-2B370iCT196..4FC..(U,UL)199502-199601

main88650-2B380iCT190,ST19#199501-199601

main88650-2B470iAT191..FZ199601-199708

main88650-2B480iST198199908

main88650-2B490iCT190..FZ199601-199708

88710ATUBE ASSY, AIR CONDITIONER

main88710-20380iCT190,ST19#199211-199305

main88710-20380iCT190,ST19#199211-199305

main88710-20380iCT19#,ET196,ST19#199305-199601

main88710-20600iAT191,CT19#,ET196,ST19#199601

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-20020iCT190,ST19#199211-199601

8889120160PACKING (FOR COOLER)

main88891-20160

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

17 parts on this diagram · 3 diagrams in section
