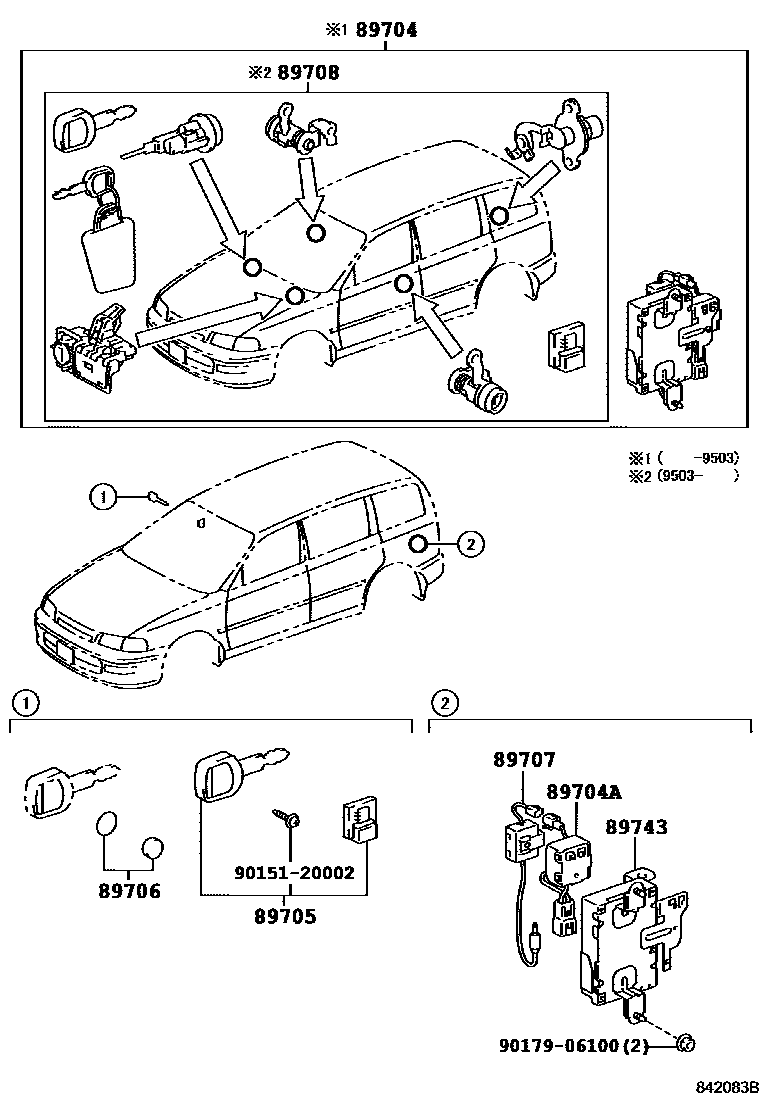

WIRELESS DOOR LOCK

0001 1 0002 1

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-21010iCT190,ST19#..CZ,TZ199211-199503

sub89708-21010

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05243iCT190,ST19#..CZ,TZ199211-199601

89705TRANSMITTER, DOOR CONTROL

main89705-12020iCT190,ST19#..CZ,TZ199211-199601

89706BATTERY SET, TRANSMITTER

main89706-50010iCT190,ST19#..CZ,TZ199211-199601

sub89745-48020

sub90151-20002

sub90301-14005

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-21010iCT190,ST19#..CZ,TZ199211-199601

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-21010iCT190,ST19#..CZ,TZ,TZG199503-199601

89743RECEIVER, DOOR CONTROL

main89743-21010iCT190,ST19#..CZ,TZ199211-199601

9015120002

main90151-20002

9017906100

main90179-06100

9 parts on this diagram · 2 diagrams in section
