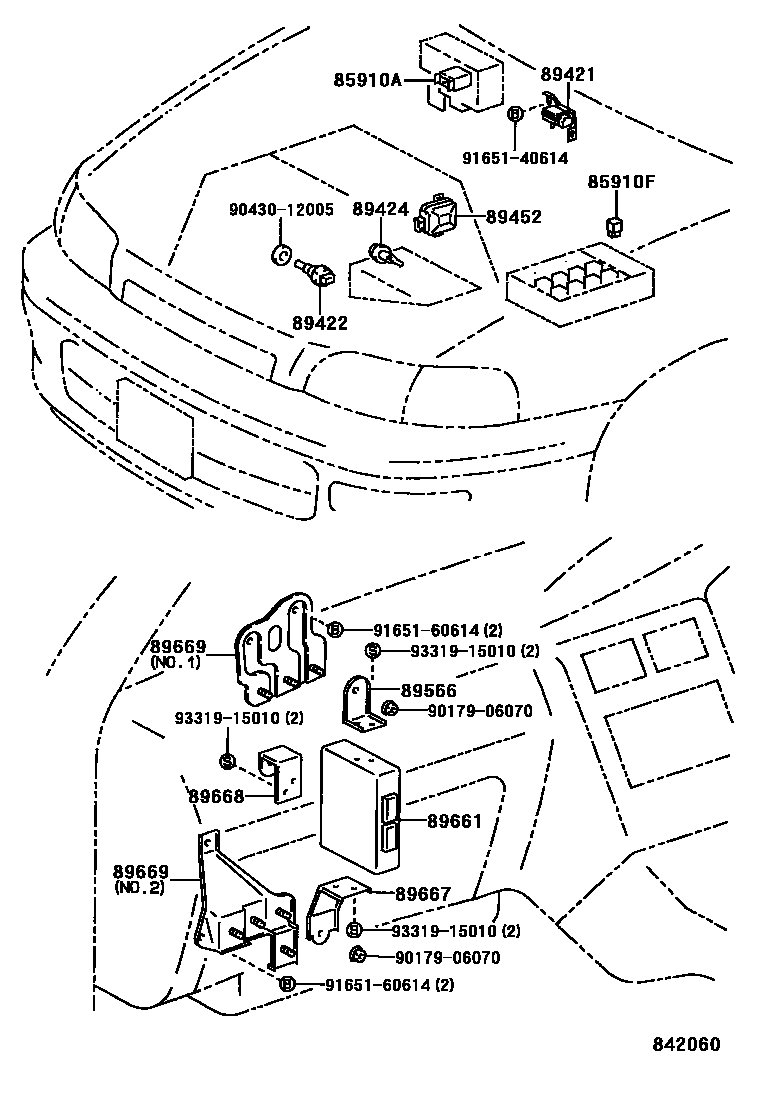

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iET196,ST19#199211-199601

main90987-02012iAT191,ET196,ST19#199601

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAT191,ET196,ST19#199211-199708

main90987-02012iET196199708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20230iST19#..CZ,FZ,TZ199211-199708

main89420-20240iST195..TZG199502-199601

main89420-20250iAT191,ET196,ST19#..CZ,FZ,TZ,U,UL,UX199211-199601

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iET196199705

main89422-20010iET196,ST19#..CZ,FZ,TZ,U,UL,UX199211-199708

main89422-20010iET196199601-199705

main89422-22030iET196199705

main89422-35010iST19#199502-199601

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT191,ET196,ST19#199211

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10010iST190..5F199211-199601

main89452-10040iET196199708-199807

sub89452-20130

main89452-12060iET196199211-199601

main89452-16020iET196199601-199708

main89452-20130iAT191199601-199708

main89452-22090iST195;ST190,191..4FC199211-199708

main89452-33030iST19#..CZ,TZ,U,UL,UX199607

89566BRACKET, FUEL INJECTION COMPUTER

main89566-20020iST19#199211-199601

89661COMPUTER, ENGINE CONTROL

main89661-1E170iET196199708

main89661-21010iST190..5F199211-199402

main89661-21020iST190..4FC199211-199402

main89661-21030iST195..5F199211-199402

main89661-21070iST195..5F..TZG199502-199601

main89661-21080iST195..4FC..TZG199502-199601

main89661-21100iAT191..5F199601-199608

sub89661-2D790

main89661-21110iAT191..4FC199601-199608

sub89661-2D800

main89661-21120iST195..5F..TZG199601-199708

main89661-21130iST195..4FC..TZG199601-199708

main89661-21140iET196199601-199708

main89661-21150iST191199601-199708

main89661-21160iST195..4FC..(CZ,TZ)199601-199708

main89661-21170iAT191..5F..CZ199601-199608

sub89661-2D820

main89661-21180iAT191..4FC..CZ199601-199608

sub89661-2D830

main89661-21190iAT191..5F..CZ199601-199608

sub89661-21191

main89661-21191iAT191..5F..CZ199608-199708

main89661-21200iAT191..4FC..CZ199601-199608

sub89661-21201

main89661-21201iAT191..4FC..CZ199608-199708

main89661-21260iST198199908

main89661-2B451iST191199211-199402

main89661-2B471iST195..4FC199211-199402

main89661-2B521iST191199211-199402

main89661-2B610iET196199211-199601

main89661-2D110iST190..5F199402-199601

main89661-2D120iST190..4FC199402-199601

main89661-2D130iST191199402-199601

main89661-2D140iST191199402-199601

main89661-2D150iST195..5F..(CZ,TZ)199402-199601

main89661-2D160iST195..4FC199402-199501

main89661-2D260iST195..4FC..(CZ,TZ)199502-199601

main89661-2D570iAT191..5F199601-199608

sub89661-2D571

main89661-2D571iAT191..5F199608-199708

main89661-2D580iAT191..4FC199601-199608

sub89661-2D581

main89661-2D581iAT191..4FC199608-199708

main89661-2D590iST191199601-199708

main89661-2D600iST195..5F..(CZ,TZ)199601-199708

main89661-2D610iST195..4FC..(CZ,TZ)199601-199708

main89661-2D790iAT191..5F199608-199708

main89661-2D800iAT191..4FC199608-199708

main89661-2D820iAT191..5F..CZ199608-199708

main89661-2D830iAT191..4FC..CZ199608-199708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20220iET196,ST19#199211-199601

main89667-20380iAT191,ET196,ST19#199601

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20190iET196,ST19#199211-199601

main89668-20340iAT191,ET196,ST19#199601

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-20150iET196,ST19#199211-199601

main89669-20170iET196,ST19#199211-199601

9017906070

main90179-06070

9043012005

main90430-12005

9165140614

main91651-40614

9165160614

main91651-60614

9331915010

main93319-15010

16 parts on this diagram · 2 diagrams in section
