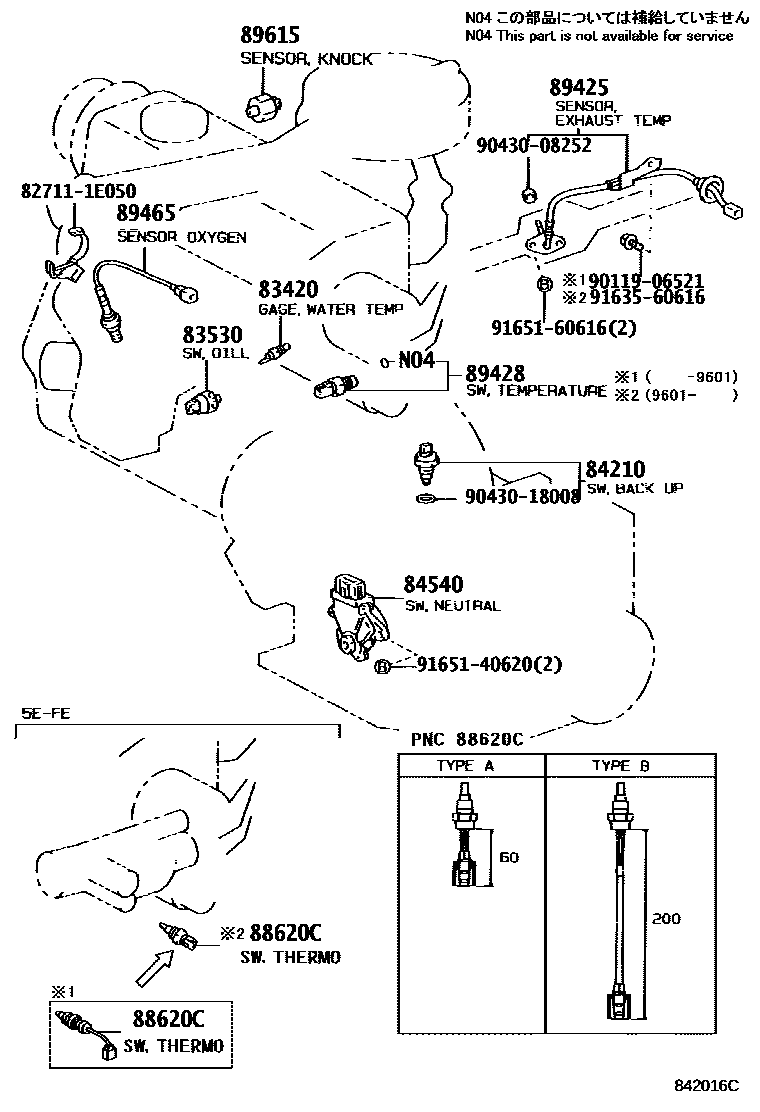

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iET196199211-199705

main83420-16040iST190..TZ;ST191,195199211-199601

main83420-16050iST19#199601-200004

sub83420-20040

main83420-20020iCT19#199211

main83420-20030iST190..TZ;ST191,195199211-199601

sub83420-16040

main83420-20040iAT191199601-199708

main83420-20040iST190..CZ,FZ199211-199601

main83420-20040iST19#199601

main83420-AA010iST19#199610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iET196,ST198199805

main83530-30090iAT191,ET196,ST19#199211-199805

sub83530-60020

main83530-30100iCT19#199211-199803

sub83530-60010

main83530-60010iCT19#199803

main83530-60020iET196,ST198199805

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT191,CT19#,ET196,ST190,195..5F199211

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT191..4FC199601-199708

main84540-12210iAT191..4FC199601-199708

MATUSITA

main84540-16040iCT190,196,ET196,ST190,191..ATM199211-199601

main84540-16050iCT190,196,197,ET196,ST191..ATM199601-199908

main84540-20200iST195,198..4FC199211-200206

main84540-52010iCT197,ET196..ATM199908-200206

88620CTHERMO SWITCH ASSY

main88620-12070iCT198;CT196..4FC199601-199805

main88620-20100iCT198;CT190,196..4FC;ET196..3FC..UX199211-199501

main88620-20100iET196..3FC..UX199501-199601

main88620-20140iET196..3FC..UX199402-199501

main88620-20140iCT198;CT196..4FC;ET196..3FC..(U,UL)199501-199601

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20210iST190,195..CZ,FZ,TZ199211-199708

sub89425-20290

main89425-21010iST195..TZG199502-199708

sub89425-20210

main89425-29635iST191199211-199601

sub89425-29645

main89425-29735iET196199211-199601

main89425-80035iAT191,ST191199601-199708

main89425-80036iET196199601-199708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10120iET196199708

main89428-12160iET196199211-199601

main89428-12160iAT191,ET196199601-199708

main89428-20110iCT197,199;CT190..4FC199601

main89428-33010iCT190,198..5F;CT196,ST195..TZG,U,UL,UX199211-199805

89465SENSOR, OXYGEN

main89465-10020iET196199211-199601

main89465-12360iET196199601-199708

main89465-12400iAT191199601-199708

main89465-20270iST190,195,198..CZ,FZ,TZ,U,UL,UX199211

main89465-20280iST191199211-199708

main89465-29885iST195..TZG199502-199708

main89465-33180iET196199708

89615SENSOR, KNOCK CONTROL

main89615-12030iAT191199601-199708

sub89615-22050

main89615-20030iST19#..CZ,FZ,TZ,U,UL,UX199211-199910

sub89615-32040

main89615-20060iST195..TZG199502-199708

main89615-22030iAT191,ET196199601-199909

MATUSITA

main89615-22040iET196199708-199909

main89615-32030iST198199910

main89615-32040iST198199910

sub89615-32030

main89615-33020iST19#..CZ,FZ,TZ,U,UL,UX199211-199910

sub89615-32030

main89615-52010iET196199909

827111E050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E050

9011906521

main90119-06521

9043008252

main90430-08252

9043018008

main90430-18008

9163560616

main91635-60616

9165140620

main91651-40620

9165160616

main91651-60616

16 parts on this diagram · 14 diagrams in section
