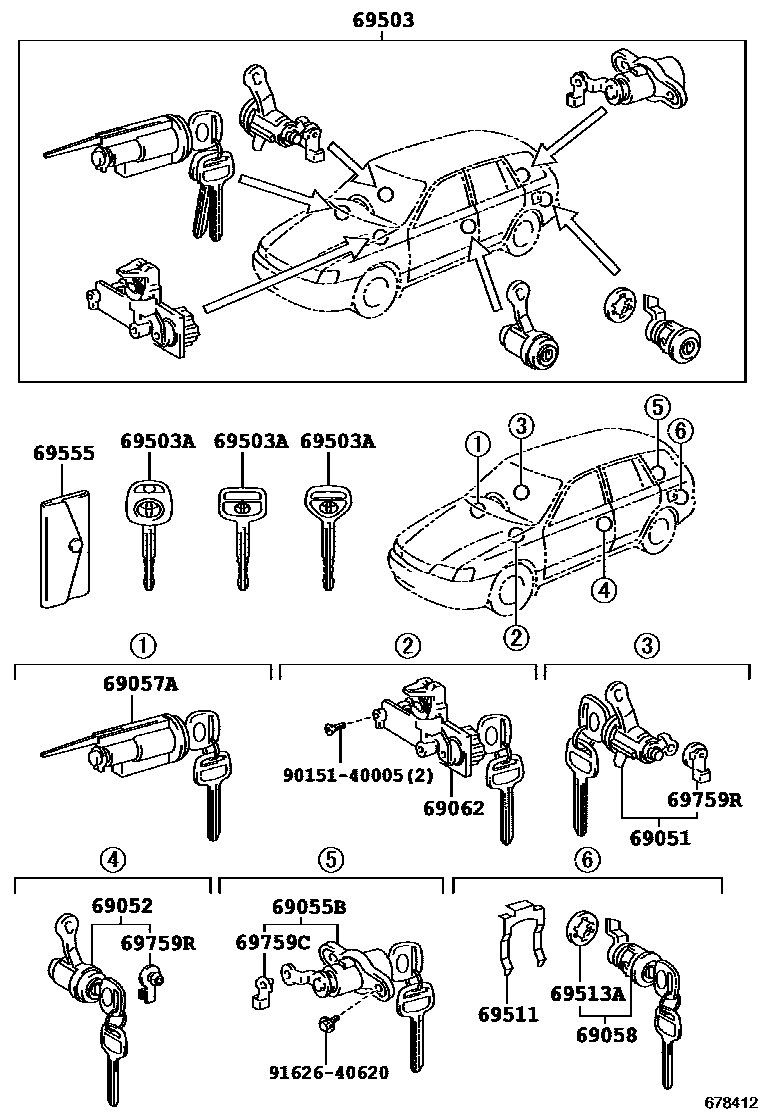

LOCK CYLINDER SET

0001 1 0002 1��(����� ������)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-21070iAT191,CT19#,ET196,ST19#¥4,010199211

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-21070iAT191,CT19#,ET196,ST19#¥4,010199211

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-21020iCT19#,ET196,ST19#¥3,350199211-199601

sub69055-13210¥5,300

main69055-21021iAT191,CT190,ST19#¥4,000199601-199708

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-21020iCT19#,ET196,ST19#¥7,100199211-199601

sub69057-20320¥7,100

main69057-21021iAT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX¥7,100199601

main69057-21030iST19#..TZ,TZG¥7,100199601-199708

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-21020iCT196,197,198,199,ET196,ST198..U¥3,350199211

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-21030iCT19#,ET196,ST19#¥6,700199211-199601

sub69056-20260¥6,400

69503CYLINDER SET, LOCK

main69005-21060iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX¥21,200199211-199601

sub69005-21100¥21,200

main69005-21061iAT191,CT190,ST19#..CZ,FZ¥16,000199601-199708

main69005-21080iCT196,198,ET196..U¥23,800199211-199601

main69005-21081iCT196,198,ET196..U¥18,400199601-199805

sub69005-21082¥18,400

main69005-21082iCT19#,ET196,ST198..U¥18,400199805

main69005-21101iST19#..TZ,TZG¥16,000199601-199708

main69005-21120iCT196,198,ET196..UL,UX¥16,100199601-199805

sub69005-21121¥16,100

main69005-21121iCT19#,ET196,ST198..UL,UX¥16,100199805

69503AKEY, BLANK

main90999-00192iCT19#,ET196,ST19#¥2,060199211-199601

main90999-00193iAT191,CT19#,ET196,ST19#¥2,570199211-199601

main90999-00208iCT19#,ET196,ST19#¥2,060199211-199601

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iCT196,197,198,199,ET196,ST198..U¥160199211

69513APAD, DOOR CYLINDER

main69513-87001iCT196,197,198,199,ET196,ST198..U¥350199211

sub69513-32010¥120

69555COVER, KEY

main69555-17020iCT19#,ET196,ST19#¥810199211-199601

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090iAT191,CT19#,ET196,ST19#¥180199211

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAT191,CT19#,ET196,ST19#¥240199211

main69759-12090iAT191,CT19#,ET196,ST19#¥240199211

9015140005

main90151-40005¥90

9162640620

main91626-40620¥190

15 parts on this diagram · 2 diagrams in section
