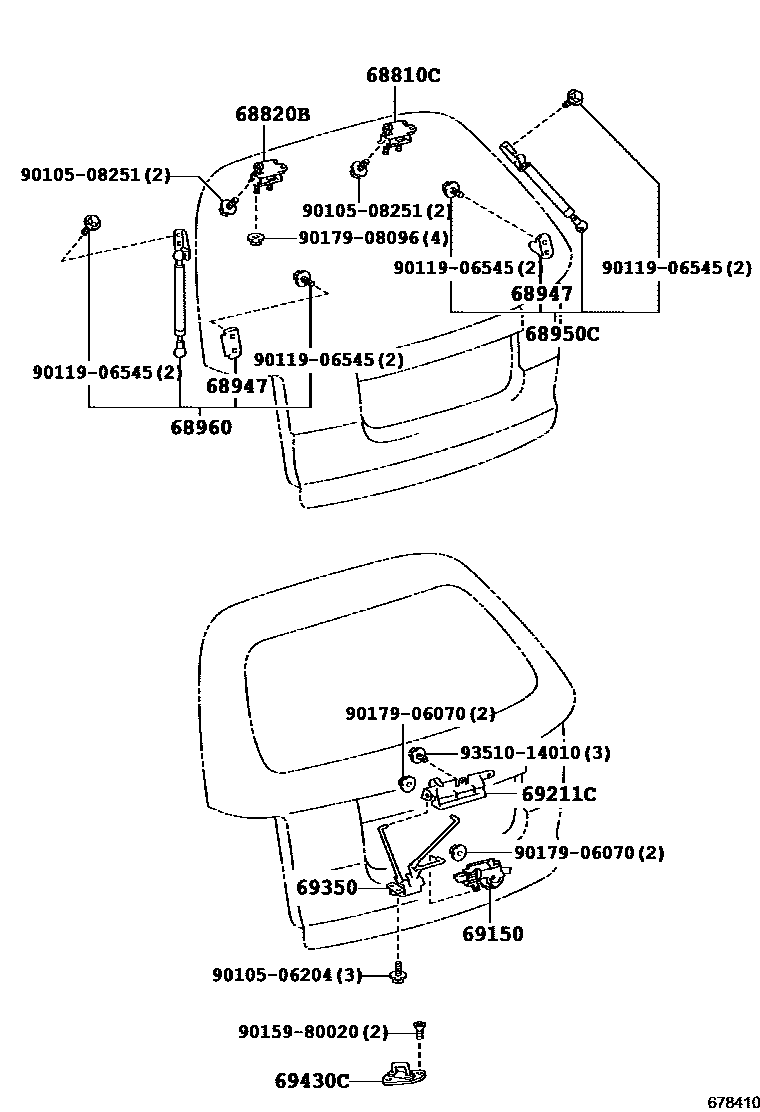

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68810CHINGE ASSY, BACK DOOR, RH

main68810-21040iAT191,CT19#,ET196,ST19#199211

68820BHINGE ASSY, BACK DOOR, LH

main68810-21040iAT191,CT19#,ET196,ST19#199211

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-21010iCT19#,ET196,ST19#199211-199302

sub68947-21011

main68947-21011iAT191,CT19#,ET196,ST19#199302

68950CSTAY ASSY, BACK DOOR, RH

main68950-80021iCT196,198,ET196..U199211-199302

sub68950-80037

main68950-80022iCT196,198,ET196..UL,UX199211-199302

sub68950-80038

main68950-80023iCT190,ST19#199211-199302

sub68950-80039

main68950-80037iCT196,198,ET196..U199302-199708

sub68950-80066

main68950-80038iCT196,198,ET196..UL,UX199302-199708

sub68950-80065

main68950-80039iAT191,CT190,ST19#199302-199708

sub68950-80063

main68950-80042iST195..TZG199610-199708

sub68950-80064

main68950-80042iST195..TZG199605-199609

sub68950-80064

main68950-80042iST195..TZG199605-199609

sub68950-80064

main68950-80042iST191,195199501-199708

sub68950-80064

main68950-80042iST195..TZG199610-199708

sub68950-80064

main68950-80061iCT196,198,ET196..U199708

main68950-80061iCT196,198,ET196..U199708

main68950-80062iCT19#,ET196,ST198..U199708

68960STAY ASSY, BACK DOOR, LH

main68960-29865iCT196,198,ET196..U199211-199302

sub68960-29866

main68960-29866iCT196,198,ET196..U199302-199708

sub68960-80018

main68960-29875iCT196,198,ET196..UL,UX199211-199302

sub68960-29876

main68960-29876iCT196,198,ET196..U199302-199708

sub68960-80017

main68960-29885iCT190,ST19#199211-199302

sub68960-29886

main68960-29886iAT191,CT190,ST19#199302-199708

sub68960-80015

main68960-80008iST195..TZG199610-199708

sub68960-80016

main68960-80008iST19#..TZ199610-199708

sub68960-80016

main68960-80008iST19#..TZ199605-199609

sub68960-80016

main68960-80008iST195..TZG199605-199609

sub68960-80016

main68960-80008iST191,195199501-199708

sub68960-80016

main68960-80013iCT196,198,ET196..U199708

main68960-80013iCT196,198,ET196..U199708

main68960-80014iCT19#,ET196,ST198..U199708

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-21010iST19#..TZ,TZG199211-199601

main69150-21020iCT19#,ET196,ST19#..CZ,FZ,UL,UX199211-199601

69211CHANDLE, BACK DOOR OUTSIDE

main69023-21010iAT191,CT190,ST19#199211-199708

main69023-21020iCT196,197,198,199,ET196,ST198199211

69350LOCK ASSY, BACK DOOR

main69350-21040iCT190,ST19#199211-199601

main69350-21041iAT191,CT190,ST19#199601-199708

main69350-21070iCT196,197,198,199,ET196,ST198..U199211

main69350-21080iCT196,197,198,199,ET196,ST198..UL,UX199211

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-13010iAT191,CT19#,ET196,ST19#199211

9010506204

main90105-06204

9010508251

main90105-08251

9011906545

main90119-06545

9015980020

main90159-80020

9017906070

main90179-06070

9017908096

main90179-08096

9351014010

main93510-14010

16 parts on this diagram · 2 diagrams in section
