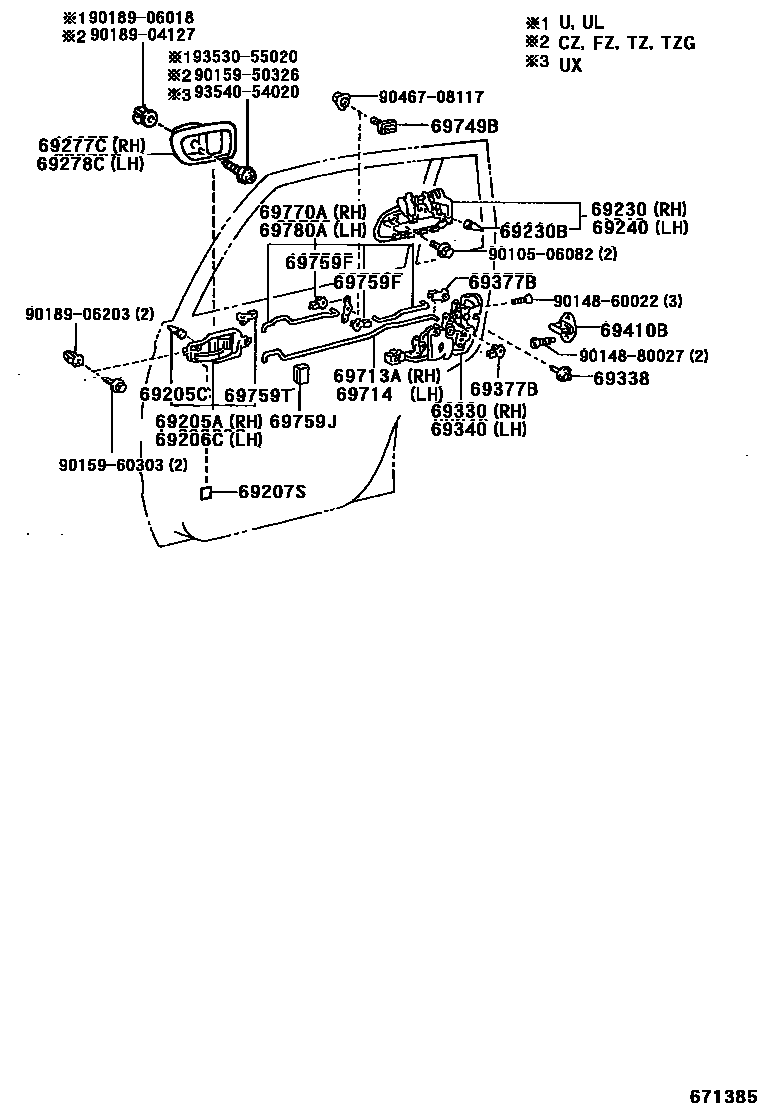

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20110-B0iCT19#,ET196,ST19#199402-199601

SHADOW GRAY,TRIM1#

sub69205-20110

main69205-20110-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub69205-20110

main69205-20140-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

sub69205-20140

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iAT191,CT19#,ET196,ST19#199211

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20110-B0iCT196,197,198,199,ET196,ST198..U,UL199402-199601

SHADOW GRAY,TRIM1#

sub69206-20110

main69206-20110-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub69206-20110

main69206-20140-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

sub69206-20140

69207SCOVER(FOR REAR DOOR INSIDE HANDLE)

main90950-06031iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20210iCT196,197,198,199,ET196,ST198199211-199912

sub69230-21040

main69230-20220-A0iCT190,ST19#199211-199601

SUPER WHITE 2,040

main69230-20220-B1iCT190,ST19#199402-199601

LT.GRAIGE ME,1A2

main69230-20220-B2iAT191,CT190,ST19#199601-199708

BLUISH SILVER ME.,1A0

main69230-20220-B3iST191,195..TZ199508-199601

main69230-20220-C0iAT191..FZ199610-199708

main69230-20220-C0iST191,195..TZ199409-199412

main69230-20220-C0iAT191,CT190,ST19#..CZ,TZ,TZG199211-199708

BLACK ME,26V

main69230-20220-D1iCT190,ST19#199211-199402

DARK WINE MICA M,3K1

main69230-20220-D2iST191,195..TZ199402-199407

main69230-20220-D5iAT191,CT190,ST19#199402-199708

MAGENTA MC,3L3

main69230-20220-E1iCT190,ST19#199211-199402

LIGHT BEIGE ME,4M3

main69230-20220-G0iCT190,ST19#199211-199601

DK.GRAYISH OLIVE ME,6M7

main69230-20220-G2iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

DK.GREEN M.M.,2BL

main69230-20220-H0iST191,195..TZ199405-199412

main69230-20220-H0iCT190,ST19#..CZ,TZ,TZG199211-199601

DARK TORQUOISE MICA,25V

main69230-20220-J2iCT190,ST19#..CZ,TZ,TZG199501-199601

DK.BLUE MM,23V

main69230-20220-J3iAT191,CT190..FZ199601-199708

DK.BLUE M.M.,2BM ,8L3

main69230-20220-J3iAT191,CT190..FZ199601-199708

DK.BLUE M.M.,8L3

main69230-21040iCT19#,ET196,ST198199912

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iAT191,CT19#,ET196,ST19#199211

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20210iCT196,197,198,199,ET196,ST198199211-199912

sub69240-21040

main69240-20220-A0iCT190,ST19#199211-199601

SUPER WHITE 2,040

main69240-20220-B1iCT190,ST19#199402-199601

LT.GRAIGE ME,1A2

main69240-20220-B2iAT191,CT190,ST19#199601-199708

BLUISH SILVER ME.,1A0

main69240-20220-B3iST191,195..TZ199508-199601

main69240-20220-C0iAT191..FZ199610-199708

main69240-20220-C0iST191,195..TZ199409-199412

main69240-20220-C0iAT191,CT190,ST19#..CZ,TZ,TZG199211-199708

BLACK ME,26V

main69240-20220-D1iCT190,ST19#199211-199402

DARK WINE MICA M,3K1

main69240-20220-D2iST191,195..TZ199402-199407

main69240-20220-D5iAT191,CT190,ST19#199402-199708

MAGENTA MC,3L3

main69240-20220-E1iCT190,ST19#199211-199402

LIGHT BEIGE ME,4M3

main69240-20220-G0iCT190,ST19#199211-199601

DK.GRAYISH OLIVE ME,6M7

main69240-20220-G2iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

DK.GREEN M.M.,2BL

main69240-20220-H0iCT190,ST19#..CZ,TZ,TZG199211-199601

DARK TORQUOISE MICA,25V

main69240-20220-H0iST191,195..TZ199405-199412

main69240-20220-J2iCT190,ST19#..CZ,TZ,TZG199501-199601

DK.BLUE MM,23V

main69240-20220-J3iAT191,CT190..FZ199601-199708

DK.BLUE M.M.,2BM ,8L3

main69240-20220-J3iAT191,CT190..FZ199601-199708

DK.BLUE M.M.,8L3

main69240-21040iCT19#,ET196,ST198199912

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-21010-B0iCT196,197,198,199,ET196,ST198..U,UL199402

SHADOW GRAY,TRIM1#

main69277-21010-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

main69277-32070-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

sub69277-32070

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-21010-B0iCT196,197,198,199,ET196,ST198..U,UL199402

SHADOW GRAY,TRIM1#

main69278-21010-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

main69278-32060-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

69330LOCK ASSY, REAR DOOR, RH

main69305-20020iCT196,197,198,199,ET196,ST198..U,UL199211

main69305-20030iST19#..TZ,TZG199211-199601

main69305-20040iCT190,196,ET196,ST19#..CZ,FZ,UX199211-199601

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-32010iAT191,CT19#,ET196,ST19#199211

69340LOCK ASSY, REAR DOOR, LH

main69306-20020iCT196,197,198,199,ET196,ST198..U,UL199211

main69306-20030iST19#..TZ,TZG199211-199601

main69306-20040iCT190,196,ET196,ST19#..CZ,FZ,UX199211-199601

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-24050iCT19#,ET196,ST19#199211-199601

main69759-24060iCT19#,ET196,ST19#199211-199601

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAT191,CT19#,ET196,ST19#199211

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-20140iAT191,CT19#,ET196,ST19#199211

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-20140iAT191,CT19#,ET196,ST19#199211

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030iAT191,CT19#,ET196,ST19#199211

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20380iAT191,CT19#,ET196,ST19#199211

main69759-24030iAT191,CT19#,ET196,ST19#199211

69759JSILENCER, DOOR LOCK LINK

main69759-12060iAT191,CT19#,ET196,ST19#199211

68 X 40 X 10

main69759-20390iAT191,CT19#,ET196,ST19#199211

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iAT191,CT19#,ET196,ST19#199211

main69759-24070iAT191,CT19#,ET196,ST19#199211

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-20090iAT191,CT19#,ET196,ST19#199211

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-20090iAT191,CT19#,ET196,ST19#199211

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9015950326

main90159-50326

9015960303

main90159-60303

9018904127

main90189-04127

9018906018

main90189-06018

9018906203

main90189-06203

9046708117

main90467-08117

9353055020

main93530-55020

9354054020

main93540-54020

33 parts on this diagram · 1 diagram in section
