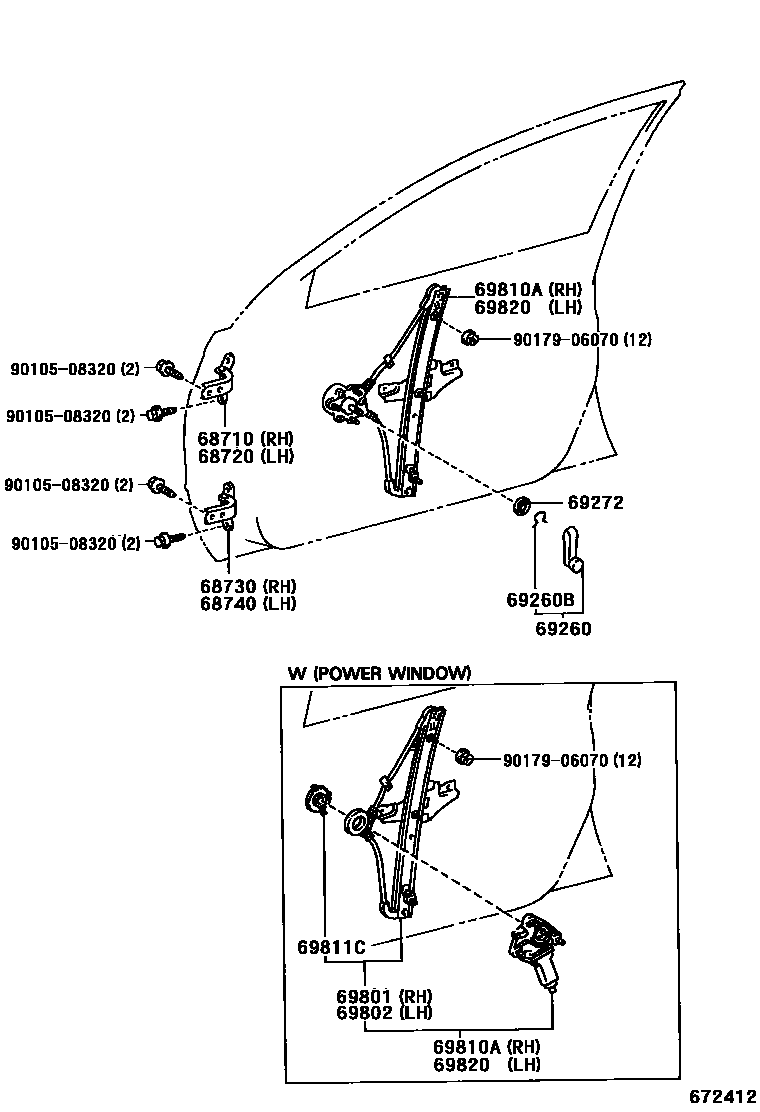

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iCT19#,ET196,ST19#199211-199510

sub68710-12150

main68710-12150iAT191,CT19#,ET196,ST19#199510

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iCT19#,ET196,ST19#199211-199510

sub68720-12150

main68720-12150iAT191,CT19#,ET196,ST19#199510

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iCT19#,ET196,ST19#199211-199510

sub68730-12110

main68730-12110iAT191,CT19#,ET196,ST19#199510

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iCT19#,ET196,ST19#199211-199510

sub68740-12110

main68740-12110iAT191,CT19#,ET196,ST19#199510

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B1iCT196,197,198,199,ET196,ST198..U199402

SHADOW GRAY,TRIM1#

sub69260-20090

main69260-20090-C0iCT196,198,ET196..U199211-199402

BLACK,TRIM2#

sub69260-20090

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCT196,198,ET196..U199211-199601

main90520-01274iCT196,197,198,199,ET196,ST198..U199601

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCT196,198,ET196..U199211-199402

NATURAL WHITE,TRIM2#

sub69285-22010

main69285-22010-08iCT196,197,198,199,ET196,ST198..U199402

NATURAL WHITE,TRIM1#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20210iCT19#,ET196,ST198..UL199211-199708

main69801-21010iCT196,197,ET196,ST198..UX199708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20230iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20270iCT196,197,198,199,ET196,ST198..U199211

main69810-20280iCT19#,ET196,ST198..UL199211-199708

main69810-21020iCT196,197,ET196,ST198..UX199708

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-42010iCT196,197,ET196,ST198..UX199708

main69813-32010iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199505

main69813-32040iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199505-199708

main69814-32010iCT19#,ET196,ST198..UL199505-199708

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20290iCT196,197,198,199,ET196,ST198..U199211

main69820-20300iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211

9010508320

main90105-08320

9017906070

main90179-06070

14 parts on this diagram · 1 diagram in section
