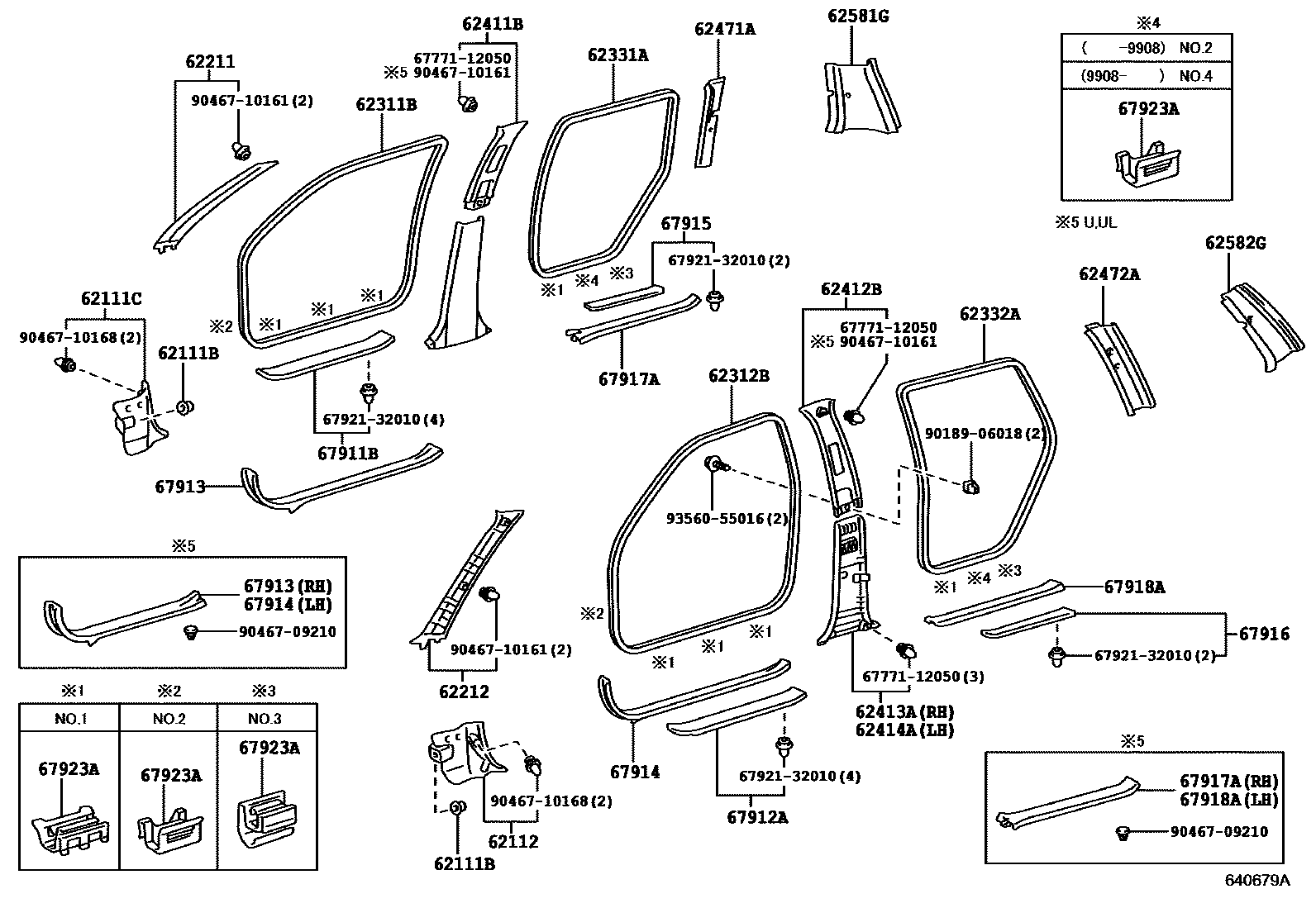

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06074iAT191,CT19#,ET196,ST19#199211

PLANT.NO.C21-24

main90467-06094iAT191,CT19#,ET196,ST19#199211

PLANT.NO.A41

62111CBOARD, COWL SIDE TRIM, RH

main62111-20260-B0iCT19#,ET196,ST19#199402-199601

SHADOW GRAY,TRIM1#

sub62111-20260

main62111-20260-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62111-20260

main62111-21010-B0iAT191,CT190,ST19#199601-199708

SHADOW GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-20270-B0iCT190,ST19#199402-199501

SHADOW GRAY,TRIM1#

sub62112-20270

main62112-20270-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

sub62112-20270

main62112-20290-B0iCT196,198,ET196199402-199601

SHADOW GRAY,TRIM1#

sub62112-20290

main62112-20290-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

sub62112-20290

main62112-21010-B0iAT191,CT190,ST19#199601-199708

SHADOW GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-20230-B1iCT19#,ET196,ST19#199211-199402

GRAY,TRIM2#

sub62211-20230

main62211-20230-B1iCT19#,ET196,ST19#199402-199601

GRAY,TRIM1#

sub62211-20230

main62211-21020-B0iAT191,CT19#,ET196,ST19#199601

MD.GRAY,TRIM1#

sub62211-21020

62212GARNISH, FRONT PILLAR, LH

main62212-20230-B1iCT19#,ET196,ST19#199211-199402

GRAY,TRIM2#

sub62212-20230

main62212-20230-B1iCT19#,ET196,ST19#199402-199601

GRAY,TRIM1#

sub62212-20230

main62212-21020-B0iAT191,CT19#,ET196,ST19#199601

MD.GRAY,TRIM1#

sub62212-21020

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-20120-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62311-20100

main62311-20120-C0iCT19#,ET196,ST19#199402-199601

BLACK,TRIM1#

sub62311-20100

main62311-21020-C0iAT191,CT19#,ET196,ST19#199601-199609

BLACK,TRIM1#

sub62311-21021

main62311-21021-C0iAT191,CT19#,ET196,ST19#199609-199909

BLACK,TRIM1#

sub62311-21022

main62311-21022-C0iCT19#,ET196,ST198199909

BLACK,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-20120-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62312-20100

main62312-20120-C0iCT19#,ET196,ST19#199402-199601

BLACK,TRIM1#

sub62312-20100

main62312-21020-C0iAT191,CT19#,ET196,ST19#199601-199609

BLACK,TRIM1#

sub62312-21021

main62312-21021-C0iAT191,CT19#,ET196,ST19#199609-199909

BLACK,TRIM1#

sub62312-21022

main62312-21022-C0iCT19#,ET196,ST198199909

BLACK,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-21030-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62331-21031

main62331-21030-C0iAT191,CT19#,ET196,ST19#199402-199609

BLACK,TRIM1#

sub62331-21031

main62331-21031-C0iAT191,CT19#,ET196,ST19#199609-199909

BLACK,TRIM1#

sub62331-21032

main62331-21032-C0iCT19#,ET196,ST198199909

BLACK,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-21030-C0iAT191,CT19#,ET196,ST19#199402-199609

BLACK,TRIM1#

sub62332-21031

main62332-21030-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62332-21031

main62332-21031-C0iAT191,CT19#,ET196,ST19#199609-199909

BLACK,TRIM1#

sub62332-21032

main62332-21032-C0iCT19#,ET196,ST198199909

BLACK,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-20290-B1iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402

GRAY,TRIM1#

sub62411-20290

main62411-20290-B1iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

GRAY,TRIM2#

sub62411-20290

main62411-21010-B0iCT196,197,198,199,ET196,ST198..U,UL199402

GRAY,TRIM1#

main62411-21010-B0iCT196,198,ET196..U,UL199211-199402

GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-20290-B1iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

GRAY,TRIM2#

main62412-20290-B1iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402

GRAY,TRIM1#

main62412-21010-B0iCT196,198,ET196..U,UL199211-199402

GRAY,TRIM2#

main62412-21010-B0iCT196,197,198,199,ET196,ST198..U,UL199402

GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-20160-B0iAT191,CT19#,ET196,ST19#199411-199802

SHADOW GRAY,TRIM1#

sub62413-20230

main62413-20170-B0iCT19#,ET196,ST19#199402-199411

SHADOW GRAY,TRIM1#

sub62413-20160

main62413-20170-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62413-20160

main62413-20230-B0iCT19#,ET196,ST198199802

SHADOW GRAY,TRIM1#

sub62413-20230

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-20140-B0iCT19#,ET196,ST19#199402-199411

SHADOW GRAY,TRIM1#

sub62414-20170

main62414-20140-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub62414-20170

main62414-20170-B0iAT191,CT19#,ET196,ST19#199411-199802

SHADOW GRAY,TRIM1#

sub62414-20210

main62414-20210-B0iCT19#,ET196,ST198199802

SHADOW GRAY,TRIM1#

sub62414-20210

62471AGARNISH, ROOF SIDE, INNER RH

main62471-21010-B0iAT191,CT190,ST19#199402-199708

GRAY,TRIM1#

main62471-21010-B0iCT190,ST19#199211-199402

GRAY,TRIM2#

main62471-21030-B0iCT196,ET196..UX199211-199402

GRAY,TRIM2#

main62471-21030-B0iCT196,197,ET196,ST198..UX199402

GRAY,TRIM1#

main62471-21040-B0iCT196,197,ET196,ST198..UX199402

sub62471-21030

main62471-21040-B0iCT196,ET196..UX199211-199402

sub62471-21030

62472AGARNISH, ROOF SIDE, INNER LH

main62472-21010-B0iAT191,CT190,ST19#199402-199708

GRAY,TRIM1#

main62472-21010-B0iCT190,ST19#199211-199402

GRAY,TRIM2#

main62472-21030-B0iCT196,197,ET196,ST198..UX199402

GRAY,TRIM1#

main62472-21030-B0iCT196,ET196..UX199211-199402

GRAY,TRIM2#

main62472-21040-B0iCT196,ET196..UX199211-199402

sub62472-21030

main62472-21040-B0iCT196,197,ET196,ST198..UX199402

sub62472-21030

62581GCOVER, QUARTER PILLAR, RH

main62581-21010-B0iCT196,ET196..UX199211-199402

GRAY,TRIM2#

main62581-21010-B0iCT196,197,ET196,ST198..UX199402

GRAY,TRIM1#

62582GCOVER, QUARTER PILLAR, LH

main62582-21010-B0iCT196,ET196..UX199211-199402

GRAY,TRIM2#

main62582-21010-B0iCT196,197,ET196,ST198..UX199402

GRAY,TRIM1#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-20040-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

sub67911-20040

main67911-20040-C0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402

BLACK,TRIM1#

sub67911-20040

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-20040-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

sub67912-20040

main67912-20040-C0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402

BLACK,TRIM1#

sub67912-20040

67913PLATE, FRONT DOOR SCUFF, RH

main67913-20190-B0iAT191,CT19#,ET196,ST19#199402

SHADOW GRAY,TRIM1#

sub67913-20191

sub67913-20190

main67913-20190-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub67913-20191

sub67913-20190

67914PLATE, FRONT DOOR SCUFF, LH

main67914-20150-B0iAT191,CT19#,ET196,ST19#199402

SHADOW GRAY,TRIM1#

sub67914-20150

main67914-20150-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub67914-20150

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-20030-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

sub67915-20030

main67915-20030-C0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402

BLACK,TRIM1#

sub67915-20030

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-20030-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

main67916-20030-C0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402

BLACK,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-20170-B0iAT191,CT19#,ET196,ST19#199402

SHADOW GRAY,TRIM1#

sub67917-20170

main67917-20170-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub67917-20170

67918APLATE, REAR DOOR SCUFF, LH

main67918-20130-B0iAT191,CT19#,ET196,ST19#199402

SHADOW GRAY,TRIM1#

sub67918-20130

main67918-20130-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

sub67918-20130

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20030iCT19#,ET196,ST19#199211-199308

main67923-20030iCT19#,ET196,ST19#199308-199507

N0.1

main67923-20050iAT191,CT19#,ET196,ST19#199507

main67924-20030iCT19#,ET196,ST19#199211-199908

main67924-20040iAT191,CT19#,ET196,ST19#199211

main67924-21020iCT19#,ET196,ST198199908

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9018906018

main90189-06018

9046709210

main90467-09210

9046710161

main90467-10161

9046710168

main90467-10168

9356055016

main93560-55016

33 parts on this diagram · 2 diagrams in section
