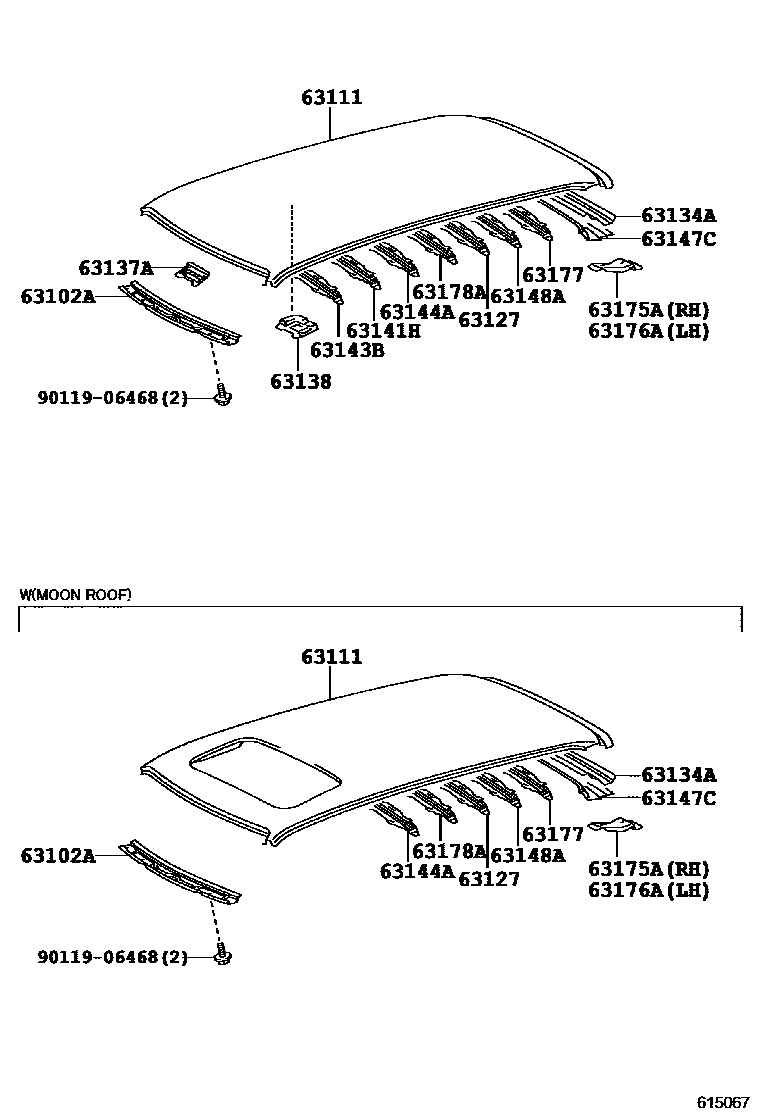

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��������� 0003 1����� 0004 1 0005 1��������- 0006 1����� 0007 1 0008 1�����

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20230iST19#199601-199708

main63102-20240iCT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI)199211-199708

main63102-21010iST191,195..TZ199302-199306

63111PANEL, ROOF

main63014-21010iCT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI)199211-199708

main63111-21020iCT196,197,198,199,ET196,ST198199211

main63111-21040iAT191,CT190,ST19#199211-199708

main63111-21080iST191,195..TZ199302-199306

main63111-21090iST19#199601-199708

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-21010iAT191,CT19#,ET196,ST19#199211

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-21010iAT191,CT19#,ET196,ST19#199211

63137ABRACKET, DOME LAMP, NO.1

main63137-20090iCT190,ST19#..CZ,TZ199211-199502

63138BRACKET, DOME LAMP, NO.2

main63138-20030iST19#..TZ199211-199502

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20150iCT19#,ET196,ST19#199211-199601

main63141-21010iST191,195..TZ199302-199306

main63141-21020iST19#199601-199704

main63141-21021iST19#199704-199708

main63141-21030iAT191,CT19#,ET196,ST19#199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-20100iCT19#,ET196,ST19#199211-199601

main63143-21020iST191,195199306-199312

main63143-21030iAT191,CT19#,ET196,ST19#199601

main63143-21050iST19#199601-199708

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-21010iAT191,CT19#,ET196,ST19#199211

main63144-21020iST19#199601-199604

63147CREINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER

main63147-21010iAT191,CT19#,ET196,ST19#199211

main63147-21020iST19#199601-199604

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-21010iAT191,CT19#,ET196,ST19#199211

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-21010iAT191,CT19#,ET196,ST19#199211

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-21010iAT191,CT19#,ET196,ST19#199211

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-21010iAT191,CT19#,ET196,ST19#199211

63178AREINFORCEMENT, ROOF PANEL, NO.10

main63178-21010iAT191,CT19#,ET196,ST19#199211

9011906468

main90119-06468

16 parts on this diagram · 8 diagrams in section
