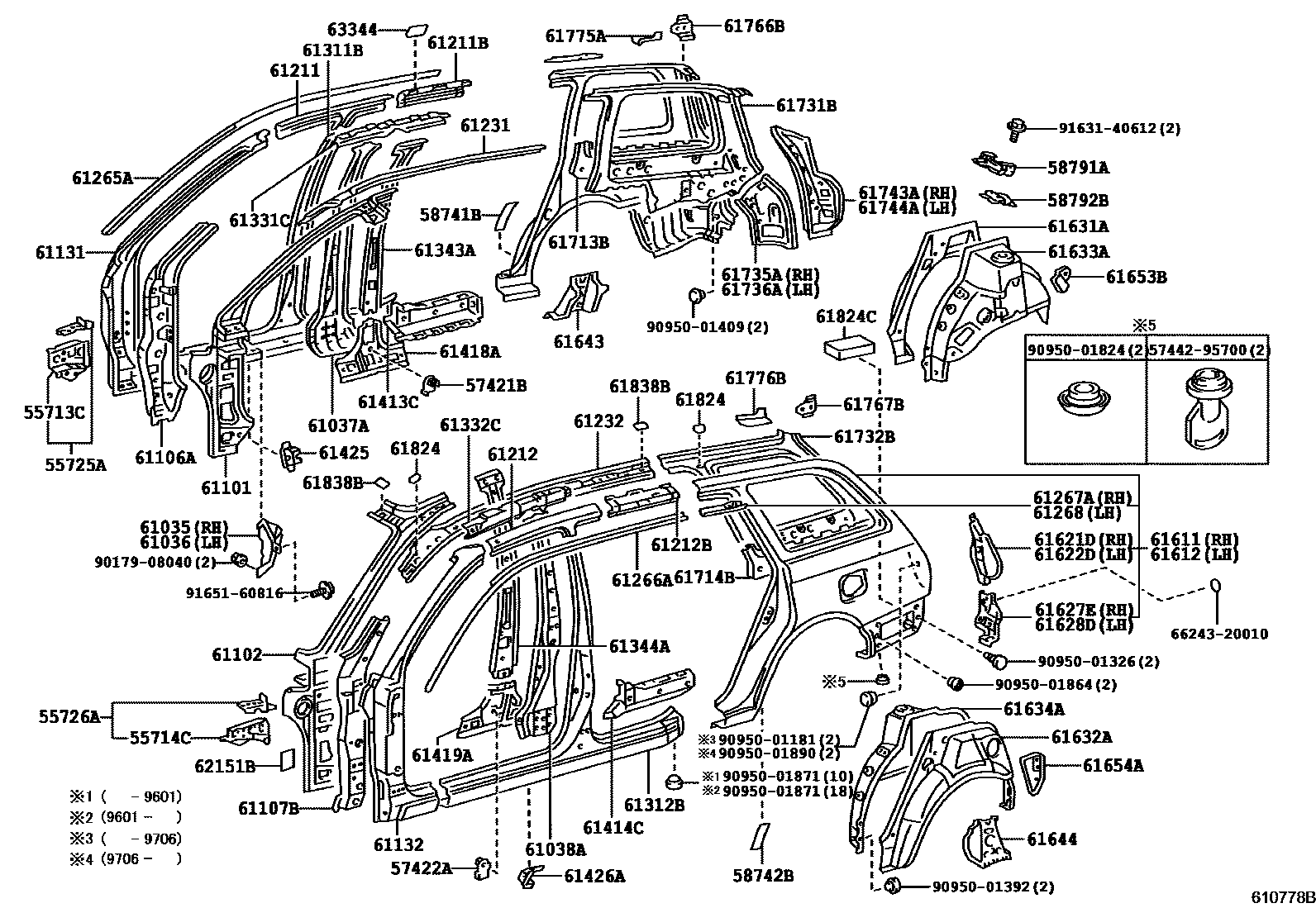

SIDE MEMBER

0001 1 0002 1

55713CPANEL, COWL TOP SIDE, RH

main55713-20130iAT191,CT19#,ET196,ST19#199211

55714CPANEL, COWL TOP SIDE, LH

main55714-20140iAT191,CT19#,ET196,ST19#199211

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-20900iAT191,CT19#,ET196,ST19#199211

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-20900iAT191,CT19#,ET196,ST19#199211

57421BPLATE, FLOOR SIDE RAIL, RH

main57421-20040iAT191,CT19#,ET196,ST19#199211

57422APLATE, FLOOR SIDE RAIL, LH

main57421-20040iAT191,CT19#,ET196,ST19#199211

58741BPROTECTOR, QUARTER PANEL, RH

main58741-20120iAT191,CT190,ST19#199601-199708

58742BPROTECTOR, QUARTER PANEL, LH

main58742-20110iAT191,CT190,ST19#199601-199708

58791ACARRIER, JACK

main58791-20100iAT191,CT190,ST19#199211-199708

main58791-95500iCT196,197,198,199,ET196,ST198199211

58792BSUPPORT, JACK CARRIER

main58792-20040iAT191,CT19#,ET196,ST19#199211

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main55774-20090iCT19#,ET196,ST19#199211-199601

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main55775-20070iCT19#,ET196,ST19#199211-199601

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-20010iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211-199601

main61037-21010iCT196,198,ET196..U,UL199211-199601

main61037-21020iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601-199908

main61037-21030iCT196,197,198,199,ET196..U,UL199601-199908

main61037-21060iCT197,ET196,ST198..UX199908

main61037-21070iCT19#,ET196,ST198..U,UL199908

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-20010iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211-199601

main61038-21010iCT196,198,ET196..U,UL199211-199601

main61038-21020iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601-199908

main61038-21030iCT196,197,198,199,ET196..U,UL199601-199908

main61038-21060iCT197,ET196,ST198..UX199908

main61038-21070iCT19#,ET196,ST198..U,UL199908

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-21900iCT19#,ET196,ST19#199211-199601

main61101-21904iAT191,CT190,196,198,ET196,ST191,195199601

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-21900iCT19#,ET196,ST19#199211-199601

sub61102-21901

main61102-21904iAT191,CT190,196,198,ET196,ST191,195199601

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-20150iCT19#,ET196,ST19#199211-199410

sub61106-20240

main61106-20150iST191,195..CZ,TZ199501-199601

sub61106-20240

main61106-20240iCT19#,ET196,ST19#199410-199601

main61106-21010iAT191,CT19#,ET196,ST19#199601

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-20150iST191,195..CZ,TZ199501-199601

sub61107-20230

main61107-20150iCT19#,ET196,ST19#199211-199410

sub61107-20230

main61107-20230iCT19#,ET196,ST19#199410-199601

main61107-21010iAT191,CT19#,ET196,ST19#199601

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-20410iCT196,197,198,199,ET196,ST198199211

main61131-20420iAT191,CT190,ST19#199211-199708

main61131-21020iST191,195199501-199708

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-20370iAT191,CT19#,ET196,ST19#199211

main61132-21010iST191,195199501-199708

61211RAIL, ROOF SIDE, OUTER RH

main61211-20240iAT191,CT19#,ET196,ST19#199211

61211BRAIL, ROOF SIDE, OUTER REAR RH

main61211-21020iAT191,CT19#,ET196,ST19#199211

61212RAIL, ROOF SIDE, OUTER LH

main61212-20240iAT191,CT19#,ET196,ST19#199211

61212BRAIL, ROOF SIDE, OUTER REAR LH

main61212-21020iAT191,CT19#,ET196,ST19#199211

61231RAIL, ROOF SIDE, INNER RH

main61231-21050iCT196,198,ET196199211-199504

sub61231-21071

main61231-21060iCT190,ST19#199211-199504

sub61231-21071

main61231-21070iCT190,ST190..CZ,TZ199211-199504

sub61231-21071

main61231-21071iAT191,CT19#,ET196,ST19#199504-199904

main61231-21080iST19#199601-199708

main61231-21110iCT19#,ET196,ST198199904

61232RAIL, ROOF SIDE, INNER LH

main61232-21050iCT196,198,ET196199211-199504

sub61232-21071

main61232-21060iCT190,ST19#199211-199504

sub61232-21071

main61232-21070iST191,195..CZ;CT190,ST190..CZ,TZ199211-199504

sub61232-21071

main61232-21071iAT191,CT19#,ET196,ST19#199504-199904

main61232-21080iST19#199601-199708

main61232-21110iCT19#,ET196,ST198199904

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-21010iAT191,CT19#,ET196,ST19#199211

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-21010iAT191,CT19#,ET196,ST19#199211

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-21010iAT191,CT19#,ET196,ST19#199211

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-21010iAT191,CT19#,ET196,ST19#199211

61311BPILLAR, CENTER BODY, OUTER RH

main61311-20240iAT191,CT19#,ET196,ST19#199211

main61311-21010iST191,195199501-199708

61312BPILLAR, CENTER BODY, OUTER LH

main61312-20310iAT191,CT19#,ET196,ST19#199211

main61312-21010iST191,195199501-199708

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-20030iAT191,CT19#,ET196,ST19#199601

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-20030iAT191,CT19#,ET196,ST19#199601

61343APILLAR, CENTER BODY, INNER RH

main61343-20110iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199409

sub61343-20111

main61343-20111iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199409-199908

sub61343-21040

main61343-20150iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601-199808

main61343-21010iCT19#,ET196..U,UL199211-199908

sub61343-21050

main61343-21020iCT196,197,198,199,ET196..U,UL199601-199808

sub61343-21010

main61343-21040iCT197,ET196,ST198..UX199908

main61343-21050iCT19#,ET196,ST198..U,UL199908

61344APILLAR, CENTER BODY, INNER LH

main61344-20110iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199409

sub61344-20111

main61344-20111iCT197,ET196..UX199409-199908

sub61344-21040

main61344-20150iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601-199808

main61344-21010iCT196,198,ET196..U,UL199211-199908

sub61344-21050

main61344-21020iCT196,197,198,199,ET196..U,UL199601-199808

sub61344-21010

main61344-21040iCT197,ET196,ST198..UX199908

main61344-21050iCT19#,ET196,ST198..U,UL199908

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-21020iAT191,CT19#,ET196,ST19#199601-199908

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-21020iAT191,CT19#,ET196,ST19#199601-199908

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-20130iAT191,CT19#,ET196,ST19#199211

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-20110iAT191,CT19#,ET196,ST19#199211

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-21010iAT191,CT19#,ET196,ST19#199601

61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH

main61426-21010iAT191,CT19#,ET196,ST19#199601

61611PANEL, QUARTER, RH

main61601-21100iCT196,ET196199211-199601

sub61601-21150

main61601-21110iAT191,CT190,ST19#199211-199708

sub61601-21160

main61601-21120iCT198,199,ST198199211

main61601-21140iST191,195199501-199708

sub61601-21170

main61601-21150iCT196,197,ET196199601

61612PANEL, QUARTER, LH

main61602-21100iAT191,CT190,ST19#199211-199708

sub61602-21140

main61602-21110iCT198,199,ST198199211

main61602-21130iST191,195199501-199708

sub61602-21150

main61602-21140iCT196,197,ET196199601

61621DTROUGH, BACK DOOR OPENING, RH

main61621-21030iAT191,CT19#,ET196,ST19#199211

61622DTROUGH, BACK DOOR OPENING, LH

main61622-21030iAT191,CT19#,ET196,ST19#199211

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-21030iAT191,CT19#,ET196,ST19#199211

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-21030iAT191,CT19#,ET196,ST19#199211

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20260iAT191,CT190,ST19#199211-199708

main61631-21010iCT196,197,198,199,ET196,ST198199211

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20240iAT191,CT190,ST19#199211-199708

main61632-21010iCT196,197,198,199,ET196,ST198199211

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-21900iAT191,CT190,ST19#199211-199708

main61607-21030iCT196,197,198,199,ET196,ST198199211

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-21900iAT191,CT190,ST19#199211-199708

main61608-21030iCT196,197,198,199,ET196,ST198199211

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61643-20060iCT190,ST19#199211-199708

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61644-20050iCT190,ST19#199211-199708

61653BBRACKET, DECK SIDE TRIM

main61653-20080iCT190,ST19#199211-199601

main61653-21010iAT191,CT190,ST19#199601-199708

61654ABRACKET, DECK SIDE TRIM, NO.2

main61654-21010iAT191,CT190,ST19#199211-199708

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-21020iCT190,ST19#199211-199708

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-21020iCT190,ST19#199211-199708

61731BPANEL, ROOF SIDE, INNER RH

main61731-21070iCT196,197,198,199,ET196,ST198199211

main61731-21080iAT191,CT190,ST19#199211-199708

61732BPANEL, ROOF SIDE, INNER LH

main61732-21070iCT196,197,198,199,ET196,ST198199211

main61732-21080iAT191,CT190,ST19#199211-199708

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-21020iAT191,CT19#,ET196,ST19#199211

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-21020iAT191,CT19#,ET196,ST19#199211

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-21010iAT191,CT19#,ET196,ST19#199211

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-21010iAT191,CT19#,ET196,ST19#199211

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-21020iCT190,ST19#199211-199708

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-21010iCT190,ST19#199211-199708

61775AGUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH

main61775-21010iAT191,CT190,ST19#..CZ,TZ,TZG199211-199708

main61775-21010iST191,195..TZ199302-199306

61776BGUIDE, ROOF SIDE DRAIN HOSE, NO.1 LH

main61776-21010iST191..TZ;CT190,ST190,195..CZ,TZ199211-199306

main61776-21010iCT190,ST19#..CZ,TZ199306-199708

61824PLATE, NOISE CONTROL, NO.1

main61824-20120iCT19#,ET196,ST19#199211-199312

61824CPAD, NOISE SHUTTER, NO.1

main61824-21020iAT191,CT190,ST19#199601-199708

61838BPLATE, NOISE CONTROL, NO.5

main61838-20050iAT191,CT19#,ET196,ST19#199211-199312

62151BPAD, COWL SIDE SILENCER

main55783-20170iAT191,CT190,ST19#199601-199708

main62939-32020iCT19#,ET196,ST19#199211-199601

63344PAD, ROOF SILENCER, NO.4

main63344-20100iCT19#,ET196,ST19#..CZ,FZ,TZ,U,UL,UX199211-199601

5744295700PLUG, STEP PANEL HOLE

main57442-95700

6624320010PLATE, REAR FENDER SET

main66243-20010

9017908040

main90179-08040

9095001181

main90950-01181

9095001326

main90950-01326

9095001392

main90950-01392

9095001409

main90950-01409

9095001824

main90950-01824

9095001864

main90950-01864

9095001871

main90950-01871

9095001890

main90950-01890

9163140612

main91631-40612

9165160816

main91651-60816

86 parts on this diagram · 2 diagrams in section
