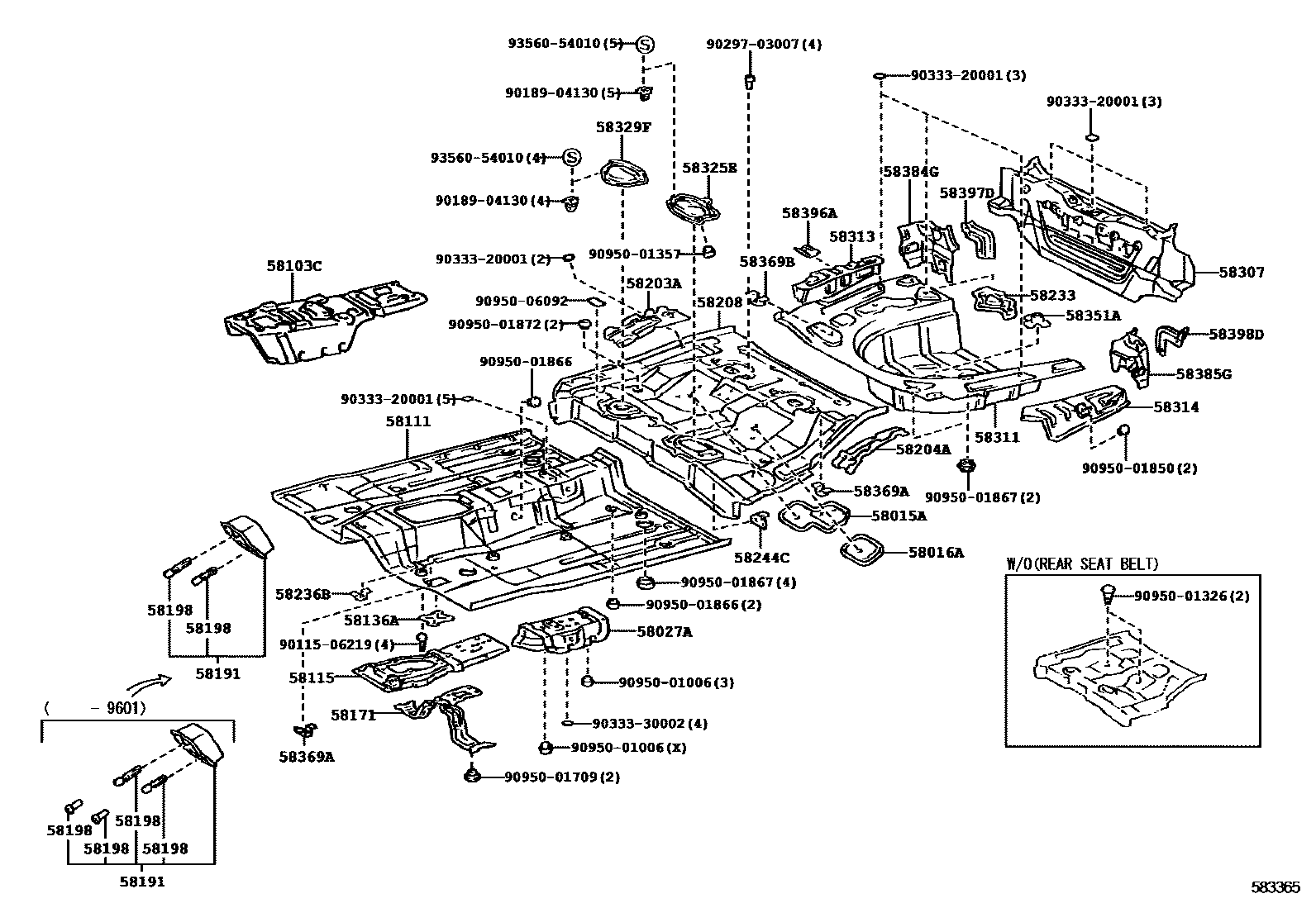

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-13020iCT196,197,198,199,ET196,ST198199211

main58015-32040iAT191,CT190,ST19#199211-199708

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-13010iCT196,197,198,199,ET196,ST198199211

main58016-20070iCT190,ST19#199305-199501

sub58016-20071

main58016-32030iCT190,ST19#199211-199305

sub58016-32031

main58016-32031iAT191,CT190,ST19#199501-199708

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20100iCT190,196,ET196,ST190,191199211-199505

sub58027-20120

main58027-20110iCT198,ST195199211-199505

sub58027-20130

main58027-20120iCT190,196,ET196,ST190,191199505-199506

sub58027-20160

main58027-20130iCT198,ST195199505-199506

sub58027-20170

main58027-20160iAT191,CT190,196,ET196,ST190,191199506-199612

main58027-20170iCT198,ST195199506-199612

main58027-20171iCT198,199,ST195199612-199908

main58027-20210iAT191,CT190,196,197,ET196,ST191199612

main58027-21020iCT199,ST198199805

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-20060iCT190199601-199608

sub58103-20061

main58103-20061iCT190199608-199708

58111PAN, FRONT FLOOR

main58111-20160iCT19#,ET196,ST19#199211-199505

sub58111-20190

main58111-20180iAT191,CT19#,ET196,ST19#199601-199612

sub58111-20181

sub90331-20044

main58111-20181iAT191,CT19#,ET196,ST19#199612

main58111-20190iCT19#,ET196,ST19#199505-199601

sub58111-20191

sub58103-20042

sub58103-20052

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58103-20040iCT19#,ET196,ST19#199211-199504

sub58103-20041

main58103-20041iCT19#,ET196,ST19#199504-199601

sub58103-20042

main58103-20060iAT191,CT19#,ET196,ST19#199601-199608

sub58103-20061

main58103-20061iAT191,CT19#,ET196,ST19#199608-199708

main58103-20063iCT19#,ET196,ST198199708

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20020iCT19#,ET196,ST19#199211-199601

main58136-20020iAT191,CT19#,ET196,ST19#199601

main58136-20030iCT19#,ET196,ST19#199211-199601

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20090iCT19#,ET196,ST19#199211-199601

main58107-20110iAT191,ET196,ST191199601

main58107-20120iCT196,198,199,ST195,198199601

main58107-20130iCT190,197199601

58191FOOTREST, FRONT FLOOR

main58191-20050iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199601

main58191-20080iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199601

58198CLIP, FOOTREST

main58198-20130iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199601

main58198-20140iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199601

L=84.5

main58198-20170iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199601

L=93.8

main58198-20180iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199601

L=75.6

main58198-32020iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199601

L=28.5

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58213-20090iCT190,ST19#199211-199501

sub58213-20091

main58213-20091iAT191,CT190,ST19#199501-199708

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58214-20030iCT190,ST19#199211-199501

sub58214-20031

main58214-20031iCT190,ST19#199501-199708

58208PAN, CENTER FLOOR

main58211-20360iCT190,ST190,191199211-199501

main58211-20400iCT190,ST190,191199501-199601

main58211-20410iST195199501-199601

main58211-20420iAT191,CT190,ST191199601-199708

sub58211-20421

main58211-20440iST195199601-199708

sub58211-20441

main58211-21020iST195199211-199501

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-20070iCT190,ST19#199211-199601

main58233-20090iAT191,CT190,ST19#199601-199708

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58266-14050iCT190,196,ET196,ST190,191199211-199601

main58369-20020iAT191,CT196,197,ET196,ST191199601

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030iCT196,197,198,199,ET196,ST198199211

main58244-20020iAT191,CT190,ST19#199211-199708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-21020iCT196,197,ET196199211

main58307-21030iCT198,199,ST198199211

main58307-21040iAT191,CT190,ST19#199211-199708

58311PAN, REAR FLOOR

main58311-20320iAT191,CT190,ST19#199211-199708

sub58311-21060

main58311-21030iCT196,197,ET196199211

main58311-21040iCT198,199,ST198199211

58313PANEL, REAR FLOOR SIDE, RH

main58313-21020iCT196,197,198,199,ET196,ST198199211

main58313-21030iAT191,CT190,ST19#199211-199708

58314PANEL, REAR FLOOR SIDE, LH

main58314-21020iCT196,197,198,199,ET196,ST198199211

main58314-21030iAT191,CT190,ST19#199211-199708

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12080iCT196,197,198,199,ET196,ST198199211

main58325-32030iST195199211-199708

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-32010iST195199211-199708

58351ABRACKET, SPARE WHEEL CARRIER

main58351-20040iCT190,ST19#199211-199708

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010iCT190,ST19#199211-199708

58369BBRACKET, FUEL TUBE, NO.3

main58369-20020iAT191,CT190,ST19#199601-199708

main58369-32010iCT190,ST19#199211-199601

58384GGUSSET, LOWER BACK, UPPER RH

main58384-21020iCT196,197,198,199,ET196,ST198199211

main58384-21030iAT191,CT190,ST19#199211-199708

58385GGUSSET, LOWER BACK, UPPER LH

main58385-21010iCT196,197,198,199,ET196,ST198199211

main58385-21020iAT191,CT190,ST19#199211-199708

58396ABRACKET, WIRE HARNESS CLAMP

main58396-21010iAT191,CT190,ST19#199211-199708

58397DPANEL, REAR FLOOR END DUST SEAL, RH

main58397-21010iCT196,197,198,199,ET196,ST198199211

main58397-21020iAT191,CT190,ST19#199211-199708

58398DPANEL, REAR FLOOR END DUST SEAL, LH

main58398-21020iCT196,197,198,199,ET196,ST198199211

main58398-21030iAT191,CT190,ST19#199211-199708

9011506219

main90115-06219

9018904130

main90189-04130

9029703007

main90297-03007

9033320001

main90333-20001

9033330002

main90333-30002

9095001006

main90950-01006

9095001326

main90950-01326

9095001357

main90950-01357

9095001709

main90950-01709

9095001850

main90950-01850

9095001866

main90950-01866

9095001867

main90950-01867

9095001872

main90950-01872

9095006092

main90950-06092

9356054010

main93560-54010

45 parts on this diagram · 2 diagrams in section
