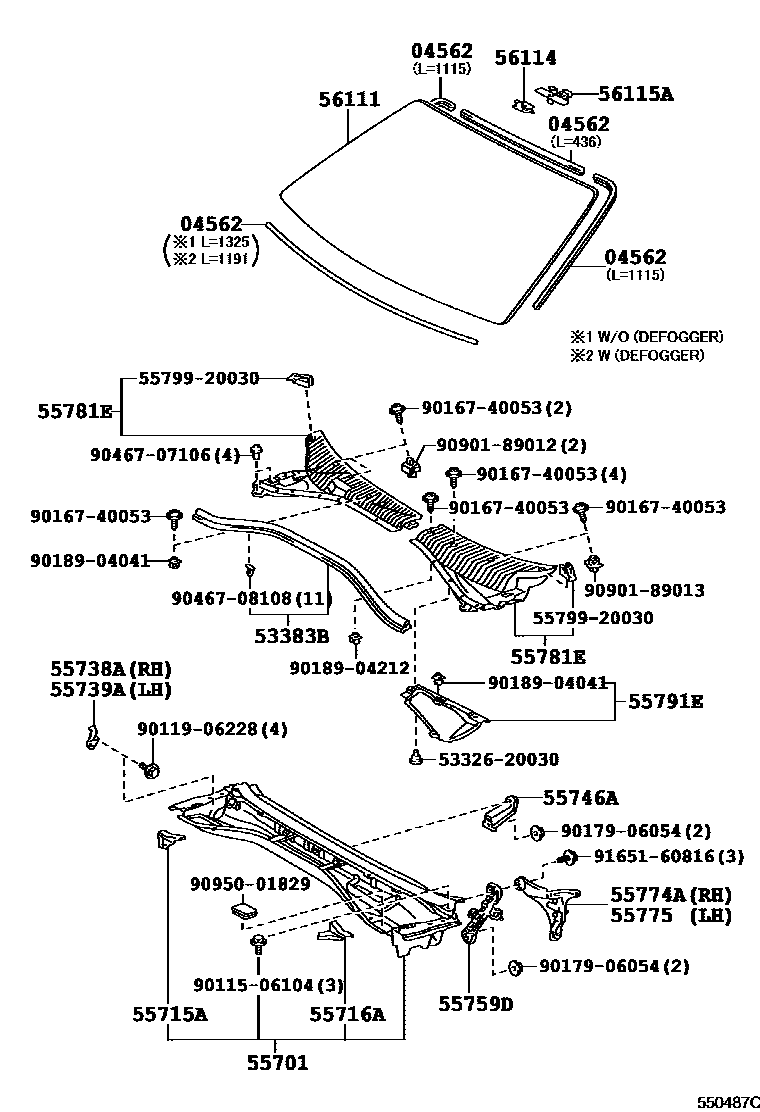

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iCT19#,ET196,ST19#199211-199601

53383BSEAL, HOOD TO COWL TOP

main53383-20160iAT191,CT19#,ET196,ST19#199211

55701PANEL SUB-ASSY, COWL

main55700-21040iST195..TZG199601-199708

main55700-2B010iST19#199211-199601

main55700-2B030iCT19#,ET196199211-199601

main55700-2B080iCT19#199601

main55700-2B090iAT191,ST19#..CZ,FZ,TZ,U,UL,UX199601

55715ABRACE, COWL TOP TO APRON, RH

main55715-20120iAT191,CT19#,ET196,ST19#199211

55716ABRACE, COWL TOP TO APRON, LH

main55716-20090iAT191,CT19#,ET196,ST19#199211

55738ASTOPPER, HOOD, RH

main55738-20050iAT191,CT19#,ET196,ST19#199211

55739ASTOPPER, HOOD, LH

main55739-20050iAT191,CT19#,ET196,ST19#199211

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-20100iCT19#,ET196,ST19#199211-199601

55759DBRACKET, COWL TOP INNER STAY MOUNTING

main55759-20070iAT191,CT19#,ET196,ST19#199601

55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH

main55774-20090iCT19#,ET196,ST19#199211-199601

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-20070iCT19#,ET196,ST19#199211-199601

main55775-21010iAT191,CT19#,ET196,ST19#199601

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20150iAT191,CT19#,ET196,ST19#199211

main55708-20160iAT191,CT19#,ET196,ST19#199211

main55709-20070iAT191,CT19#,ET196,ST19#199211

main55709-20080iAT191,CT19#,ET196,ST19#199211

55791ECOVER, HEATER DUCT HOLE

main55790-20010iAT191,CT19#,ET196,ST19#199211

56111GLASS, WINDSHIELD

main56111-21030iCT196,198,ET196199211-199305

sub56111-21050

sub56115-20060

main56111-21040iCT196,198,ET196199211-199305

main56111-21050iCT196,198,ET196199305-199601

main56111-21060iCT196,198,ET196199305-199402

sub56111-21061

main56111-21061iCT196,198,ET196199402-199409

sub56111-2B510

main56111-21070iAT191,CT190,ST19#199601-199708

main56111-21080iAT191,CT190,ST19#199601-199708

main56111-21090iCT196,197,198,199,ET196,ST198199601

main56111-21110iCT196,197,198,199,ET196,ST198199601

main56111-2B080iCT190,ST19#199409-199601

main56111-2B130iCT190,ST19#199211-199302

sub56111-2B131

main56111-2B131iCT190,ST19#199302-199402

main56111-2B160iCT190,ST19#199211-199302

sub56111-2B161

main56111-2B161iCT190,ST19#199302-199402

sub56111-2B162

main56111-2B400iCT190,ST19#199402-199601

main56111-2B411iCT190,ST19#199402-199409

sub56111-2B080

main56111-2B510iCT196,198,ET196199409-199601

56114RETAINER, WINDSHIELD GLASS

main56114-20010iCT19#,ET196,ST19#199211-199305

main56114-20040iAT191,CT19#,ET196,ST19#199305

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20060iCT190,ST19#199302-199601

main56115-21010iAT191,CT19#,ET196,ST19#199601

5332620030CLIP, HOOD PROTECTOR

main53326-20030

5579920030COVER, WIPER MOTOR

main55799-20030

9011506104

main90115-06104

9011906228

main90119-06228

9016740053

main90167-40053

9017906054

main90179-06054

9018904041

main90189-04041

9018904212

main90189-04212

9046707106

main90467-07106

9046708108

main90467-08108

9090189012

main90901-89012

9090189013

main90901-89013

9095001829

main90950-01829

9165160816

main91651-60816

30 parts on this diagram · 1 diagram in section
