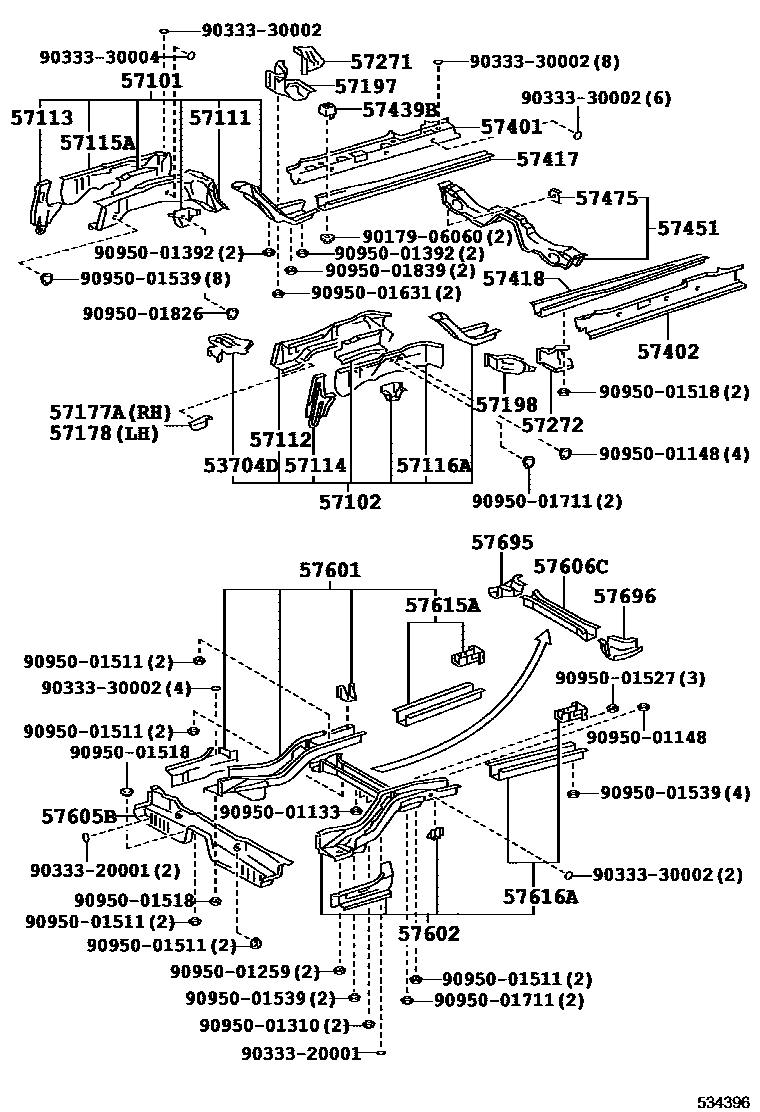

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-20010iCT19#,ET196,ST19#199211-199601

main53771-20080iAT191,ET196,ST19#199601-199612

sub53771-20081

main53771-20081iAT191,ET196,ST19#199612-200008

sub53771-20120

sub74451-32071

main53771-20090iCT19#199601-199612

sub53771-20091

main53771-20091iCT19#199612-200008

sub53771-20130

sub74451-32071

main53771-20120iET196,ST198200008

main53771-20130iCT19#200008

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20915iCT19#,ET196,ST19#199211-199601

sub57101-20931

main57101-20924iAT191199601-199708

sub57101-20934

main57101-20940iCT19#,ET196,ST19#199601

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20910iET196199211-199601

sub57102-20926

main57102-20912iCT190,196,ST190,191199211-199601

sub57102-20928

main57102-20914iCT198,ST195199211-199601

main57102-20922iAT191,ET196,ST19#199601-199602

sub57102-20944

main57102-20923iCT19#199601-199602

sub57102-20943

main57102-20930iAT191,ST19#199602-199708

sub57102-20936

main57102-20936iET196199602

sub57102-20944

main57102-20937iCT19#199602

sub57102-20945

main57102-20944iST198199908

57111MEMBER, FRONT SIDE, RH

main57111-20220iCT19#,ET196,ST19#199211-199512

sub57111-20260

main57111-20250iAT191,CT19#,ET196,ST19#199601-199612

main57111-20260iCT19#,ET196,ST19#199512-199601

sub57111-20270

main57111-20280iAT191,CT19#,ET196,ST19#199612-199708

57112MEMBER, FRONT SIDE, LH

main57112-20240iCT19#,ET196,ST19#199211-199512

sub57112-20270

main57112-20260iAT191,CT19#,ET196,ST19#199601-199612

sub57112-20261

main57112-20261iAT191,CT19#,ET196,ST19#199612

main57112-20270iCT19#,ET196,ST19#199512-199601

sub57112-20280

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20150iCT19#,ET196,ST19#199211-199501

sub57113-20151

main57113-20151iCT19#,ET196,ST19#199501-199601

main57113-20180iAT191,CT19#,ET196,ST19#199601

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20120iCT19#,ET196,ST19#199211-199501

sub57114-20121

main57114-20121iCT19#,ET196,ST19#199501-199601

main57114-20160iAT191,CT19#,ET196,ST19#199601

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20150iCT19#,ET196,ST19#199211-199502

sub57115-20160

sub90333-30002

main57115-20160iCT19#,ET196,ST19#199502-199601

main57115-20180iAT191,CT19#,ET196,ST19#199601

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20170iCT19#,ET196,ST19#199211-199505

sub57116-20181

sub90333-30002

main57116-20181iCT19#,ET196,ST19#199505-199601

main57116-20200iAT191,CT19#,ET196,ST19#199601

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

main57177-20060iAT191,CT19#,ET196,ST19#199601

main57177-20080iCT19#,ET196,ST19#199512-199601

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

main57177-20060iAT191,CT19#,ET196,ST19#199601

main57178-20070iCT19#,ET196,ST19#199512-199601

57197BOX, TORQUE, FRONT RH

main57197-20040iCT19#,ET196,ST19#199211-199601

main57197-20070iAT191,CT19#,ET196,ST19#199601

57198BOX, TORQUE, FRONT LH

main57198-20050iCT19#,ET196,ST19#199211-199601

main57198-20080iAT191,CT19#,ET196,ST19#199601

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20040iCT19#,ET196,ST19#199211-199509

sub57271-20041

main57271-20041iCT19#,ET196,ST19#199509-199601

main57271-20050iAT191,CT19#,ET196,ST19#199601

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20040iCT19#,ET196,ST19#199211-199509

sub57272-20041

main57272-20041iCT19#,ET196,ST19#199509-199601

main57272-20050iAT191,CT19#,ET196,ST19#199601

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20280iCT19#,ET196,ST19#199211-199601

main57401-21010iAT191,CT19#,ET196,ST19#199601-199908

main57401-21040iCT19#,ET196,ST198199908

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20310iCT19#,ET196,ST19#199211-199601

main57402-21010iAT191,CT19#,ET196,ST19#199601-199908

main57402-21040iCT19#,ET196,ST198199908

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20080iCT19#,ET196,ST19#199211-199601

main57417-20100iAT191,CT19#,ET196,ST19#199601

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20070iCT19#,ET196,ST19#199211-199601

main57418-20100iAT191,CT19#,ET196,ST19#199601

57439BDAMPER, FRONT FLOOR CROSSMEMBER DYNAMIC

main57439-20010iCT190,ST19#199211-199601

57451MEMBER, FRONT FLOOR CROSS

main57408-20900iCT19#,ET196,ST19#199211-199601

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-32010iCT19#,ET196,ST19#199211-199601

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-21030iCT196,197,ET196199211

main57601-21040iCT198199211-199805

main57601-21080iST195199211-199601

main57601-21090iCT190,ST190,191199211-199601

main57601-21110iST195199601-199708

main57601-21140iCT199,ST198199805

main57601-21900iAT191,CT190,ST191199601-199708

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20390iCT190,ST190,191199211-199310

sub57602-20380

main57602-21030iCT196,197,ET196199211-199908

main57602-21040iCT198199211-199805

main57602-21080iST195199211-199601

main57602-21090iCT190,ST190,191199310-199601

main57602-21110iST195199601-199708

main57602-21140iCT197,ET196199805

main57602-21150iCT199,ST198199805

main57602-21900iAT191,CT190,ST191199601-199708

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-13040iCT198,199,ST198199211

main57605-20100iCT190,ST19#199211-199601

main57605-20150iAT191,CT190,ST19#199601-199708

main57605-21020iCT196,197,ET196199211

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20140iCT190,ST190,191199211-199402

sub57606-20141

main57606-20142iCT190,ST190,191199402-199601

main57606-20900iAT191,CT190,ST191199601-199708

main57606-21060iST195199211-199708

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20909iCT190,ST19#199211-199601

sub57615-20918

sub90269-03067

main57615-20917iAT191,CT190,ST19#199601-199708

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20908iCT190,ST19#199211-199601

main57616-20915iAT191,CT190,ST19#199601-199708

57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH

main57695-20020iCT190,ST190,191199211-199601

57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH

main57696-20020iCT190,ST190,191199211-199601

9017906060

main90179-06060

9033320001

main90333-20001

9033330002

main90333-30002

9033330004

main90333-30004

9095001133

main90950-01133

9095001148

main90950-01148

9095001259

main90950-01259

9095001310

main90950-01310

9095001392

main90950-01392

9095001511

main90950-01511

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001631

main90950-01631

9095001711

main90950-01711

9095001826

main90950-01826

9095001839

main90950-01839

47 parts on this diagram · 4 diagrams in section
