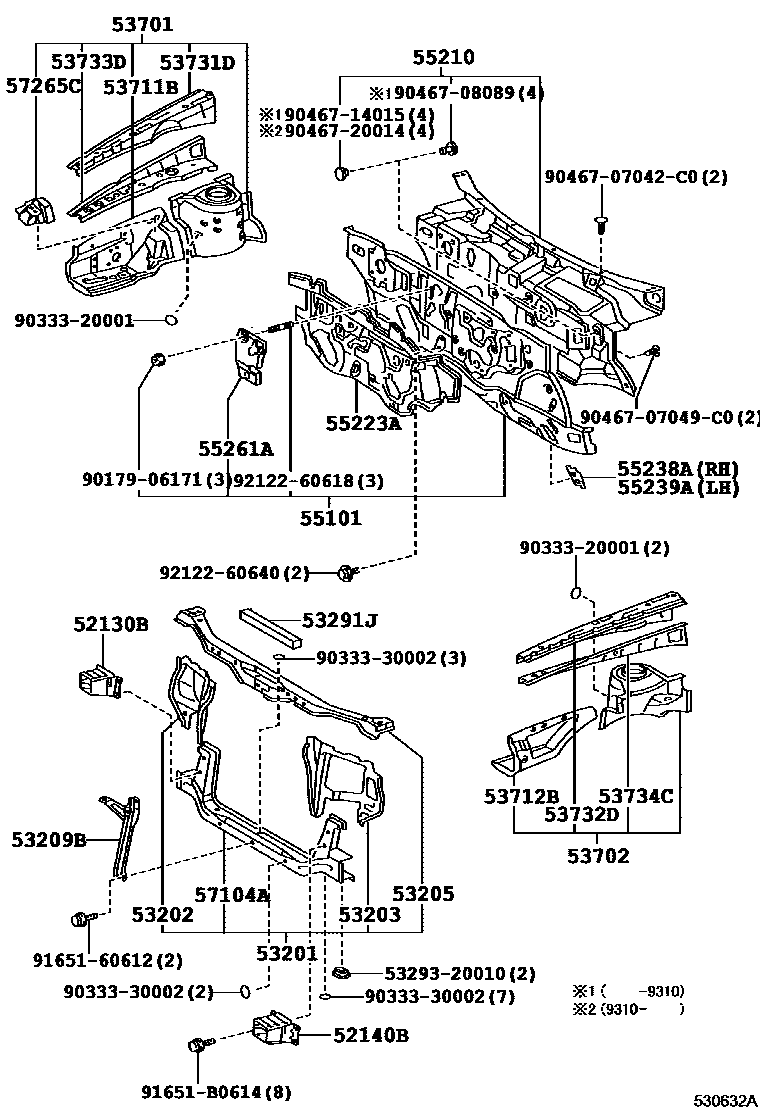

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52130BBRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-20030iCT19#,ET196,ST19#199211-199601

52140BBRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-20030iCT19#,ET196,ST19#199211-199601

53201SUPPORT SUB-ASSY, RADIATOR

main53201-20640iCT19#,ET196,ST19#199211-199601

main53201-21010iAT191,CT19#,ET196,ST19#199601

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-20120iCT19#,ET196,ST19#199211-199601

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-20200iCT19#,ET196,ST19#199211-199601

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-20050iCT19#,ET196,ST19#199211-199601

main53216-20210iAT191,CT19#,ET196,ST19#199601

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-20300iCT19#,ET196,ST19#199211-199601

main53209-21010iAT191,CT190,ST19#199601-199708

main53209-21020iCT196,197,198,199,ET196,ST198199601

53291JSEAL, RADIATOR SUPPORT

main53291-20060iST195..4FC..TZG199502-199601

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20740iCT19#,ET196,ST19#199211-199510

sub53701-20780

main53701-20770iAT191,CT19#,ET196,ST19#199601

main53701-20780iCT19#,ET196,ST19#199510-199601

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20720iCT19#,ET196,ST19#199211-199510

sub53702-20750

main53702-20740iAT191,CT19#,ET196,ST19#199601

main53702-20750iCT19#,ET196,ST19#199510-199601

53711BAPRON, FRONT FENDER, FRONT RH

main53711-20290iCT19#,ET196,ST19#199211-199505

sub53711-20320

main53711-20291iCT19#,ET196,ST19#199505-199510

sub53711-20320

main53711-20310iAT191,CT19#,ET196,ST19#199601-199612

sub53711-20311

main53711-20311iAT191,CT19#,ET196,ST19#199612

main53711-20320iCT19#,ET196,ST19#199510-199601

sub53711-20321

53712BAPRON, FRONT FENDER, FRONT LH

main53712-20300iCT19#,ET196,ST19#199211-199510

sub53712-20340

main53712-20320iAT191,CT19#,ET196,ST19#199601-199612

sub53712-20321

main53712-20321iAT191,CT19#,ET196,ST19#199612

main53712-20340iCT19#,ET196,ST19#199510-199601

sub53712-20341

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-20100iCT19#,ET196,ST19#199211-199505

sub53731-20130

main53731-20120iAT191,CT19#,ET196,ST19#199601-199612

sub53731-20121

main53731-20130iCT19#,ET196,ST19#199505-199601

sub53731-20131

main53731-20131iAT191,CT19#,ET196,ST19#199612

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-20100iCT19#,ET196,ST19#199211-199505

sub53732-20130

main53732-20120iAT191,CT19#,ET196,ST19#199601-199612

sub53732-20121

main53732-20121iAT191,CT19#,ET196,ST19#199612

main53732-20130iCT19#,ET196,ST19#199505-199601

sub53732-20131

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-20070iCT19#,ET196,ST19#199211-199505

sub53733-20080

main53733-20080iAT191,CT19#,ET196,ST19#199505

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-20080iCT19#,ET196,ST19#199211-199505

sub53734-20090

main53734-20090iAT191,CT19#,ET196,ST19#199505

55101PANEL SUB-ASSY, DASH

main55101-21100iCT197..4FC..U199601-199810

main55101-21101iCT197..4FC..(UL,UX)199810

main55101-21110iCT19#..5F199601-199810

main55101-21111iCT19#..5F..(UL,UX)199810

main55101-21900iET196..5F..U199211-199601

main55101-21901iET196..3FC..U199211-199601

main55101-21902iCT196..4FC..U199211-199601

sub55101-21903

sub90333-20001

sub90333-40001

main55101-21903iCT198..U199211-199601

main55101-21904iCT196..5F..U199211-199601

main55101-2B650iAT191,ET196,ST19#..ATM199601

main55101-2B660iAT191,ET196,ST195..5F199601

main55101-2B930iET196,ST190..5F..(CZ,FZ,UL,UX)199211-199601

sub55101-2B934

main55101-2B931iET196,ST19#..ATM..(CZ,FZ,TZ,UL,UX)199211-199601

sub55101-2B946

sub55261-20010

sub90179-06171

sub92122-60618

main55101-2B932iCT190,196..5F..(CZ,FZ,UL,UX)199211-199601

main55101-2B933iCT190,196..4FC..(CZ,FZ,UL,UX)199211-199601

main55101-2B941iST195..5F199211-199406

sub55101-2B945

sub55261-20010

sub90179-06171

sub92122-60618

main55101-2B942iCT198..UL199211-199601

main55101-2B945iST195..5F199502-199601

main55101-2B946iST195..4FC199406-199601

55210INSULATOR ASSY, DASH PANEL

main55210-20240iCT19#,ET196,ST19#199211-199601

main55210-21010iAT191,CT19#,ET196,ST19#199601-199701

sub55210-21011

main55210-21011iAT191,CT19#,ET196,ST19#199701

55223AINSULATOR, DASH PANEL, OUTER

main55223-20100iCT19#199211-199601

main55223-20130iCT19#199601-199608

sub55223-20131

main55223-20131iCT19#199608

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-20030iCT19#,ET196,ST19#199211-199601

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-20040iCT19#,ET196,ST19#199211-199601

55261ADAMPER, DASH PANEL DYNAMIC

main55261-20010iST195199406-199410

sub55261-20011

main55261-20011iST195199410-199601

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-20110iCT19#,ET196,ST19#199211-199601

main57104-21010iAT191,CT19#,ET196,ST19#199601

57265CBRACKET, ENGINE MOUNTING, RH

main57265-20110iAT191,CT19#,ET196,ST19#199211

5329320010BRACKET, FRONT BUMPER STAY

main53293-20010

9017906171

main90179-06171

9033320001

main90333-20001

9033330002

main90333-30002

9046707042C0

main90467-07042C0

9046707049C0

main90467-07049C0

9046708089

main90467-08089

9046714015

main90467-14015

9046720014

main90467-20014

9165160612

main91651-60612

91651B0614

main91651-B0614

9212260618

main92122-60618

9212260640

main92122-60640

37 parts on this diagram · 2 diagrams in section
