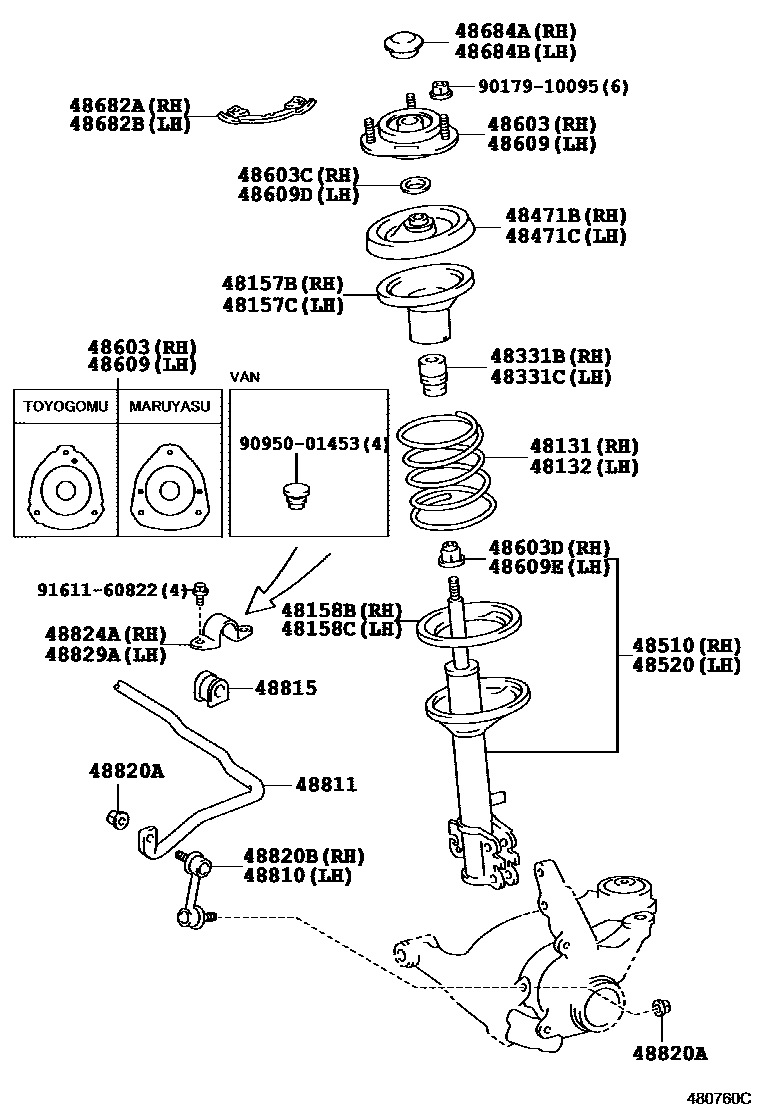

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-21110iST195..5F..TZG199502-199708

main48131-21180iCT197..5F199805

main48131-21190iCT197..4FC199805

main48131-21200iET196..5F199805

main48131-21210iET196..3FC199805

main48131-2L010iST195..4FC..TZG199604-199708

main48131-2M730iST190..5F199211-199305

main48131-2M800iCT190..5F199211-199402

main48131-2P040iST191199612-199708

main48131-2P060iST191..TZ199612-199708

main48131-2P080iAT191,ST191..4FC199601-199612

main48131-2P230iST195..5F..(CZ,TZ)199601-199708

main48131-2P230iST191..TZ199604-199612

main48131-2P250iST195..5F..TZ199604-199708

main48131-2P280iST190,191..4FC199211-199305

sub48131-2P290

main48131-2P300iST195..5F199305-199311

sub48131-2P310

main48131-2P310iST195..5F199311-199402

main48131-2P320iST195..4FC199211-199305

main48131-2P470iCT190,ST195..4FC..(CZ,FZ,TZ)199601-199708

main48131-2P490iST195..4FC..TZ199604-199708

main48131-2P540iST195..4FC..TZG199502-199708

main48131-2P540iST195..5F..TZG199604-199708

main48131-2P560iST195..5F;CT190..4FC199211-199402

sub48131-2P360

main48131-2P680iAT191..5F199601-199612

main48131-2S210iST190..5F199305-199402

main48131-2S250iST190,191..4FC199305-199402

main48131-2S310iET196..5F199601-199805

sub48131-2S570

main48131-2S330iET196..5F199211-199601

sub48131-2S580

main48131-2S350iET196..3FC199402-199805

main48131-2S370iCT196..5F199211-199805

main48131-2S390iCT196..5F;ST190,191..4FC199211-199601

sub48131-2S410

main48131-2S410iCT198,199;CT196,ST198..4FC199402-199601

main48131-2S430iCT198;CT196..4FC199211-199601

sub48131-2S410

main48131-2S510iST195..4FC199305-199311

sub48131-2S520

main48131-2S520iST195..4FC199311-199402

main48131-2S570iAT191..5F199612-199708

main48131-2S580iAT191..4FC199612-199708

main48131-2T210iST195..5F..(CZ,TZ)199502-199601

main48131-2T230iST195..4FC..(CZ,TZ)199502-199601

48132SPRING, FRONT COIL, LH

main48131-21110iCT190..4FC;ST195..5F..TZG199601-199708

main48131-21180iCT197..5F199805

main48131-21190iCT197..4FC199805

main48131-21200iET196..5F199805

main48131-21210iET196..3FC199805

main48131-2L010iST195..4FC..TZG199604-199708

main48131-2M780iCT190..5F199211-199402

main48131-2P040iST191199612-199708

main48131-2P060iCT190..5F199612-199708

main48131-2P080iAT191,ST191..4FC199601-199612

main48131-2P230iST191..TZ199604-199612

main48131-2P230iCT190,ST195..5F..(CZ,FZ,TZ)199601-199708

main48131-2P250iST195..5F..TZ199604-199708

main48131-2P280iST195..5F199305-199311

sub48131-2P290

main48131-2P290iST195..5F199311-199402

main48131-2P300iST195..4FC199305-199311

sub48131-2P310

main48131-2P310iST195..4FC199311-199402

main48131-2P340iST195..5F..(CZ,TZ)199502-199601

sub48131-2P020

main48131-2P470iST195..4FC..(CZ,TZ)199601-199708

main48131-2P490iST195..4FC..TZ199604-199708

main48131-2P540iST195..4FC..TZG199502-199708

main48131-2P540iST195..5F..TZG199604-199708

main48131-2P560iST195..4FC199211-199305

sub48131-2P360

main48131-2P580iST190..5F199211-199305

main48131-2P600iST195..5F;CT190..4FC199211-199402

sub48131-2P360

main48131-2P620iST190,191..4FC199211-199305

main48131-2P680iAT191..5F199601-199612

main48131-2S230iST190,191..4FC199305-199402

main48131-2S310iET196..5F199211-199805

sub48131-2S570

main48131-2S330iST190..5F199402-199601

sub48131-2S580

main48131-2S350iET196..3FC;CT190..5F..DSL199211-199805

main48131-2S370iCT196..5F199211-199805

main48131-2S390iCT190..4FC199402-199601

sub48131-2S410

main48131-2S410iCT198;CT196,ST195..4FC199211-199502

main48131-2S570iAT191..5F199612-199708

main48131-2S580iAT191..4FC199612-199708

main48131-2S590iST190..5F199305-199402

main48131-2T210iST195..5F..TZG;ST195..4FC..(CZ,TZ)199502-199601

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12070iAT191,CT19#,ET196,ST19#199601

main48157-20130iCT19#,ET196,ST19#199211-199601

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12070iAT191,CT19#,ET196,ST19#199601

main48157-20130iCT19#,ET196,ST19#199211-199601

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-20080iAT191,CT19#,ET196,ST19#199211

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-20080iAT191,CT19#,ET196,ST19#199211

48331BBUMPER, FRONT SPRING, RH

main48331-12120iET196199211-199601

main48331-12130iCT19#,ST19#199211-199601

main48331-12140iAT191,ET196199601

main48331-12150iCT19#,ST19#199601-199701

main48331-12151iCT19#,ST19#199702

48331CBUMPER, FRONT SPRING, LH

main48331-12120iET196199211-199601

main48331-12130iCT19#,ST19#199211-199601

main48331-12140iAT191,ET196199601

main48331-12150iCT19#,ST19#199601-199701

main48331-12151iCT19#,ST19#199702

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-20040iAT191,CT19#,ET196,ST19#199211

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-20040iAT191,CT19#,ET196,ST19#199211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29337iST195..CZ,TZ199305-199601

sub48510-29346

main48510-29346iCT198,ST195199211-199601

sub48510-80213

main48510-29378iCT190,196,ST190,191199305-199601

sub48510-29477

main48510-29385iST195..TZG199502-199601

sub48510-29386

main48510-29395iAT191,ET196199601

main48510-29405iCT190,196,ST191199601-199801

sub48510-29406

main48510-29406iCT196199801-199805

sub48510-29675

main48510-29415iST195..CZ,TZ199601-199708

sub48510-29646

main48510-29435iCT198,ST195..TZG,U,UL199601-199708

sub48510-29436

main48510-29445iET196199402-199601

main48510-29455iET196199211-199402

sub48510-29445

main48510-29467iCT190,196199211-199402

sub48510-80253

main48510-29636iCT197199805-199807

sub48510-29695

main48510-29645iCT198199708-199801

sub48510-29646

main48510-29646iCT198,199199801-199807

sub48510-29695

main48510-29675iCT197199807

sub48510-80199

main48510-29695iCT199,ST198199807-199912

sub48510-29775

main48510-29775iCT199,ST198199912

sub48510-80198

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29157iST195..CZ,TZ199305-199601

sub48520-29166

main48520-29166iCT198199211-199601

sub48520-80039

main48520-29188iST190,191199305-199601

sub48520-29287

main48520-29195iST195..TZG199502-199601

sub48520-29196

main48520-29205iAT191,ET196199601

main48520-29215iCT190,196,ST191199601-199801

sub48520-29216

main48520-29216iCT196199801-199805

sub48520-29385

main48520-29225iST195..CZ,TZ199601-199708

sub48520-29356

main48520-29245iCT198,ST195..TZG,U,UL199601-199708

sub48520-29246

main48520-29255iET196199402-199601

main48520-29265iET196199211-199402

sub48520-29255

main48520-29277iCT190,196,ST190,191199211-199402

sub48520-80061

main48520-29346iCT197199805-199807

sub48520-29415

main48520-29355iCT198199708-199801

sub48520-29356

main48520-29356iCT198,199199801-199807

sub48520-29415

main48520-29385iCT197199807

sub48520-80032

main48520-29415iCT199,ST198199807-199912

sub48520-29485

main48520-29485iCT199,ST198199912

sub48520-80033

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20281iCT190,ST19#199211-199601

TOYOGOMU

main48609-20361iCT190,ST19#199211-199601

main48609-20381iCT196,198,ET196199211-199601

main48609-20410iAT191,CT190,ST19#199601-199708

TOYOGOMU

main48609-20420iAT191,CT190,ST19#199601-199708

main48609-21010iCT196,197,198,199,ET196,ST198199601

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAT191,CT19#,ET196,ST19#199211

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAT191,CT19#,ET196,ST19#199211

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20281iCT190,ST19#199211-199601

TOYOGOMU

main48609-20361iCT190,ST19#199211-199601

main48609-20381iCT196,198,ET196199211-199601

main48609-20410iAT191,CT190,ST19#199601-199708

TOYOGOMU

main48609-20420iAT191,CT190,ST19#199601-199708

main48609-21010iCT196,197,198,199,ET196,ST198199601

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAT191,CT19#,ET196,ST19#199211

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAT191,CT19#,ET196,ST19#199211

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-20010iST19#199305-199601

main48682-20020iAT191,CT190,ST19#199601-199708

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-20010iST19#199305-199601

main48682-20020iAT191,CT190,ST19#199601-199708

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iCT19#,ET196,ST198200004

main48684-20020iAT191,CT190,ST19#199211-199708

main48684-20060iAT191,CT190,ST19#199211-199708

OD=39

main48684-32010iCT196,197,198,199,ET196,ST198199211-200004

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iCT19#,ET196,ST198200004

main48684-20020iAT191,CT190,ST19#199211-199708

main48684-20060iAT191,CT190,ST19#199211-199708

OD=39

main48684-32010iCT196,197,198,199,ET196,ST198199211-200004

48810LINK ASSY, FRONT STABILIZER, LH

main48810-20020iAT191,CT190,ST19#199211-199708

sub48810-44010

48811BAR, STABILIZER, FRONT

main48811-05020iST190,191199408-199601

main48811-20710iAT191,CT190,ST190,191..EFI,TD199211-199708

main48811-20740iCT190199211-199601

main48811-20760iST195..CZ,TZ199211-199708

main48811-21020iST195..TZG199502-199601

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030iCT190199211-199601

main48815-20060iST195..TZG199502-199601

main48815-30040iST19#..CZ,FZ,TZ199211-199708

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iCT190,ST19#199211-199610

main90179-10183iAT191,CT190,ST19#199610-199708

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-20040iCT190,ST19#199211-199708

sub48820-44010

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12040iCT190,ST19#199211-199611

main48824-20080iAT191,CT190,ST19#199612-199708

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-12040iCT190,ST19#199211-199611

main48824-20080iAT191,CT190,ST19#199612-199708

9017910095

main90179-10095

9095001453

main90950-01453

9161160822

main91611-60822

32 parts on this diagram · 2 diagrams in section
