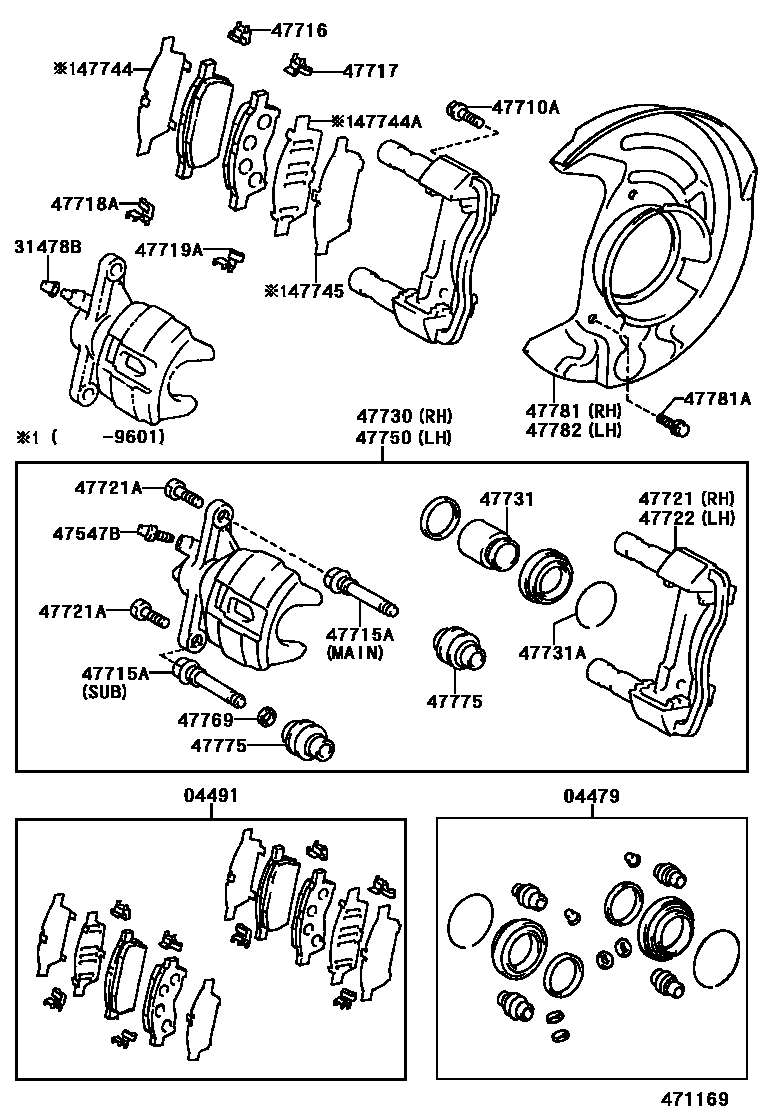

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12140iCT196,198,ET196199405-199711

main04479-20170iCT190,ST19#199211-199601

main04479-20250iAT191,CT190,ST19#199601-199708

sub04479-20170

main04479-20290iCT19#,ET196,ST198199711

main04479-32021iCT196,198,ET196199211-199405

04491PAD KIT, DISC BRAKE, FRONT

main04491-12610iCT196,198,ET196199211-199212

sub04465-12140

main04491-20880iCT190,ST19#..CZ,FZ,TZ199211-199505

sub04465-20110

main04491-2B020iCT196,198,ET196199212-199505

sub04465-21010

main04491-2B080iST195..TZG199502-199505

sub04465-20130

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT191,CT19#,ET196,ST19#199211

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAT191,CT19#,ET196,ST19#199211

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iCT19#,ET196,ST198199708

main90119-12040iAT191,CT19#,ET196,ST19#199211-199708

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iCT190,ST19#199211-199212

main47715-50010iCT190,ST19#199212-199708

main47715-50030iAT191,CT190,ST19#199212-199708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iCT196,197,198,199,ET196,ST198199701

main47716-20150iAT191,CT190,ST19#199601-199608

main47716-32031iCT196,198,ET196199211-199701

main47716-33010iCT190,ST19#199211-199601

main47716-33050iAT191,CT190,ST19#199608-199708

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-20160iAT191,CT190,ST19#199601-199608

main47716-33020iCT190,ST19#199211-199601

main47716-33060iAT191,CT190,ST19#199608-199708

main47717-20140iCT196,197,198,199,ET196,ST198199701

main47717-32031iCT196,198,ET196199211-199701

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-20150iAT191,CT190,ST19#199601-199708

main47717-33010iCT190,ST19#199211-199601

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-20160iAT191,CT190,ST19#199601-199708

main47717-33020iCT190,ST19#199211-199601

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20350iCT196,197,198,199,ET196,ST198199211

main47721-20370iAT191,CT190,ST19#199211-199608

main47721-20371iAT191,CT190,ST19#199608-199708

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAT191,CT190,ST19#199211-199708

main90119-09003iST198199211

main90119-09004iST198199211

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20350iCT196,197,198,199,ET196,ST198199211

main47722-20080iAT191,CT190,ST19#199211-199608

main47722-20081iAT191,CT190,ST19#199608-199708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20460iCT196,197,198,199,ET196,ST198199211

main47730-20480iAT191,CT190,ST19#199211-199608

main47730-20481iAT191,CT190,ST19#199608-199708

47731PISTON, FRONT DISC BRAKE

main47731-12130iCT196,197,198,199,ET196,ST198199211

main47731-20190iAT191,CT190,ST19#199211-199708

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iCT196,197,198,199,ET196,ST198199211

main90522-66001iAT191,CT190,ST19#199211-199708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iCT190,ST19#199211-199601

main47744-32010iCT196,198,ET196199211-199601

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-33010iCT190,ST19#199211-199601

main47745-32040iCT196,198,ET196199211-199212

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-32040iCT196,198,ET196199211-199212

main47744-32010iCT196,198,ET196199212-199601

main47745-33010iCT190,ST19#199211-199601

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20460iCT196,197,198,199,ET196,ST198199211

main47750-20480iAT191,CT190,ST19#199211-199608

main47750-20481iAT191,CT190,ST19#199608-199708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iCT196,197,198,199,ET196,ST198199211

main47769-50010iAT191,CT190,ST19#199211-199708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16020iCT196,198,ET196199211-199405

main47775-20080iAT191,CT190,ST19#199211-199708

sub47775-30070

main47775-32010iCT196,197,198,199,ET196,ST198199405

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20280iAT191,CT190,ST19#199211-199708

main47781-20290iCT196,197,198,199,ET196,ST198199211

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAT191,CT19#,ET196,ST19#199211

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20280iAT191,CT190,ST19#199211-199708

main47782-20290iCT196,197,198,199,ET196,ST198199211

25 parts on this diagram · 3 diagrams in section
