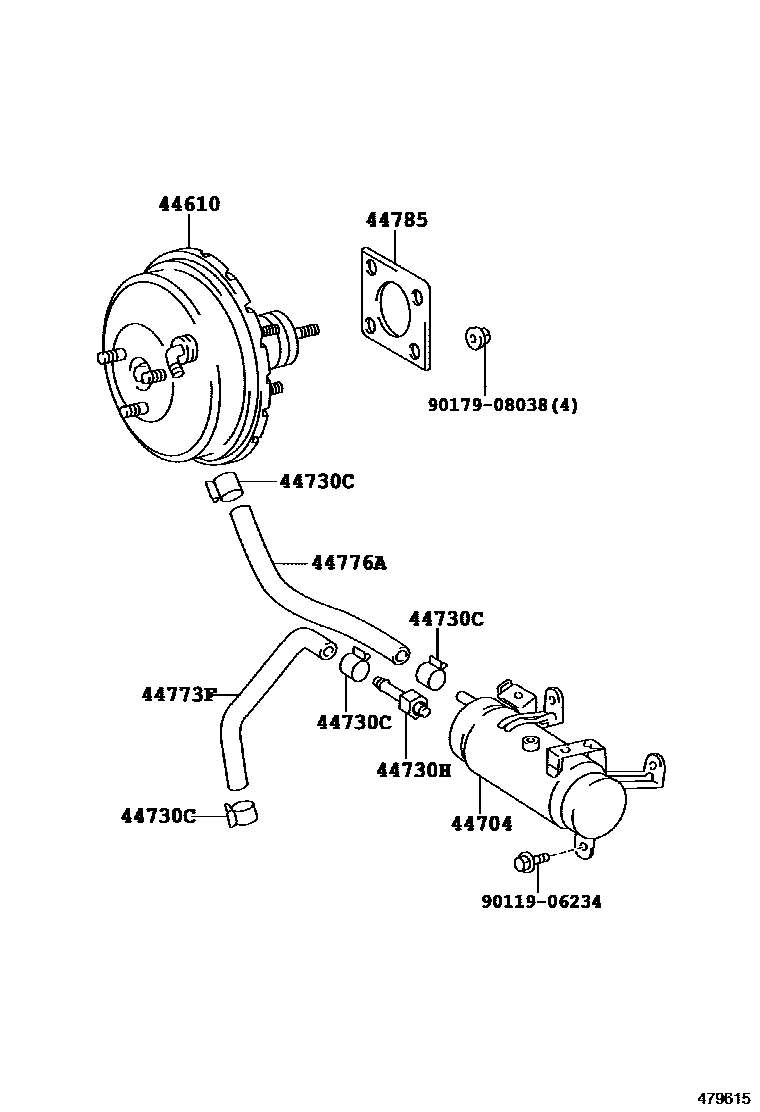

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-21090iCT19#199805-199908

main44610-21100iET196,ST198199805

main44610-21110iCT19#199805

main44610-2D260iST190,191199405-199601

main44610-2D260iST190,191199211-199405

main44610-2D280iST195199211-199402

main44610-2D280iST190,191199211-199601

main44610-2D290iCT190199211-199601

main44610-2D320iST195..TZG199601-199708

sub44610-2D740

main44610-2D320iST195..CZ,TZ199211-199601

sub44610-2D740

main44610-2D430iCT190199211-199601

main44610-2D490iST195..TZG199502-199601

main44610-2D500iET196199211-199601

main44610-2D530iCT196,198199211-199601

main44610-2D740iST195..TZG199502-199601

main44610-2D740iST195..TZG199601-199708

main44610-2D750iAT191199601-199708

sub44610-21070

main44610-2D760iCT190199601-199708

main44610-2D780iST191199601-199708

main44610-2D790iET196199601-199908

main44610-2D800iCT196,198199601-199805

main44610-2D810iST195..CZ,TZ199601-199708

44704RESERVOIR SUB-ASSY, VACUUM

main44704-20070iCT19#..DSL199211-199805

main44704-20100iCT190199609-199708

main44704-20130iCT190199601-199609

main44704-21020iCT19#199805

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iST195..TZG199601-199708

main44730-14050iST190,191199211-199601

BRAKE BOOSTER: AISIN

main44730-14050iST195..TZG199211-199601

main44730-28010iST190,191199211-199601

BRAKE BOOSTER: JKC

main44730-28010iET196199211-199402

main44730-28010iST195..TZG199601-199708

main44730-28010iET196,ST195,198..CZ,TZ,U,UL,UX199402

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iCT197,199;AT191,CT190,ET196,ST19#..EFI,TD199212-199805

sub96134-51500

main90467-16017iET196,ST19#199211-199212

44730HVALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)

main44730-60050iCT19#199211

44773FHOSE, UNION TO CHECK VALVE

main44773-20810iAT191199601-199708

main44773-20820iST190,191199211-199601

main44773-20840iST190,191199211-199601

main44773-20850iST195..TZG199502-199601

main44773-20850iST195..TZG199601-199708

main44773-20870iCT19#199211-199601

main44773-20890iET196199211-199708

main44773-21050iET196199708

main44773-2B050iST195..TZG199502-199601

main44773-2B060iCT190,197,199199601

main44773-2B070iST19#..CZ,TZ199601-199708

main44773-2B080iST198199908

main44773-2B090iCT196,198199601-199805

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-20111iCT19#..DSL199211-199805

44785GASKET, BRAKE BOOSTER

main44785-20020iAT191,CT19#,ET196,ST19#199212

main44785-32010iCT19#,ET196,ST19#199211-199212

9011906234

main90119-06234

9017908038

main90179-08038

10 parts on this diagram · 4 diagrams in section
