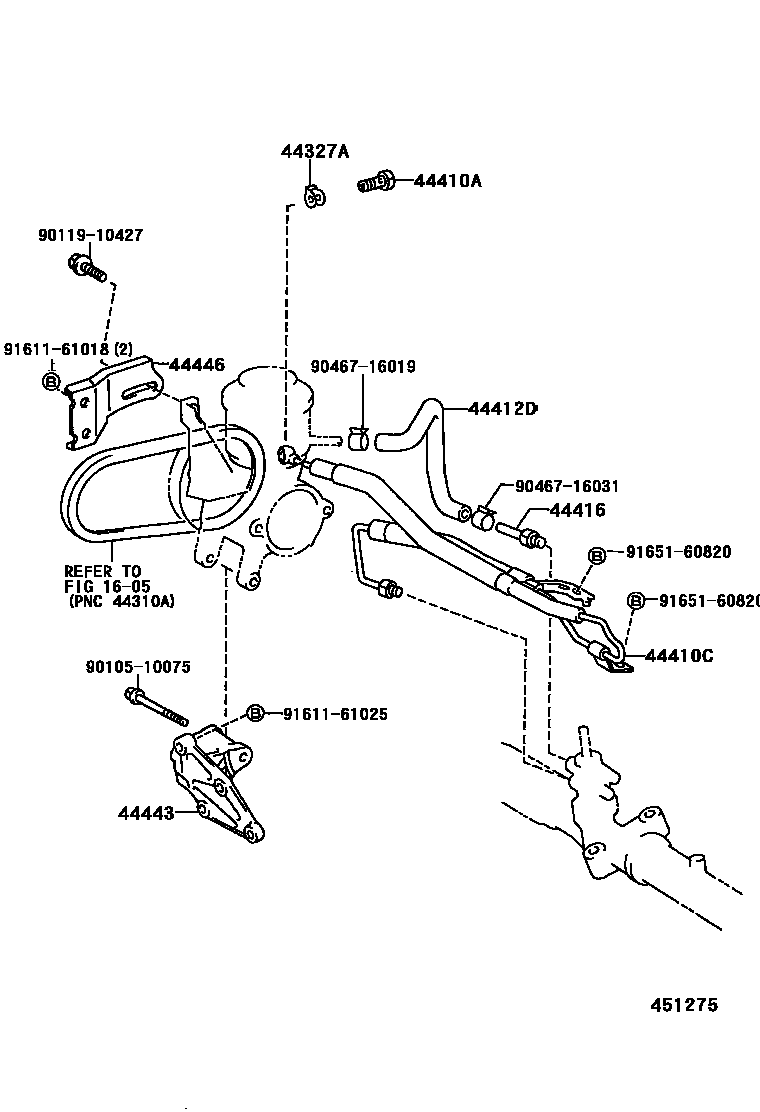

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT191,CT19#,ET196,ST19#199211

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iST19#..CZ,TZ,U,UL,UX199608

main90401-16008iAT191,CT19#,ET196,ST19#199211-199901

main90401-16008iCT19#,ET196199901

main96341-41603iCT19#,ET196199901

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-20700iST191199211-199601

main44410-20730iST195199211-199501

sub44410-20731

main44410-20731iST195..TZG199502-199601

main44410-20750iCT190,196199211-199601

main44410-20790iST190199211-199402

sub44410-2B080

sub91652-60830

main44410-20820iET196199211-199601

sub44410-21011

main44410-20840iCT198199211-199601

main44410-21010iET196199601-199608

sub44410-21011

main44410-21011iET196199608

main44410-2B080iST190199402-199601

main44410-2B140iST195..CZ,TZ199501-199601

main44410-2B160iAT191199601-199708

main44410-2B170iST191199601-199708

main44410-2B181iST195,198..CZ,TZ,U,UL,UX199601

main44410-2B191iST195..TZG199601-199708

main44410-2B210iCT198,199199601

main44410-2B230iCT190,196,197199601

44412DHOSE, RETURN, NO.1

main44412-20190iAT191199601-199708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iAT191,CT19#,ET196,ST19#199211

44443BRACKET, PUMP

main44443-10030iET196199211

main44443-12050iAT191199601-199708

main44443-20050iST191,195199211-199601

main44443-32070iST191199211-199708

44446STRUT, ADJUSTING

main44446-12090iAT191199601-199708

main44446-16051iET196199211

9010510075

main90105-10075

9011910427

main90119-10427

9046716019

main90467-16019

9046716031

main90467-16031

9161161018

main91611-61018

9161161025

main91611-61025

9165160820

main91651-60820

15 parts on this diagram · 14 diagrams in section
