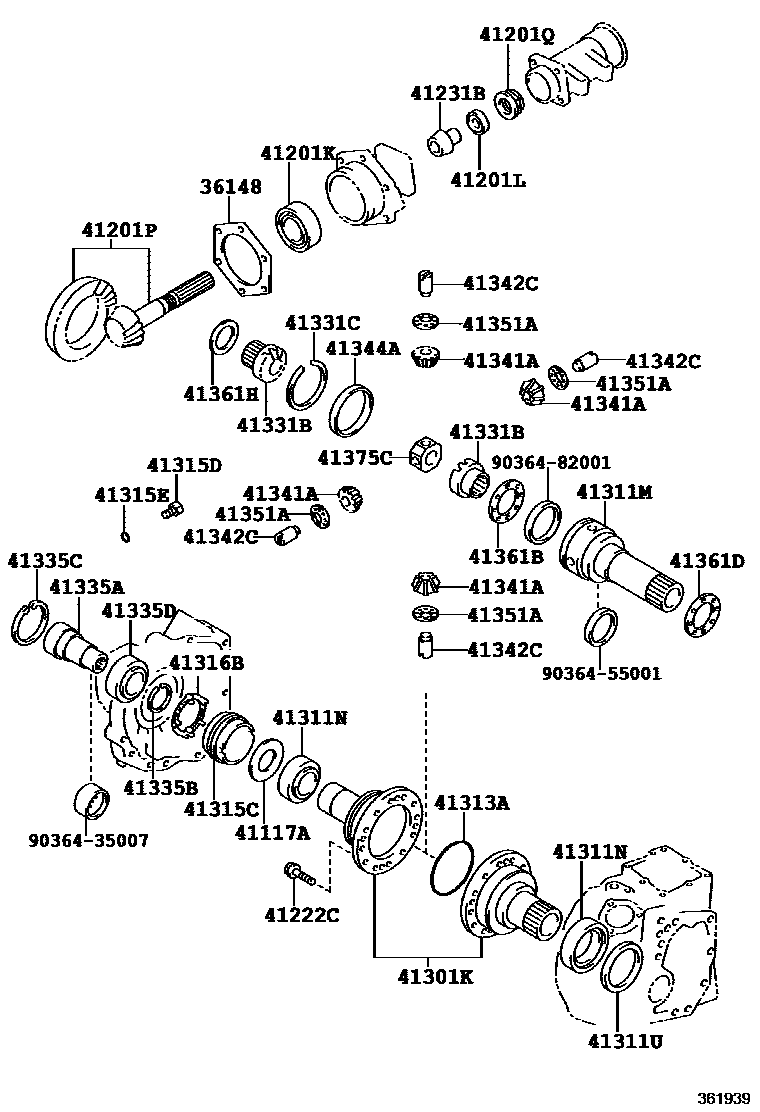

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
41117ARESERVOIR, CENTER DIFFERENTIAL OIL
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41311MCASE, CENTER DIFFERENTIAL
41311NBEARING, TAPERED ROLLER (FOR CENTER DIFFERENTIAL CASE)
41311USHIM (FOR TRANSFER RING GEAR)
41313ARING, O (FOR CENTER DIFFERENTIAL RING GEAR MOUNTING CASE)
sub90301-99155
41315CNUT, TRANSFER GEAR ADJUST
41315DBOLT (FOR TRANSFER GEAR ADJUST NUT)
41315ERING, O (FOR TRANSFER GEAR ADJUST NUT BOLT)
41331BGEAR, CENTER DIFFERENTIAL SIDE
41331CRING, SHAFT SNAP(FOR PINION SHAFT SPACER)
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
41341APINION, CENTER DIFFERENTIAL
41342CSHAFT, CENTER DIFFERENTIAL PINION
41344ASPACER, CENTER DIFFERENTIAL PINION SHAFT, NO.1
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361DWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
41361HWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
41375CHOLDER, CENTER DIFFERENTIAL PINION SHAFT
9036435007
main90364-35007
9036455001
main90364-55001
9036482001
main90364-82001
34 parts on this diagram · 2 diagrams in section
