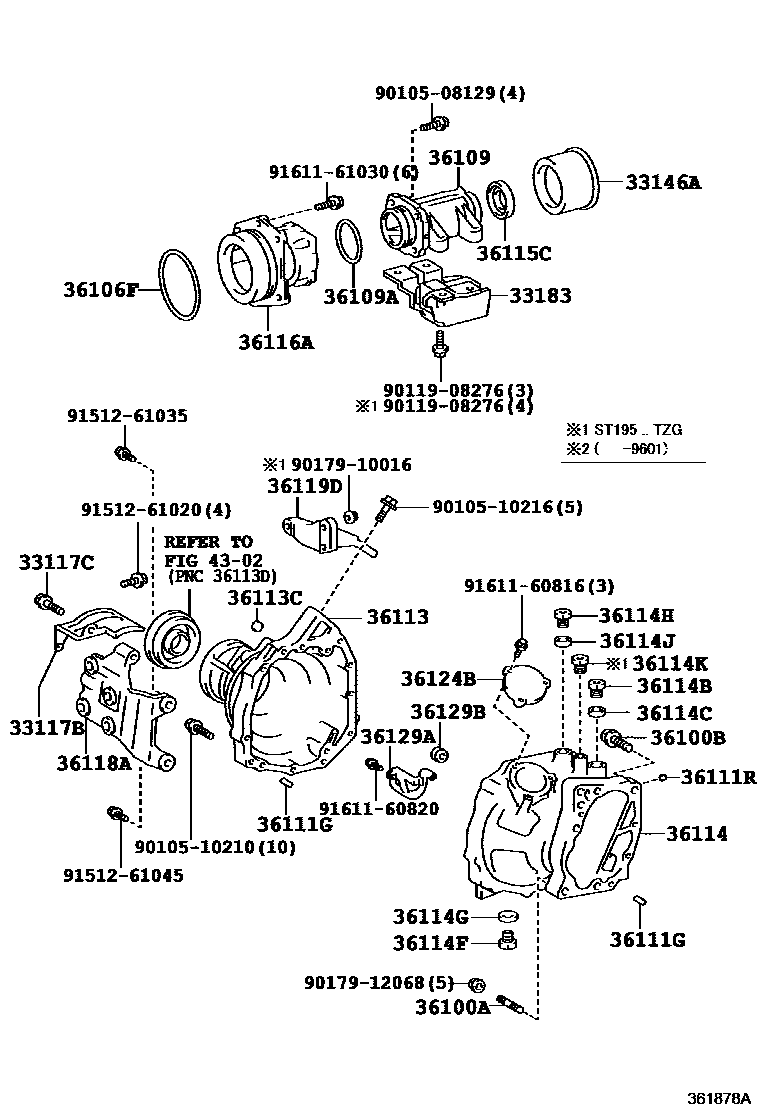

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
33117CBOLT(FOR TRANSFER CASE PROTECTOR)
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
36113CPLUG (FOR TRANSFER CASE)
36114CASE, TRANSFER, LH
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36114KPLUG, TRANSFER SHIFT DETENT BALL
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36116ACAGE, TRANSFER PINION BEARING
36118APLATE, TRANSFER STIFFENER, RH
36119DPLATE, TRANSFER STIFFENER, CENTER
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
4302
9010508129
9010510210
9010510216
9011908276
9017910016
9017912068
9151261020
9151261035
9151261045
9161160816
9161160820
9161161030
41 parts on this diagram · 5 diagrams in section
