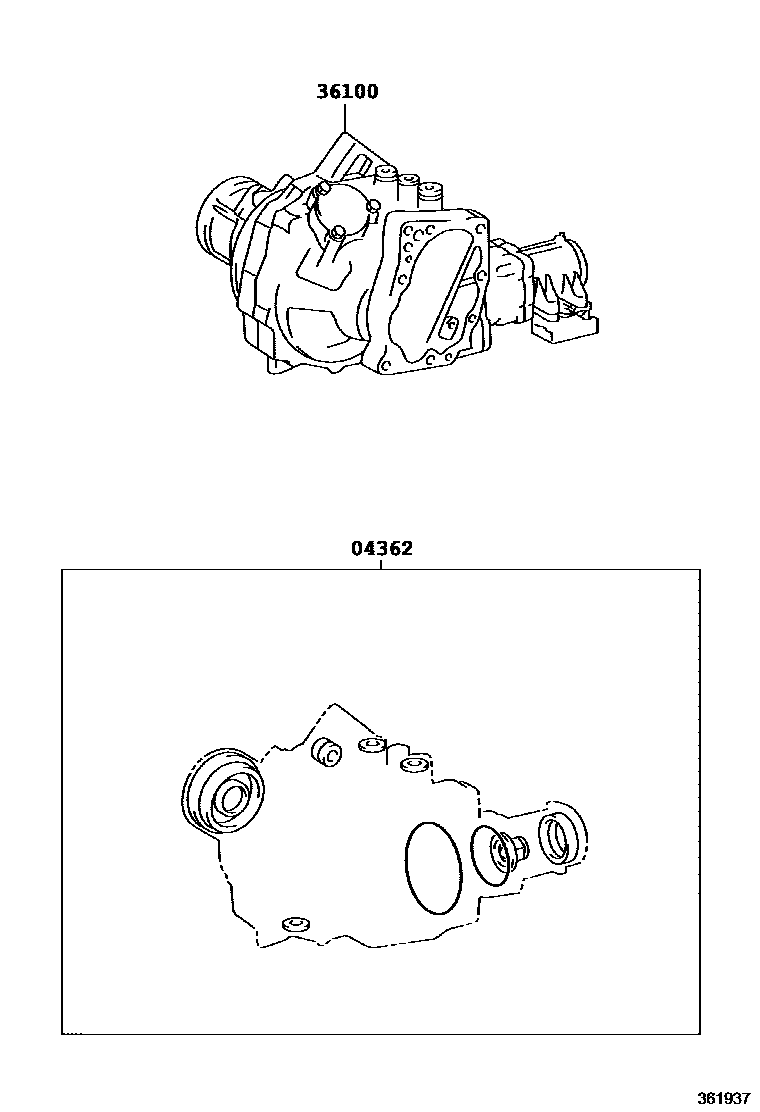

TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1 0003 1

04362GASKET KIT, TRANSFER OVERHAUL

main04362-12030iCT198,199199302-200206

sub04362-12050

sub04362-12060

main04362-20020iST195..4FC199501-199708

sub04362-20021

main04362-20021iST198199908-200206

main04362-32020iCT198,ST195..5F199211-199708

main04362-32030iST195..4FC199211-199501

sub04362-32031

36100TRANSFER ASSY

main36100-12040iCT198199302-199402

main36100-20071iST195..4FC199211-199301

main36100-20072iST195..4FC199301-199402

main36100-20080iST195..5F199211-199402

main36100-20100iCT198199211-199302

main36100-20140iST195..4FC199402-199501

main36100-20160iST195..5F..(CZ,TZ)199402-199708

main36100-20170iCT198199402-199805

main36100-20190iST195..4FC..(CZ,TZ)199501-199601

main36100-20200iST195..4FC..(CZ,TZ)199601-199708

main36100-21010iST195..5F..TZG199502-199708

main36100-21020iST195..4FC..TZG199502-199601

main36100-21040iST195..4FC..TZG199601-199708

main36100-21080iCT199199805

main36100-21090iST198199908

2 parts on this diagram · 3 diagrams in section
