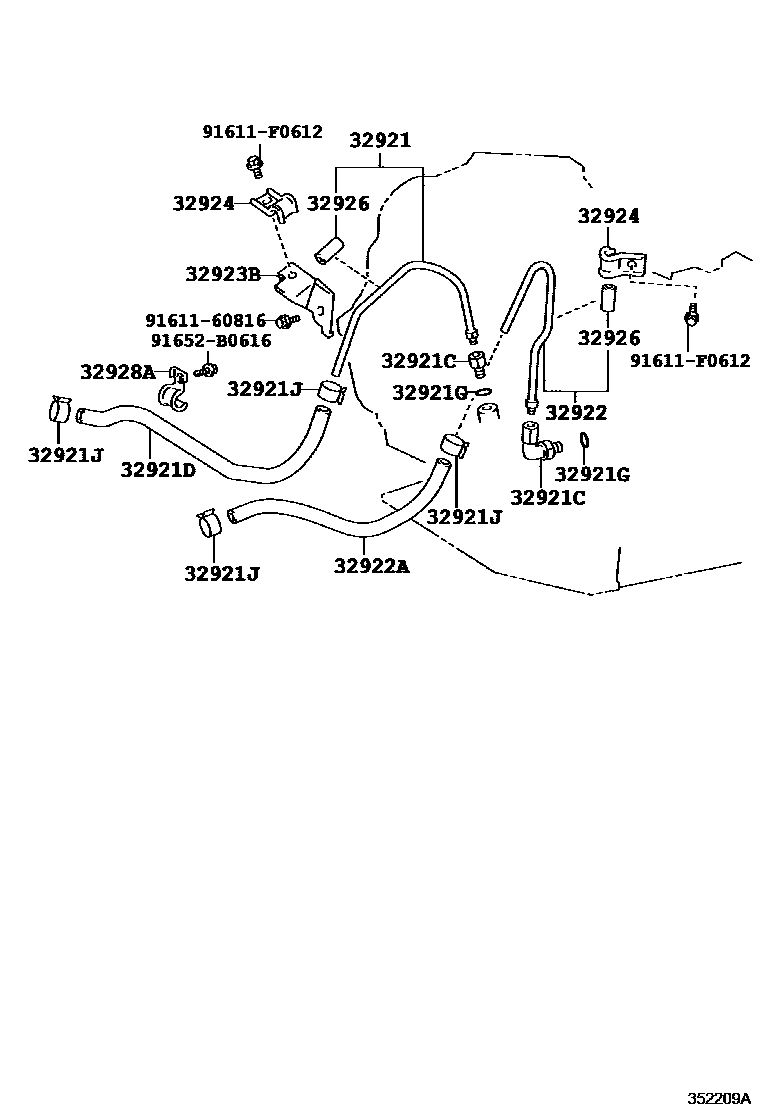

OIL COOLER & TUBE (ATM)

0001 1A132L 0002 1A132L 0003 1A241L 0004 1A241L 0005 1A241E 0006 1A540H 0007 1A241E 0008 1A540H 0010 1A245E

32921TUBE, OIL COOLER INLET, NO.1

main32921-20310iST190,191..4FC199211-199601

main32921-20320iCT190,196..4FC199211-199601

main32921-20390iST191199601-199708

main32921-20400iCT190,196..4FC199601-199705

main32921-20410iAT191..4FC199601-199708

main32921-20420iST195,198..4FC199601

main32921-21011iET196..3FC199211-199601

main32921-21020iET196..3FC199601

main32921-21070iCT190,196,197..4FC199705

main32921-32140iST195..4FC199211-199601

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iCT196,197,ET196..ATM199612-200206

main32901-21010iET196..3FC199601-199612

main32901-32050iET196,ST195..ATM199211-199601

main32901-32060iST195,198..4FC199601

main32918-32010iST195,198..4FC199211

main90404-14007iCT196,197..4FC199705

main90404-14007iCT190,196,ST191..4FC199601-199708

main90404-16031iCT190,196,ST190,191..4FC199211-199601

main90404-16032iAT191..4FC199601-199708

main90407-14003iET196..3FC199601-200206

32921DHOSE(FOR OIL COOLER INLET)

main32942-35011iST195..4FC199601-199708

main32943-21011iET196..3FC199211-199401

main32943-21012iET196..3FC199401-199601

main90445-15052iST191199601-199708

main90445-15061iET196..3FC199601

main90445-15070iCT190,196,197..4FC199601

main90445-17106iST190,191..4FC199211-199601

main90445-17112iCT190,196..4FC199211-199601

main90445-17117iST195..4FC199211-199708

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iCT190,196,ST190,191..4FC199211-200206

main90301-11006iAT191..4FC199601-199708

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iCT190,196,197,ET196,ST191..ATM199601-200204

sub96135-51300

main90467-16013iET196..3FC199211-200204

sub90467-16022

main90467-16022iST198200204

main96135-51300iCT197,ET196..ATM200204

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20360iCT190,196,ST190,191..4FC199211-199601

main32922-20410iCT190,196,197,ST191..4FC199601

main32922-20420iAT191..4FC199601-199708

main32922-20430iST195,198..4FC199601

main32922-21010iET196..3FC199211-199401

sub32922-21011

main32922-21011iET196..3FC199401-199601

main32922-21021iET196..3FC199601

main32922-32021iST195..4FC199211-199601

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15048iST191199601-199708

main90445-15054iCT190,196,197..4FC199601

main90445-15070iET196..3FC199601

main90445-17106iCT190,196,ST19#..4FC199211-199601

main90445-17117iAT191..4FC199601-199708

main90445-17127iST195,198..4FC199601

main90445-17134iET196..3FC199211-199601

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20130iST190,191..4FC199211-199601

main32923-21010iET196..3FC199211

main32923-32060iST195,198..4FC199303

main32924-20090iCT190,196..4FC199211-199601

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20080iET196,ST190,191..ATM199211-199601

sub32924-48010

main32924-20100iST191199601-199708

main90462-10082iCT190,196,197,ET196..ATM199601

main90462-12071iST195,198..4FC199211

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010iCT190,196,ET196,ST190,191..ATM199211-199708

main32926-22010iET196,ST191..ATM199601

main32926-30020iAT191..4FC199211-199708

main32926-32010iST195..4FC199211-199601

main32926-36050iCT190,196..4FC199211-199301

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-20100iET196..3FC199211-199401

main32928-20120iET196..3FC199401-199601

9161160816

main91611-60816

91611F0612

main91611-F0612

91652B0616

main91652-B0616

14 parts on this diagram · 9 diagrams in section
