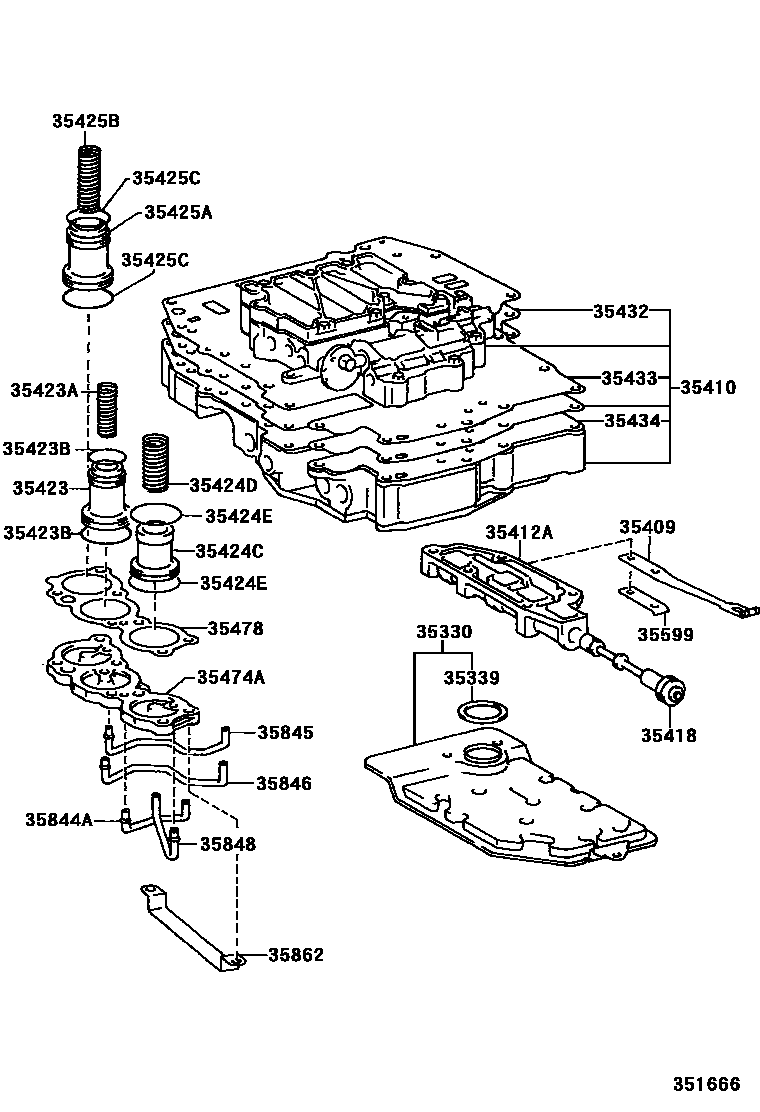

VALVE BODY & OIL STRAINER (ATM)

0001 1A132L 0002 1A132L 0003 1A132L 0004 1A132L 0005 1A241E,A241L 0007 1A241L 0008 1A241E 0010 1A241L 0011 1A241E 0013 1A241E,A241L 0015 1A241L 0016 1A241E 0018 1A540H 0020 1A540H 0022 1A540H 0024 1A540H 0026 1A540H 0027 1A540H 0029 1A245E 0030 1A245E 0031 1A245E 0032 1A245E 0033 1A245E

35330STRAINER ASSY, VALVE BODY OIL

main35330-12020iCT190,196,197,ST190,191..4FC199211

main35330-12030iAT191..4FC199601-199708

main35330-20012iET196..3FC199211-200206

main35330-32030iST195..4FC199211-199404

sub35330-32031

main35330-32031iST195,198..4FC199404

35339GASKET, OIL STRAINER

main35339-12010iCT190,196,197,ST190,191..4FC199211

main35339-12020iAT191..4FC199601-199708

main35339-32010iET196..3FC199211-200206

main35339-32020iST195,198..4FC199211

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-12030iAT191..4FC199601-199708

sub35409-12060

main35409-20010iCT190,196,197,ST190,191..4FC199211

main35409-32030iET196,ST195,198..ATM199211-200206

35410BODY ASSY, TRANSMISSION VALVE

main35410-12391iCT190,196..4FC199211-199510

sub35410-20410

sub82125-20240

main35410-12440iET196..3FC199211-200206

main35410-12640iCT197..4FC199805

main35410-20282iST190,191..4FC199211-199402

sub35410-20283

main35410-20310iCT190..4FC199601-199708

main35410-20340iCT196..4FC199601-199805

main35410-20390iST191199402-199408

sub35410-20391

main35410-20391iST191199408-199708

sub35410-21040

main35410-20400iST190..4FC199402-199408

sub35410-20401

main35410-20401iST190..4FC199408-199601

main35410-20410iCT190,196..4FC199510-199601

main35410-20431iST195..4FC..TZG199502-199708

main35410-20450iAT191..4FC199601-199708

sub35410-20451

main35410-32152iST195..4FC199211-199309

sub35410-32153

main35410-32153iST195..4FC199309-199403

main35410-32154iST195..4FC199403-199501

sub35410-32155

main35410-32155iST195,198..4FC..(CZ,TZ,U,UL,UX)199501

35412ABODY, MANUAL VALVE

main35412-12010iET196..3FC200002-200206

main35412-32010iET196..3FC199211-200002

main35412-32020iST195,198..4FC199211

35418VALVE, MANUAL

main35418-12020iCT190,196,197,ST190,191..4FC199211

main35418-12030iAT191..4FC199601-199708

main35418-32010iET196,ST195,198..ATM199211-200206

35423PISTON, B-2 ACCUMULATOR

main35403-20010iET196..3FC199211-200206

main35403-32010iST195..4FC199211-199408

main35403-33010iST195,198..4FC199408

main35423-12010iAT191..4FC199601-199708

main35423-20030iCT190,196,197,ST190,191..4FC199211

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-21019iST191199211-199601

main90501-23102iST191199601-199708

main90501-23106iET196..3FC199211-200206

main90501-23110iST190..4FC199211-199601

main90501-23113iCT190,196,197..4FC199211

main90501-23126iAT191..4FC199601-199708

main90501-25031iST195,198..4FC199211

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-21006iST195,198..4FC199211

main90301-22185iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main90301-29011iET196..3FC199710-200206

main90301-29187iAT191,CT190,196,ET196,ST190,191..ATM199211-199710

main90301-30005iST195,198..4FC199211

35424CPISTON, C-1 ACCUMULATOR

main35424-12030iAT191..4FC199601-199708

main35424-20020iET196..3FC199211-199706

main35424-20021iET196..3FC199706-200206

main35424-20030iCT190,196,197,ST190,191..4FC199211

main35424-32021iST195,198..4FC199211

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-18101iST190,191..4FC199211-199402

main90501-19023iCT190,196..4FC199211-199601

main90501-19024iCT190,196,197..4FC199601

main90501-19026iST190,191..4FC199402-199708

main90501-20129iET196..3FC199211-199706

main90501-20136iAT191..4FC199601-199708

main90501-20141iET196..3FC199706-200206

main90501-23127iST190,191..4FC199211-199708

main90501-24027iAT191..4FC199601-199708

main90501-25044iCT190,196,197..4FC199211

main90501-29028iST195,198..4FC199211

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-23194iAT191,CT190,196,197,ST191..4FC199211-199706

main90301-24009iET196..3FC199706-200206

main90301-29011iET196..3FC199706-200206

main90301-29187iAT191,CT190,196,ET196,ST190,191..ATM199211-199706

main90301-30005iST195,198..4FC199211

main90301-36006iST195,198..4FC199211

35425APISTON, C-2 ACCUMULATOR

main35405-12010iET196..3FC199211-200206

main35405-32010iST195,198..4FC199211

main35425-12040iAT191..4FC199601-199708

main35425-20020iCT190,196,ST190,191..4FC199211-199805

main35425-20030iCT197..4FC199805

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-20094iST195,198..4FC..(CZ,TZ,U,UL,UX)199211

main90501-20126iST195..4FC..TZG199502-199708

main90501-20130iCT190,196..4FC199211-199805

main90501-22018iST190,191..4FC199211-199708

main90501-23106iET196..3FC199211-200206

main90501-24028iAT191..4FC199601-199708

main90501-25054iCT197..4FC199805

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-23194iST190,191..4FC199211-199708

main90301-25002iST195,198..4FC199211

main90301-26190iAT191,CT190,196,197,ET196..ATM199211-200206

main90301-29011iET196..3FC199710-200206

main90301-29187iAT191,CT190,196,ET196,ST190,191..ATM199211-199710

main90301-34007iST195,198..4FC199211

35432PLATE, VALVE BODY, NO.1

main35432-12180iCT190,196,197..4FC199601

main35432-12250iET196..3FC199705-200206

main35432-18010iCT190,196..4FC199211-199601

main35432-20200iST190,191..4FC199211-199402

main35432-20220iET196..3FC199211-199705

sub35432-12250

main35432-20270iST191199402-199408

main35432-20280iST190..4FC199402-199408

main35432-20290iAT191..4FC199601-199708

main35432-20310iST191199408-199708

main35432-20320iST190..4FC199408-199601

main35432-32092iST195..4FC199403-199502

sub35432-32093

main35432-32093iST195,198..4FC199502

35433GASKET, VALVE BODY, NO.1

main35433-12020iST190,191..4FC199211-199408

main35433-16030iST190,191..4FC199408-199708

main35433-20020iET196..3FC199211-200206

main35433-20030iCT190,196,197..4FC199211

main35433-20050iAT191..4FC199601-199708

main35433-42010iST195,198..4FC199403

35434GASKET, VALVE BODY, NO.2

main35434-12010iST190,191..4FC199211-199408

main35434-16030iST190,191..4FC199408-199708

main35434-20010iCT190,196,197..4FC199211

main35434-20030iAT191..4FC199601-199708

main35434-32020iET196..3FC199211-200206

main35434-42010iST195,198..4FC199403

35474ACOVER, ACCUMULATOR

main35474-12010iCT190,196,197,ST190,191..4FC199211

main35474-20010iET196..3FC199211-200206

main35474-32030iST195,198..4FC199211

35478GASKET, ACCUMULATOR COVER

main35478-32010iCT190,196,197,ET196,ST190,191..ATM199211-200206

main35478-32020iST195,198..4FC199211

35599COVER, MANUAL DETENT SPRING

main35599-12010iCT190,196,197,ST190,191..4FC199211

main35599-12020iAT191..4FC199601-199708

sub35599-12040

sub35409-12060

main35599-32010iET196..3FC199211-200206

main35599-32020iST195,198..4FC199211

35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1

main35844-12030iCT190,196,197,ST190,191..4FC199211

main35844-32021iET196..3FC199211-200206

main35844-32030iST195,198..4FC199211

35845TUBE, RR CLUTCH ACCUMULATOR

main35845-32012iET196..3FC199211-200206

main35845-32020iST195,198..4FC199211

35846TUBE, BRAKE ACCUMULATOR

main35846-12040iCT190,196,197,ST190,191..4FC199211

main35846-20020iET196..3FC199211-200206

main35846-32030iST195,198..4FC199211

35848TUBE, FORWARD CLUTCH ACCUMULATOR

main35848-12030iCT190,196,197,ST190,191..4FC199211

main35848-32011iET196..3FC199211-200206

main35848-32020iST195,198..4FC199211

35862BRACKET, ACCUMULATOR APPLY TUBE

main35862-12020iCT190,196,197,ST190,191..4FC199211

main35862-32011iET196..3FC199211-200206

main35862-32020iST195,198..4FC199211

26 parts on this diagram · 23 diagrams in section
