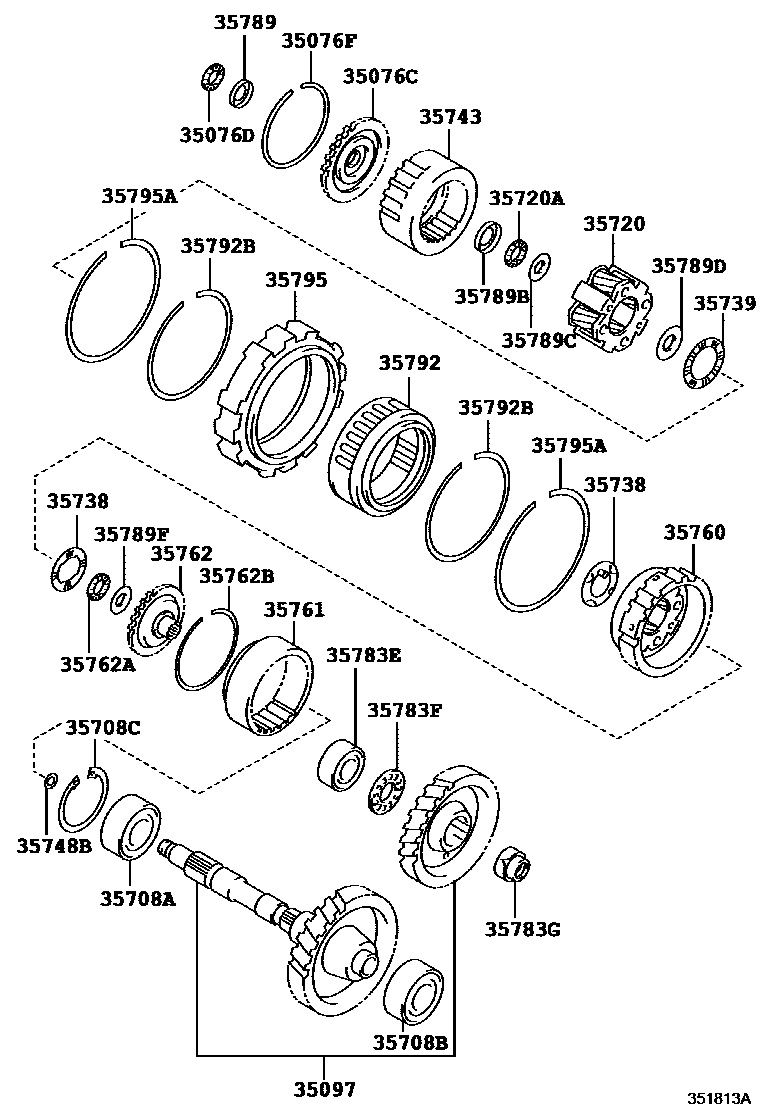

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A241E,A241L 0003 1A132L 0004 1A540H 0006 1A245E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iAT191..4FC199601-199708

main35076-32011iST195,198..4FC199211-200206

main35076-32030iCT190,196,ST190,191..4FC199211-200008

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iCT197,ET196,ST198..ATM199211-200206

main90374-22005iCT196,197..4FC199801-200202

sub90374-22001

main90374-25007iAT191..4FC199601-199708

sub90374-25009

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12040iET196..3FC199211-200206

main35097-12050iAT191..4FC199601-199708

main35097-20010iST191199211-199402

main35097-20060iCT190,196,ST190..4FC199211-199805

main35097-32020iST195,198..4FC199211

35708ABEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT)

main90363-40024iCT190,196,197,ET196,ST190,191..ATM199211-200206

35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)

main90363-40024iST190,191..4FC199211-199402

main90363-40027iET196..3FC199211-200206

main90363-40042iCT190,196,ST191..4FC..(DSL,EFI)199211-199805

35708CRING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING)

main90521-76003iCT190,196,197,ET196,ST190,191..ATM199211-200206

35720GEAR ASSY, FRONT PLANETARY

main35720-12030iAT191..4FC199601-199708

sub35720-32010

main35720-17010iST19#..4FC199211-199307

main35720-32010iCT190,196,197,ET196..ATM199211-200206

sub35720-17010

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iET196,ST198..ATM199211-200206

main90374-22004iAT191..4FC199601-199708

sub90374-22009

main90374-22005iCT196,197..4FC199801-200202

sub90374-22001

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-12010iAT191..4FC199601-199708

main35738-32010iCT190,196,197,ET196,ST190,191..ATM199211-200206

main35738-32030iST195,198..4FC199211

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35743GEAR, FRONT PLANETARY RING

main35743-32040iCT190,196,ET196,ST19#..ATM199211-200206

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

35760GEAR ASSY, REAR PLANETARY

main35760-12020iAT191..4FC199601-199708

main35760-32010iCT190,196,197,ET196,ST190,191..ATM199211-200206

main35760-32030iST191,195..4FC199211-199307

35761GEAR, REAR PLANETARY RING

main35761-32010iCT190,196,197,ET196,ST19#..ATM199211-200206

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iCT190,196,197,ET196,ST190,191..ATM199211-200206

main35762-32030iST195,198..4FC199211

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24002iCT190,196,197,ET196,ST19#..ATM199211-200206

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iCT190,196,197,ET196,ST19#..ATM199211-200206

35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)

main90365-37001iCT190,196..4FC199211-199303

main90365-37004iST190,191..4FC199211-199303

35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)

main90374-41001iAT191,CT190,196,197,ST190,191..4FC199211

35783GNUT(FOR COUNTER DRIVEN GEAR)

main90179-20013iCT190,196,197,ST190,191..4FC199211

main90179-22021iAT191..4FC199601-199708

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iAT191..4FC199601-199708

main35789-32050iCT190,196,197,ET196,ST19#..ATM199211-200206

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iCT190,196,197,ET196,ST19#..ATM199211-200206

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iCT190,196,197,ET196,ST19#..ATM199211-200206

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iCT190,196,197,ET196,ST19#..ATM199211-200206

35792CLUTCH, 1 WAY, NO.2

main35792-12010iET196..3FC199211-200206

sub35792-20020

main35792-20020iST191199211-199303

main35792-32011iCT190,196,ST190,195..4FC199211-199303

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iAT191..4FC199601-200206

main35795-32010iCT190,196,197,ET196,ST19#..ATM199211-199904

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

30 parts on this diagram · 4 diagrams in section
