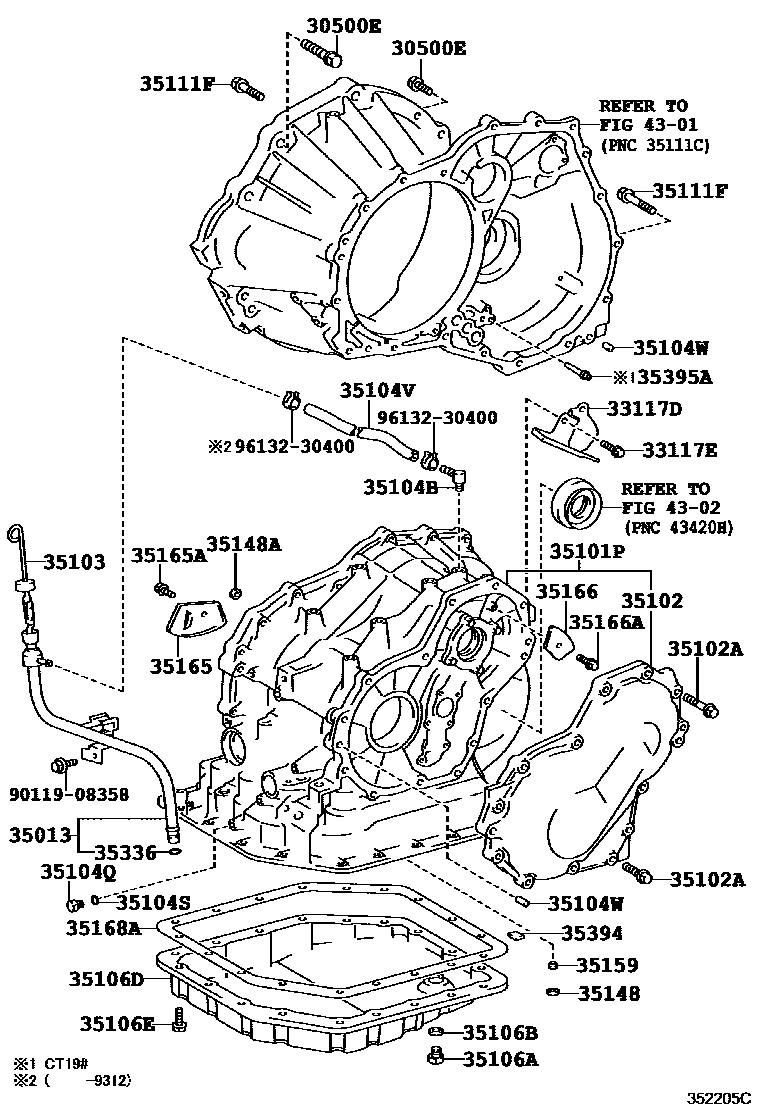

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A241E,A241L 0002 1A241E,A241L 0003 1A132L 0004 1A132L 0005 1A540H 0007 1A245E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040×2iST19#..4FC199303-199601

sub91641-H0820

main90105-10077iAT191,CT190,196,197,ST19#..4FC199211

main90105-10097iET196..3FC199211

main90119-12168iAT191,ET196..ATM199211

main91611-61025×2iET196..3FC199211-199502

sub91612-61025

main91612-41025iET196..3FC199502-199601

sub90119-10223

main91619-61245×2iCT190,196,197,ST19#..4FC199211

main91621-G0614iET196..3FC199211

main91651-41022iST195,198..4FC..(CZ,TZ,U,UL,UX)199303

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAT191,CT190,196,197,ST190,191..4FC199211

main33117-12040iET196..3FC199211

main33117-32050iST195,198..4FC199211

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iCT190,196,ET196,ST190,191..ATM199211-199303

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20520iCT190,196..4FC199211-199312

sub35013-20H01

main35013-20521iCT190,196..4FC199312-199601

main35013-20530iST190,191..4FC199211-199601

main35013-20540iST195..4FC199211-199601

main35013-20630iST191199601-199708

main35013-20641iCT190,196,197..4FC199601

main35013-20660iAT191..4FC199601-199708

main35013-20670iST195,198..4FC199601-200008

main35013-20671iST198200008

main35013-21010iET196..3FC199211-199601

main35013-21021iET196..3FC199601

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-20031iCT190,196,ST190,191..4FC199211-199509

main35101-20032iCT190,196,ST190,191..4FC199509-199701

main35101-20033iCT190,196,ST191..4FC199701-199705

main35101-20034iCT196,197..4FC199705

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iET196..3FC199211-200206

main35102-20030iCT190,196,ST190,191..4FC199211-199705

main35102-20031iCT190,196,197,ST191..4FC199705

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iAT191..4FC199601-199708

main90105-08050×9iET196..3FC199211-200206

main90105-08056×2iET196..3FC199211-200206

main90105-08065×10iCT190,196,197,ST190,191..4FC199211

main90105-08068×3iCT190,196,197,ST190,191..4FC199211

sub90105-08333

main91511-80625×11iAT191..4FC199601-199708

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12180iET196..3FC199601

main35103-20240iST190,191..4FC199211-199601

main35103-20260iCT190,196..4FC199211-199312

sub35013-20H01

main35103-20261iCT190,196..4FC199312-199601

main35103-20270iST195..4FC199211-199408

main35103-20330iST191199601-199708

sub35103-21040

main35103-20340iCT190,196,197..4FC199601

sub35103-21070

main35103-20370iST195,198..4FC199408

main35103-20380iAT191..4FC199601-199708

main35103-21010iET196..3FC199211-199601

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iET196..3FC199211-200206

main90930-03101iCT190,196,197,ST190,191..4FC199211

main90930-03132iAT191..4FC199601-199608

main90930-03146iAT191..4FC199608-199708

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iET196..3FC199211-200206

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iST195,198..4FC199211

35104VHOSE (FOR BREATHER PLUG)

main35121-20021iST195..4FC199211-199407

main35121-20030iST195,198..4FC199407

main90447-11018iCT190,196,ST190,191..4FC199211-199601

main90447-11031iAT191,CT190,196,197,ST191..4FC199601-199808

main90447-11042iCT197..4FC199808

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007×2iCT190,196,ST190,191..4FC199211-199307

main90250-10021×2iAT191..4FC199601-199708

main90250-10232×2iST195,198..4FC199211

main90250-11001×2iCT190,196,197,ST190,191..4FC199211

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCT190,196,197,ST190,191..4FC199211

main90341-10011iAT191..4FC199601-199708

main90341-18016iET196,ST195,198..ATM199211-200206

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAT191,CT190,196,197,ST190,191..4FC199211

main90430-18008iET196,ST195,198..ATM199211-200206

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iET196..3FC199211-200206

main35106-12070iCT190,196,ST190,191..4FC199211-199610

main35106-12110iCT190,196,ST191..4FC199610-199805

main35106-12120iAT191..4FC199601-199708

sub35106-12090

main35106-32032iST195,198..4FC199211

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×15iET196..3FC199211-200206

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iCT190,196,197,ST190,191..4FC199211

main90105-08066iCT190,196,197..4FC199211

main90105-08068×5iCT190,196,197,ST190,191..4FC199211

sub90105-08333

main90105-08071×14iAT191..4FC199601-199708

main90105-08082iCT190,196,197..4FC199211

main90105-08288×3iAT191..4FC199601-199708

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iST190,191..4FC199211-199402

35159GASKET, BRAKE DRUM

main35159-20010iAT191,CT190,196,197,ST190,191..4FC199211

main35159-32011iET196,ST195,198..ATM199211-200206

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT191..4FC199601-199708

main35165-20010iCT190,196,197,ST190,191..4FC199211

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAT191,CT190,196,197,ST190,191..4FC199211

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iCT190,196,ST190,191..4FC199211-199705

main35166-12020iAT191..4FC199601-199705

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAT191,CT190,196,197,ST190,191..4FC199211

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iCT190,196,197,ST190,191..4FC199211-200112

main35168-12030iAT191..4FC199601-199708

main35168-12080iCT197..4FC200112

main35168-32010iET196..3FC199211-200206

main35168-32020iST195..4FC199211-199611

main35168-33020iST195,198..4FC199611

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT191,CT190,196,197,ET196,ST19#..ATM199211

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iAT191,CT190,196,197,ET196,ST190,191..ATM199310-200206

35395ASTRAINER, GOVERNOR OIL

main35395-12020iCT190,196,197..4FC199211

main35395-32020iET196..3FC199211-199404

main35395-32030iET196..3FC199404-200206

4301

4302

9011908358

main90119-08358

9613230400

main96132-30400

33 parts on this diagram · 6 diagrams in section
