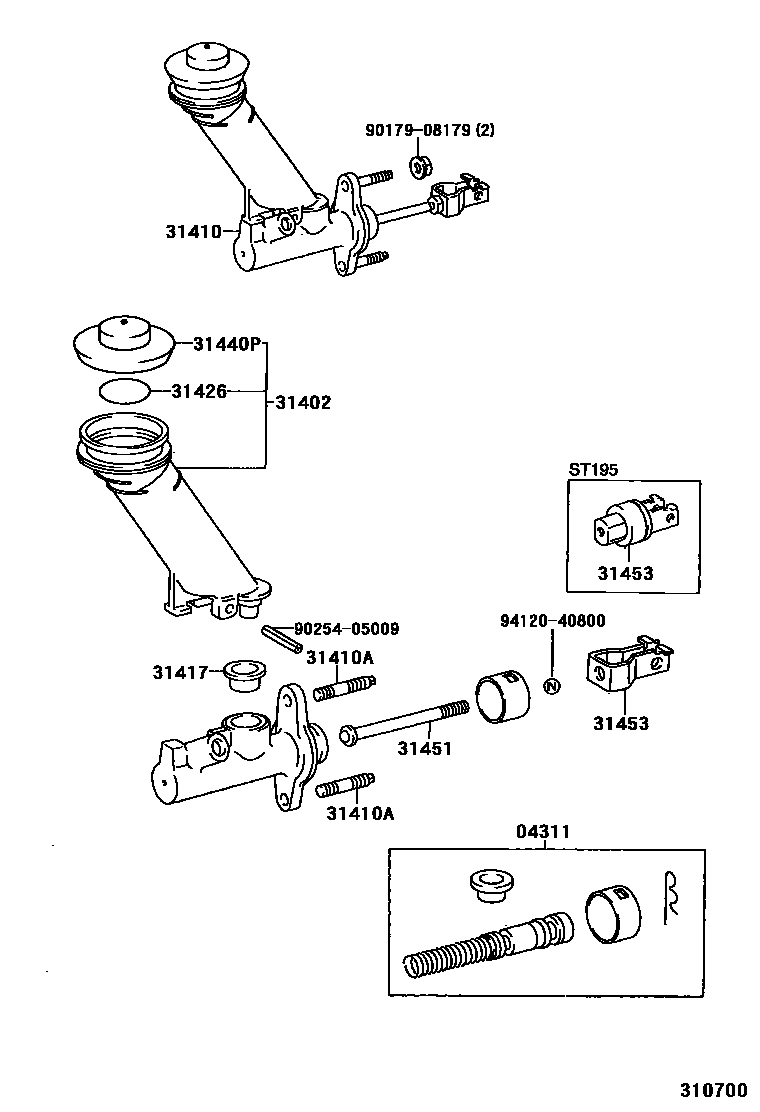

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12070iCT19#,ET196,ST190,195..5F199211-199403

sub04311-12100

main04311-12110iAT191,CT19#,ET196,ST190,195..5F199411

main04311-60150iCT19#,ET196,ST190,195..5F199403-199411

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20080iAT191,ET196,ST190..5F199211

sub31402-20180

main31402-20090iST195..5F199211-199708

sub31402-20180

main31402-20120iCT19#..5F199211

sub31402-20180

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20520iAT191,ET196,ST190..5F199211

sub31410-20640

main31410-20540iST195..5F199211-199708

sub31410-20640

main31410-20570iCT19#..5F199211

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT191,CT19#,ET196,ST190,195..5F199211

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAT191,CT19#,ET196,ST190,195..5F199211

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAT191,CT19#,ET196,ST190,195..5F199211

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAT191,CT19#,ET196,ST190,195..5F199211

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iAT191,ET196,ST190..5F199211-199606

main31451-30200iCT19#,ST195..5F199606

main31451-35070iAT191,ET196..5F199606

main31451-35080iCT19#,ST195..5F199211-199403

main31451-36040iCT19#,ST195..5F199403-199606

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iCT19#,ST195..5F199211

main31453-10020iET196,ST190..5F199211-199304

main31453-10040iAT191,ET196,ST190..5F199304

9017908179

main90179-08179

9025405009

main90254-05009

9412040800

main94120-40800

12 parts on this diagram · 4 diagrams in section
