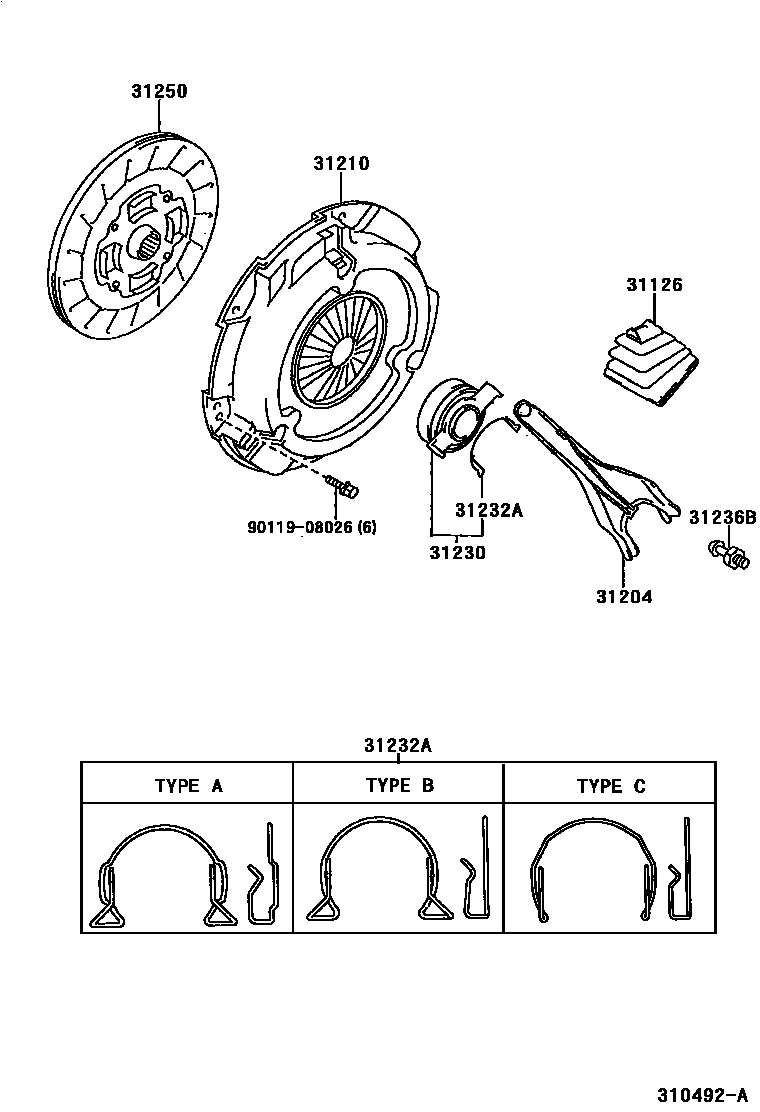

CLUTCH & RELEASE FORK

0001 1C51 0002 1S50,S51,E56F,E57F 0003 1C58

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT191,ET196..5F199211-200206

main31126-32010iCT19#,ST190,195..5F199211-200206

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iET196..5F199211-200206

main31204-17010iAT191..5F199601-199708

main31204-20100iCT19#,ST190,195..5F199211-200206

31210COVER ASSY, CLUTCH

main31210-12191iET196..5F199708

sub31210-12192

main31210-12201iAT191..5F199601-199708

sub31210-52050

main31210-16091iET196..5F199211-199503

sub31210-16092

main31210-16092iET196..5F199503-199708

sub31210-52070

main31210-20330iST195..5F199211-199305

sub31210-20331

main31210-20331iST195..5F..(CZ,TZ)199305-199708

sub31210-20332

main31210-32051iST190..5F199211-199601

sub31210-32074

main31210-32062iCT196,197,198,199..5F199211

sub31210-12270

main31210-32121iCT190..5F199211-199601

sub31210-12320

main31210-32130iCT190..5F..TD;ST195..5F..TZG199502-199708

sub31210-33030

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iET196..5F199601-199907

sub31230-16061

main31230-12170iAT191..5F199601-199708

sub31230-12171

main31230-16060iET196..5F199211-199601

sub31230-16061

main31230-20170iCT198,199,ST195..5F199211-200206

main31230-32060iCT190,196,197,ST190..5F199211-200206

main31230-52010iET196..5F199907-200206

sub31230-52011

31232ACLIP, RELEASE BEARING HUB

main31232-12040iET196..5F199601-200206

main31232-12070iAT191..5F199601-199708

main31232-16031iET196..5F199211-200206

main31232-20020iCT19#,ST190,195..5F199211-200206

main31232-32050iCT190,196,197,ST190..5F199211-200206

main31232-52010iET196..5F199907-200206

31236BSUPPORT, RELEASE FORK

main31236-12011iET196..5F199211-200206

main31236-12020iAT191..5F199601-199708

main31236-20060iCT198,199,ST195..5F199211-200206

main31236-32010iCT190,196,197,ST190..5F199211-200206

31250DISC ASSY, CLUTCH

main31250-12270iCT198199211-199805

sub31250-12271

main31250-12280iCT190..5F199211-199505

sub31250-12281

main31250-12281iCT190..5F199505-199601

sub31250-12282

main31250-12310iET196..5F199211-199505

sub31250-12380

main31250-12370iAT191,ET196..5F199511-199708

sub31250-20280

main31250-12380iET196..5F199505-199511

sub31250-12370

main31250-17040iST190..5F199505-199601

sub31250-20250

main31250-20140iST195..5F199211-199401

sub31250-20141

main31250-20141iST195..5F..(CZ,TZ)199401-199708

sub31250-20142

main31250-20240iST195..5F..TZG199505-199601

sub31250-20241

main31250-20280iAT191..5F199608-199708

sub31250-12570

main31250-20290iCT199199805-199906

sub31250-20291

main31250-20291iCT199199906

sub31250-20292

main31250-20300iST195..5F..TZG199607-199708

sub31250-20301

main31250-32042iST190..5F199211-199505

sub31250-20250

main31250-32100iCT196,197..5F;CT190..5F..TD199211-199906

sub31250-32101

main31250-32101iCT197..5F199906

sub31250-32102

main31250-32110iST195..5F..TZG199502-199607

sub31250-20300

9011908026

main90119-08026

8 parts on this diagram · 3 diagrams in section
