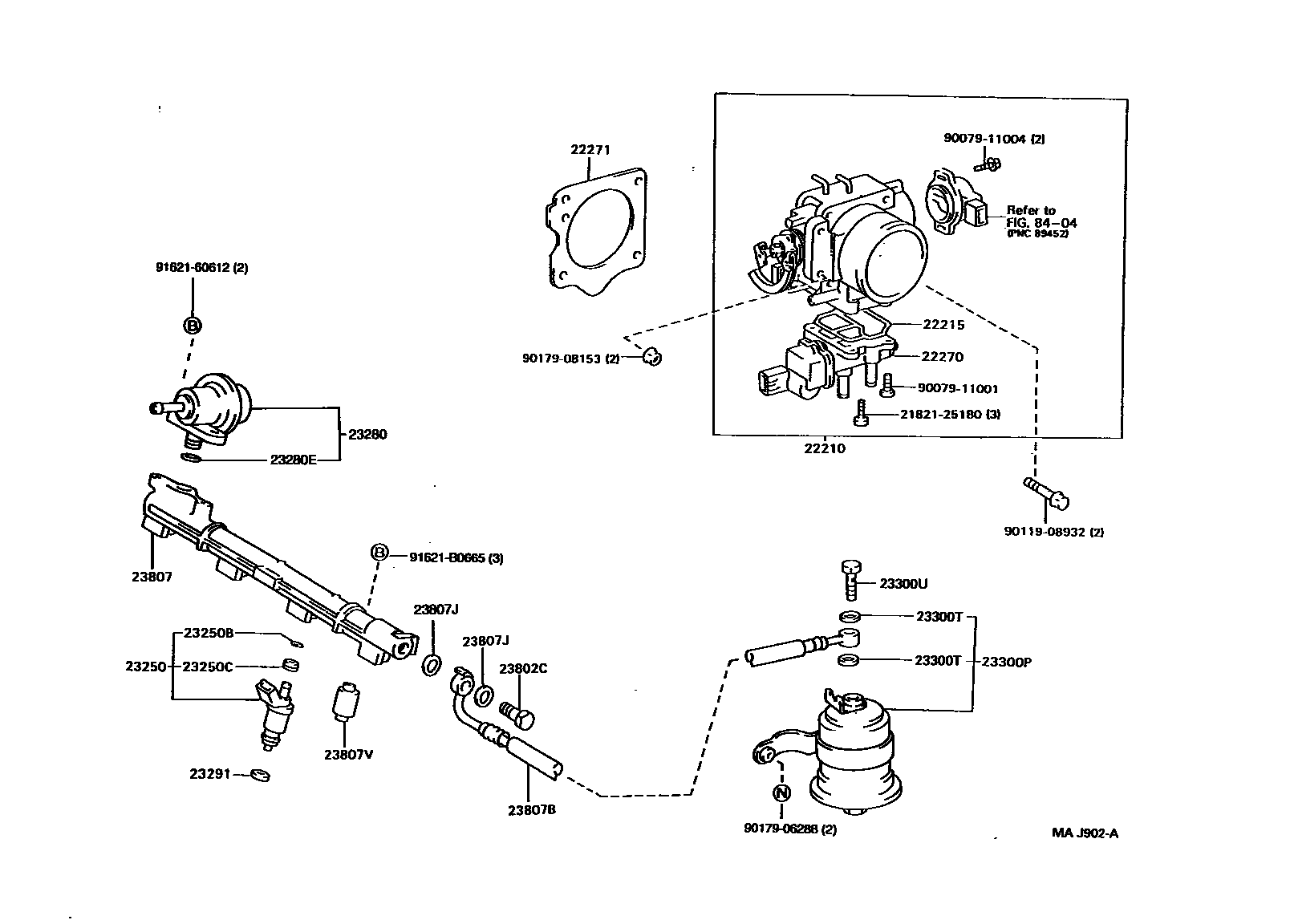

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1��(������ ����-�) 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

22210BODY ASSY, THROTTLE

main22210-11360i5EFE..ET196..5F199211-199708

main22210-11370i5EFE..ET196..3FC199211-199708

sub22210-11280

main22210-11590i5EFE..ET196..5F199708

main22210-11600i5EFE..ET196..3FC199708

main22210-16870i7AFE..AT191199601-199708

main22210-74800i4SFE..ST190..5F199211-199601

main22210-74810i4SFE..ST190..4FC199211-199601

main22210-74820i3SFE..ST195..5F199211-199309

sub22210-7A100

main22210-74830i3SFE..ST191,195..4FC199211-199309

sub22210-7A110

main22210-7A060i3SGE..ST195199502-199601

main22210-7A100i3SFE..ST195..5F199309-199601

main22210-7A110i3SFE..ST191,195..4FC199309-199601

main22210-7A550i3SGE..ST195199601-199708

main22210-7A560i3SFE..ST19#199601-199607

main22210-7A610i3SFE..ST19#199607

22215GASKET, THROTTLE BODY COVER

main22215-11110i5EFE..ET196199211-199708

main22215-74380i3SGE..ST195199502-199708

main22215-74380i3SFE..ST191199211-199402

main22215-74400i5EFE..ET196199211-199708

main22215-74400i3SFE..ST191199402-199601

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-11020i5EFE..ET196199708

main22270-16060i7AFE..AT191199601-199708

main22270-74040i3SFE..ST191,195..4FC199211-199309

sub22270-74250

main22270-74050i3SFE..ST195..5F199211-199309

sub22270-74240

main22270-74140i4SFE..ST190..5F199211-199601

main22270-74150i4SFE..ST190..4FC199211-199601

main22270-74160i3SFE..ST191199211-199402

main22270-74210i3SGE..ST195199502-199601

main22270-74240i3SFE..ST195..5F199309-199601

main22270-74250i3SFE..ST191,195..4FC199309-199601

main22270-74260i3SFE..ST191199402-199601

main22270-74270i3SFE..ST19#199601-199607

MARK 22270-74270

main22270-74320i3SGE..ST195199601-199708

main22270-74350i3SFE..ST19#199607

MARK 22270-74350

22271GASKET, THROTTLE BODY

main22271-11020i5EFE..ET196199211-199407

sub22271-11030

main22271-11030i5EFE..ET196199407

main22271-15020i7AFE..AT191199601-199708

main22271-74021i3SFE,4SFE..ST19#199211-199309

sub22271-74022

main22271-74022i3SFE,4SFE..ST19#199309-199601

main22271-74070i3SFE..ST19#199601

main22271-88460i3SGE..ST195199502-199604

sub22271-88461

main22271-88461i3SGE..ST195199604-199708

23250INJECTOR ASSY, FUEL

main23209-11050i5EFE..ET196199211-199708

main23209-11130i5EFE..ET196199708

main23209-16170i7AFE..AT191199601-199708

main23209-74040i3SFE..ST191,195199211-199601

main23209-74130i4SFE..ST190199211-199601

main23209-74160i3SGE..ST195199502-199708

main23209-74170i3SFE..ST19#199601

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3S#,4SFE..ST19#199211-199812

main90301-07024i3SFE..ST198199812

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i7AFE..AT191199211-199708

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11040i5EFE..ET196199211

main23280-16150i7AFE..AT191199601-199708

main23280-74100i3SFE,4SFE..ST19#199211-199404

main23280-74110i3SGE..ST195199502-199708

sub23280-74120

main23280-74151i3SFE,4SFE..ST19#199404

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i7AFE..AT191199211-199812

main90301-07024i5EFE..ET196199812

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i5EFE..ET196199211-199708

23300PFILTER, FUEL(FOR EFI)

main23300-19365i5EFE..ET196199211-199601

main23300-19465i7AFE..AT191199601-199708

main23300-79335i3S#,4SFE..ST19#199211-199601

23300TGASKET(FOR FUEL FILTER)

main90430-12026i7AFE..AT191199211-199708

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i3S#,4SFE..ST19#199211-199608

main96341-11200i7AFE..AT191199608-199708

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i3SFE,4SFE..ST19#199211

main90401-08010i5EFE..ET196199211-199305

sub90401-08004

main90401-12097i7AFE..AT191199601-199708

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-11030i5EFE..ET196199211

main23814-16140i7AFE..AT191199601-199708

sub23814-16160

main23814-74070i3SFE,4SFE..ST19#199211-199404

sub23814-74110

main23814-74100i3SFE,4SFE..ST19#199404-199405

sub23814-74110

main23814-74110i3SFE,4SFE..ST19#199405

sub23814-74080

main23814-88460i3SGE..ST195199502-199708

23807BHOSE, FUEL DELIVERY PIPE

main23271-16160i7AFE..AT191199601-199708

main23271-74380i3SFE,4SFE..ST19#199211-199601

main23271-74570i3SFE..ST19#199601

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026i3SGE..ST195199502-199708

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23890-11010i5EFE..ET196199211-199512

main23891-11020i5EFE..ET196199512

main90560-11020i3SFE,4SFE..ST19#199211-199508

main90561-06017i7AFE..AT191199601-199708

main90561-08051i3SGE..ST195199502-199708

main90561-08053i3SFE,4SFE..ST19#199508

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011908932

main90119-08932

9017906288

main90179-06288

9017908153

main90179-08153

9162160612

main91621-60612

91621B0665

main91621-B0665

27 parts on this diagram · 16 diagrams in section
