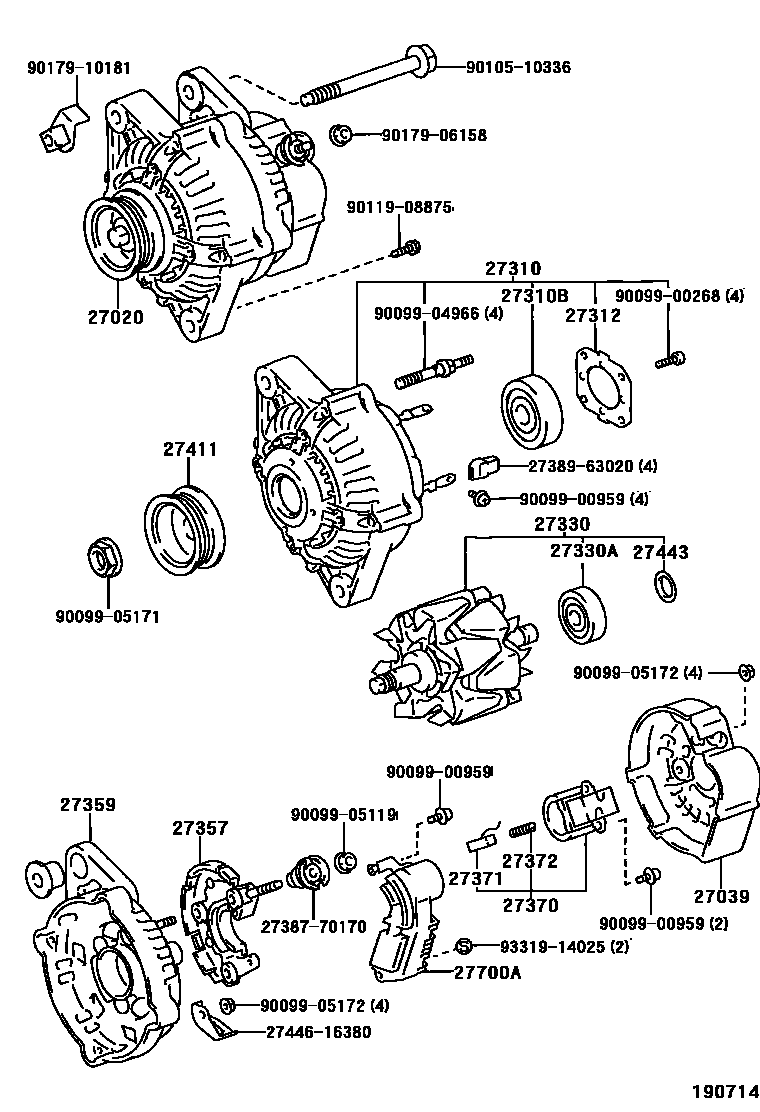

ALTERNATOR

0001 112V 70A 0002 112V 70A,80A 0003 112V 60A 0004 112V 70A 0005 112V 70A 0006 112V 80A 0007 112V 80A 0008 112V 70A 0009 112V 80A 0010 112V 80A 0011 112V 80A 0013 112V 80A

27020ALTERNATOR ASSY

main27060-11250i5EFE..ET196..5F199211

main27060-11280i5EFE..ET196..3FC199211-199305

sub27060-11281

main27060-11281i5EFE..ET196..3FC199305

main27060-16380i7AFE..AT191..5F199601-199708

main27060-16390i7AFE..AT191..4FC199601-199705

sub27060-16440

main27060-16440i7AFE..AT191..4FC199705-199708

sub27060-16450

main27060-64130i2C..CT19#..5F199211-199601

main27060-64150i2C..CT190,196..4FC199211-199601

main27060-64270i3CE..CT197,199;2C#..CT190,196..4FC199601

main27060-64280i2C#..CT19#..5F199601-199805

sub27060-64270

main27060-74350i3SGE..ST195..5F199502-199601

sub27060-74351

main27060-74400i3SFE,4SFE..ST190,195..5F199211-199601

sub27060-74370

main27060-74410i3SFE,4SFE..ST19#..4FC199211-199601

main27060-74570i3SGE..ST195..4FC199502-199601

sub27060-74571

main27060-74580i3SFE..ST195..5F199601-199708

sub27060-74630

main27060-74590i3SFE..ST19#..4FC199601-199708

sub27060-74640

main27060-74610i3SGE..ST195199601-199708

sub27060-74660

main27060-74650i3SFE..ST198199908

27039COVER, ALTERNATOR REAR END

main27039-11180i5EFE..ET196..5F199601

main27039-11190i5EFE..ET196..5F199211-199601

main27039-16380i7AFE,3SFE..AT191,ST195..5F199601-199708

main27039-20020i2C#,3CE..CT19#199601-200104

sub27039-28090

main27039-28090i3CE..CT19#200104

main27039-55080i2C,3SFE..CT19#,ST191;5EFE,3SFE,4SFE..ET196,ST190,195..ATM199211-200104

sub27039-70470

main27039-55080i3SGE..ST195..4FC199502-199708

sub27039-70470

main27039-70470i5EFE,3SFE..ET196,ST198..ATM200104

main27039-73020i3SGE..ST195..5F199502-199601

sub27039-16380

main27039-73020i3SFE,4SFE..ST190,195..5F199211-199701

sub27039-16380

main27039-74360i3SGE..ST195199502-199708

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11160i5EFE..ET196..5F199211

main27310-15170i7AFE..AT191..5F199601-199708

main27310-15180i7AFE..AT191..4FC199601-199705

sub27310-16430

main27310-16270i5EFE..ET196..3FC199211

main27310-16430i7AFE..AT191..4FC199705-199708

main27310-64450i2C#..CT19#..5F199211-199805

main27310-64470i3CE..CT197,199;2C#..CT190,196..4FC199211

main27310-70100i3SFE,4SFE..ST190,195..5F199211-199708

main27310-74120i3SFE,4SFE..ST19#..4FC199211-199708

main27310-74430i3SGE..ST195..5F199502-199601

main27310-74440i3SGE..ST195..4FC199502-199708

main27310-74490i3SFE..ST198199908

sub27310-70440

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i3S#,4SFE..ST190,195..5F199211-199708

main90099-10192i2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM199211-199601

main90099-10198i5EFE..ET196..5F199211

sub90099-10229

27312PLATE, RETAINER

main27312-42010i2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM199211-199601

main27312-70200i7AFE,3SFE..AT191,ST195..5F199211-199708

main27312-72120i5EFE..ET196..5F199211

27330ROTOR ASSY, ALTERNATOR

main27330-11160i5EFE..ET196..5F199211

main27330-16390i7AFE..AT191..4FC199609-199708

main27330-64570i3SFE..ST195..5F199601-199708

main27330-72101i7AFE..AT191..5F199211-199701

main27330-72280i3CE..CT197,199;2C#..CT190,196..4FC199211

sub27330-74550

main27330-74730i3SFE..ST198199908

sub27330-74550

main27330-76030i3SGE..ST195;2C#..CT19#..5F;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM199211-199609

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i5EFE..ET196..3FC;7AFE,2C#,3CE,3S#,4SFE..AT191,CT19#,ST19#199211

main90099-10154i5EFE..ET196..5F199211

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11170i5EFE..ET196..5F199211-199601

main27357-11180i5EFE..ET196..5F199601

main27357-16380i7AFE..AT191..5F199601-199708

main27357-55080i2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM199211-199601

main27357-63020i3SFE..ST195..5F199211-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15180i7AFE..AT191..4FC199601-199708

main27359-16270i5EFE..ET196..3FC199211

main27359-16380i7AFE..AT191..5F199601-199708

main27359-42010i3SFE,4SFE..ST19#..4FC199211-199601

sub27359-74330

main27359-43160i3SFE,4SFE..ST190,195..5F199211-199601

sub27359-43161

sub27384-16380

main27359-43161i3SFE..ST195..5F199601-199701

main27359-43162i3SFE..ST195..5F199701-199708

main27359-64450i2C#,3CE..CT19#199211

main27359-72150i5EFE..ET196..5F199211-199601

main27359-72151i5EFE..ET196..5F199601

main27359-74130i3SGE..ST195..5F199502-199601

sub27359-74131

sub27384-16380

main27359-74330i3SFE..ST19#..4FC199601-199708

main27359-74510i3SGE..ST195199502-199605

main27359-74550i3S#..ST195,198..TZG,U,UL,UX199605

sub27359-70440

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i3S#,4SFE..ST190,195..5F199211-199708

main27370-54450i5EFE..ET196..5F199211-199601

sub27370-58320

main27370-58320i5EFE..ET196..5F199601

main27370-75060i2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM199211-199601

27371BRUSH, ALTERNATOR

main27371-70300i3SGE..ST195..5F199211-199601

27372SPRING, ALTERNATOR BRUSH

main27372-63020i3SGE..ST195..5F199211-199601

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-11060i5EFE..ET196..3FC199211

main27411-11160i5EFE..ET196..5F199211

main27411-16180i7AFE..AT191..5F199601-199708

main27411-16211i3S#,4SFE..ST190,195..5F199211-199708

main27411-42030i3S#,4SFE..ST19#..4FC199211-199601

main27411-64320i2C..CT19#199211-199601

main27411-64360i2C#,3CE..CT19#199601

27443COVER, ALTERNATOR BEARING

main27443-63020i7AFE,2C#,3CE,5EFE,3S#,4SFE..AT191,CT19#,ET196,ST19#199211

27700AREGULATOR ASSY, GENERATOR

main27700-11060i5EFE..ET196..5F199211

main27700-11070i5EFE..ET196..3FC199211-199305

main27700-62010i2C#,3CE..CT19#199601

main27700-65010i2C..CT19#199212-199601

sub27700-35040

main27700-74030i2C,5EFE..CT190,196,ET196..ATM199211-199601

main27700-74040i7AFE,3S#,4SFE..AT191,ST19#199211

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

2744616380CLIP, ALTERNATOR CORD

main27446-16380

9009900268

main90099-00268

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510336

main90105-10336

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

9331914025

main93319-14025
