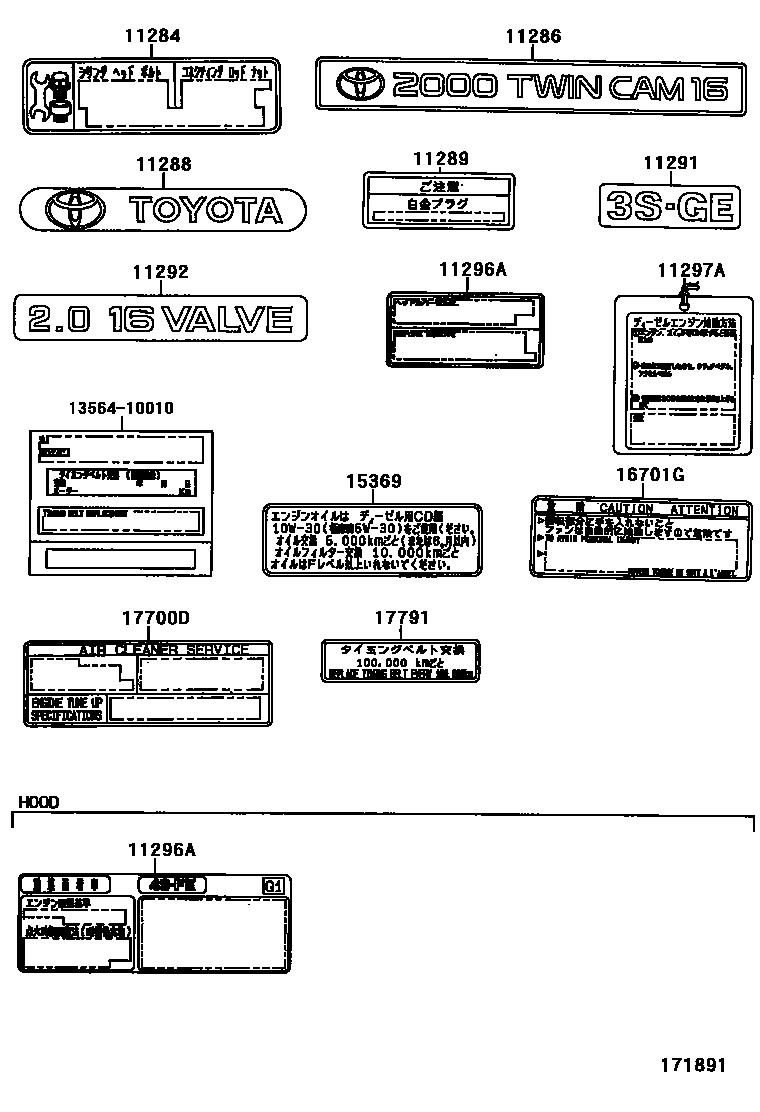

CAUTION PLATE & NAME PLATE (ENGINE)

0001 1 0002 1

11284PLATE, ENGINE BOLT INFORMATION

main11284-74040i3SFE,4SFE..ST19#199305-199403

main11284-74050i3SFE,4SFE..ST19#199211-199305

sub11284-74040

11286PLATE, ENGINE SPECIFICATION

main11286-88460i3SGE..ST195199502-199602

sub11286-88461

main11286-88461i3SGE..ST195199602-199708

11288PLATE, ENGINE SYSTEM

main11288-74070i3SFE..ST191,195199211-199305

11289PLATE, SPARK PLUG CAUTION

main11289-16010i3SGE..ST195199502-199708

main11289-46020i7AFE..AT191199601-199708

main11289-62020i5EFE,3SFE..ET196,ST198199601-199708

11291PLATE, ENGINE NAME

main11291-88460i3SGE..ST195199502-199708

11292PLATE, ENGINE NAME, NO.2

main11292-74100i3SFE..ST191,195199211-199305

sub11292-74101

main11292-74101i3SFE..ST191,195199305-199601

main11292-74130i4SFE..ST190199211-199601

11296ALABEL, ENGINE SERVICE INFORMATION

main11293-74111i3SFE..ST191,195199211-199405

sub11293-74112

main11293-74112i3SFE..ST191,195199405-199504

sub11296-74043

main11296-11211i5EFE..ET196199211-199505

sub11296-11320

main11296-11320i5EFE..ET196199505-199708

main11296-11370i5EFE..ET196199708-200205

main11296-11371i5EFE..ET196200205

main11296-16230i7AFE..AT191199601-199708

main11296-64010i2C#,3CE..CT19#199211

main11296-74041i4SFE..ST190199211-199405

sub11296-74042

main11296-74042i4SFE..ST190199405-199504

sub11296-74112

main11296-74043i3SFE..ST191,195199504-199601

main11296-74112i4SFE..ST190199504-199601

main11296-74120i3SGE..ST195199502-199504

sub11296-74121

main11296-74121i3SGE..ST195199504-199601

sub11296-74122

main11296-74122i3SGE..ST195199601-199708

main11296-74170i3SFE..ST19#199601-200205

main11296-74171i3SFE..ST198200205

11297APLATE, ENGINE START CAUTION

main11297-64010i2C..CT19#199211-199402

15369PLATE, ENGINE OIL CAUTION

main15369-54010i2C#..CT19#199211-199805

main15369-64010i3CE..CT19#199805

16701GLABEL, CAUTION

main88723-12100i2C..CT19#;3SFE..ST195..4FC199211-199601

main88723-20080i2C..CT196,198;2C..CT190..4FC199511-199705

main88723-20081i7AFE,2C#,3CE,5EFE,3S#..AT191,CT19#,ET196,ST19#199705

sub16793-31070

17700DPLATE, ENGINE CAUTION

main11296-55020i2C..CT19#199211-199505

main11296-64020i2C#..CT19#199505-199805

main11296-64031i3CE..CT19#199805-200205

main11296-64032i3CE..CT19#200205-200206

17791LABEL, MAINTENANCE INFORMATION

main17791-11080i5EFE..ET196199211-199306

sub17791-15010

main17791-15010i7AFE,5EFE,3SGE..AT191,ET196,ST195199306

main17791-55010i2C#,3CE..CT19#199211

main17791-74040i3SFE,4SFE..ST19#199211

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

13 parts on this diagram · 2 diagrams in section
