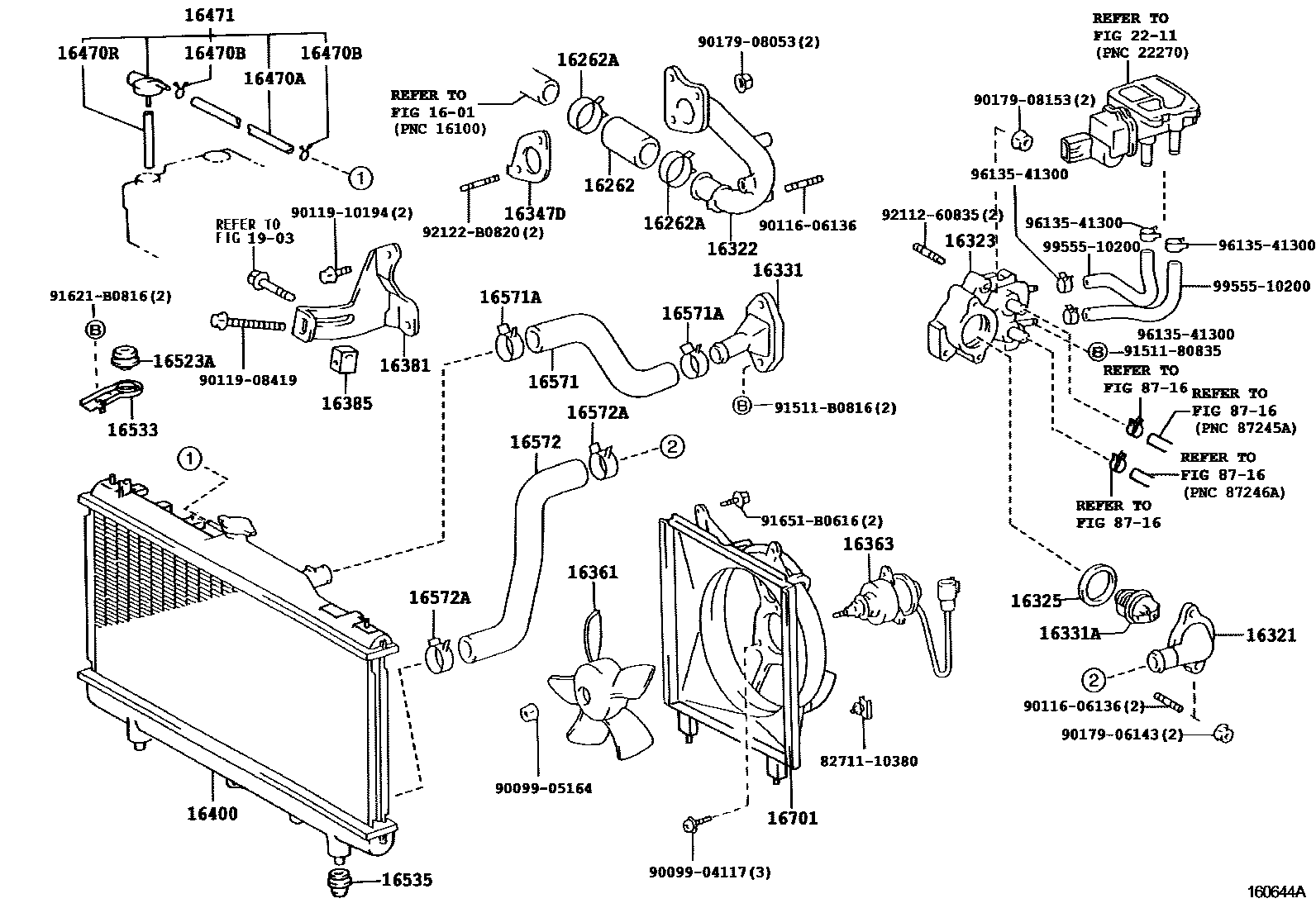

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

1601

16262HOSE, WATER INLET

main16262-10010i5EFE..ET196..5F199211-199410

sub16262-10011

main16262-10020i5EFE..ET196..3FC199211-199410

sub16262-10022

main16262-10030i5EFE..ET196..5F199410

main16262-10040i5EFE..ET196..3FC199410

main16262-15040i7AFE..AT191199601-199708

sub16262-16030

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i5EFE..ET196199211

sub90467-34004

main90467-37002i7AFE..AT191199601-199708

sub90467-37005

16321INLET, WATER

main16321-11011i5EFE..ET196199211

main16321-15040i7AFE..AT191199601-199708

main16321-64020i2C#,3CE..CT19#199211

main16321-74030i3SFE,4SFE..ST19#199211-199601

sub16321-74050

main16321-74050i3SFE..ST19#199601

main16321-88460i3SGE..ST195199502-199708

16322PIPE, WATER INLET

main16322-11161i5EFE..ET196199211-199407

main16322-11162i5EFE..ET196199407

main16322-16060i7AFE..AT191199601-199708

16323HOUSING, WATER INLET

main16323-15180i7AFE..AT191199601-199708

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3SFE,4SFE..ST19#199211-199301

sub16325-63011

main16325-63011i2C#,3CE..CT19#199301-199708

16331OUTLET, WATER

main16304-88465i3SGE..ST195199502-199708

main16331-15080i7AFE..AT191199601-199708

main16331-64030i2C..CT19#199412-199601

main16331-64070i2C..CT19#199211-199412

main16331-64120i2C..CT196,198199601-199805

main16331-64150i3CE..CT19#199805

main16331-74200i3SFE,4SFE..ST19#199211-199601

main16331-74210i3SFE..ST19#199607-199707

W(PNC 16331B)

sub16331-74260

main16331-74210i3SFE..ST19#199601-199607

sub16331-74260

main16331-74220i3SFE..ST19#199607

main16331-74260i3SFE..ST19#199707

W(PNC 16331B)

16331ATHERMOSTAT

main90916-03046i5EFE..ET196199211

main90916-03065i7AFE..AT191199601-199708

sub90916-03109

main90916-03090i3SFE,4SFE..ST19#199211-200206

main90916-03100i3SGE..ST195199502-199708

16347DGASKET, WATER BY-PASS

main16347-15010i7AFE..AT191199601-199708

16361FAN

main16361-11010i4SFE..ST190..5F199211-199601

main16361-11020i3SFE..ST195..5F;3SFE,4SFE..ST190,191..4FC199211-199601

main16361-64030i2C..CT196,198;2CT..CT190..5F;2C..CT190..4FC199211-199805

main16361-64050i2CT..CT190..4FC199601-199708

main16361-64060i3CE..CT19#199805

main16361-74050i5EFE..ET196..5F199601-199708

main16361-74060i3SFE..ST191;3S#..ST195..5F199601-199708

main16361-74070i3S#..ST195..4FC199211-199601

main16361-74070i3SFE..ST191199402-199601

main16361-74110i3S#..ST195,198..4FC199601

16363MOTOR, COOLING FAN

main16363-11010i4SFE..ST190..5F199211-199601

main16363-11020i3S#..ST195..5F;3SFE,4SFE..ST190,191199211-199601

main16363-11030i3S#..ST195..4FC199211-199601

main16363-11030i3SFE..ST191199402-199601

main16363-11050i3SFE..ST191;3S#..ST195..5F199601-199708

sub16363-74260

main16363-16050i5EFE..ET196..5F199708

main16363-64090i2C..CT196,198;2CT..CT190..5F;2C..CT190..4FC199211-199805

main16363-64120i2CT..CT190..4FC199601-199708

main16363-64140i3CE..CT19#199805

main16363-74020i2C..CT190..5F199211-199601

main16363-74030i3S#..ST195..4FC199601-199708

main16363-74120i5EFE..ET196..5F199601-199708

sub16363-16050

main16363-74270i3SFE..ST198199708

16381BAR, FAN BELT ADJUSTING

main16381-11021i5EFE..ET196..5F199211

main16381-11030i5EFE..ET196..3FC199211

main16381-15080i7AFE..AT191199601-199708

main16381-64080i2C#..CT19#199211-199805

main16381-64180i3CE..CT19#199805

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i7AFE..AT191199601-199708

sub16385-15030

main16385-64011i2C#,3CE..CT19#199211

16400RADIATOR ASSY

main16400-11580i5EFE..ET196..3FC199211-199401

sub16400-11581

main16400-11581i5EFE..ET196..3FC199401-199601

main16400-11780i5EFE..ET196..3FC199601-199701

sub16400-11781

main16400-11781i5EFE..ET196..3FC199701-199805

sub16400-1B040

main16400-16470i5EFE..ET196..5F199211-199601

main16400-16570i5EFE..ET196..5F199601-199701

sub16400-16571

main16400-16571i5EFE..ET196..5F199701-199805

sub16400-16780

main16400-16580i7AFE..AT191..4FC199601-199701

sub16400-16581

main16400-16581i7AFE..AT191..4FC199701-199708

sub16400-16800

main16400-16780i5EFE..ET196..5F199805

main16400-1B040i5EFE..ET196..3FC199805

main16400-64730i2C..CT190..5F199211-199301

sub16400-64731

main16400-64731i2C..CT190..5F199301-199601

main16400-64740i2C..CT190,196..4FC199211-199301

sub16400-64741

main16400-64741i2C..CT190,196..4FC199301-199601

main16400-64750i2C..CT196,198..5F199211-199301

sub16400-64751

main16400-64751i2C..CT196,198..5F199301-199601

sub16400-64741

main16400-64830i2CT..CT190..4FC199601-199706

sub16400-64831

main16400-64831i2CT..CT190..4FC199706-199708

sub16400-6A200

main16400-64850i2C#..CT190,198..5F199601-199805

sub16400-6A210

main16400-64860i2C..CT196..5F199601-199805

sub16400-64861

main16400-64861i3CE..CT197..5F199805

main16400-64870i2C..CT196..4FC199601-199805

sub16400-64871

main16400-64871i3CE..CT197..4FC199805

main16400-6A210i3CE..CT199199805

main16400-74780i4SFE..ST190..5F199211-199402

sub16400-74840

main16400-74790i4SFE..ST190..4FC199211-199402

main16400-74810i3SFE..ST191199211-199601

sub16400-74830

main16400-74820i3SFE..ST195..5F199211-199601

sub16400-74790

main16400-74830i3S#..ST195..4FC199211-199601

main16400-7A050i3SGE..ST195..5F199502-199601

sub16400-74830

main16400-7A100i4SFE..ST190..5F199402-199601

sub16400-74820

main16400-7A190i3SFE..ST195..5F199601-199701

sub16400-7A191

main16400-7A191i3SFE..ST195..5F199701-199708

sub16400-7A580

main16400-7A200i3SFE..ST191199601-199701

sub16400-7A201

main16400-7A201i3SFE..ST191199701-199708

sub16400-7A430

main16400-7A210i3S#..ST195..4FC199601-199701

sub16400-7A211

main16400-7A211i3S#..ST195..4FC199701-199708

main16400-7A220i3SGE..ST195..5F199601-199701

sub16400-7A221

main16400-7A221i3SGE..ST195..5F199701-199708

main16400-7A570i3SFE..ST198199908

16470TANK ASSY, RADIATOR RESERVE

main16470-74200i2C..CT19#199211-199601

sub16470-74230

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16471-74200i3S#,4SFE..ST19#199211-199601

main90445-12078i3S#..ST19#199601-199708

main90445-12078i2C..CT19#199211-199601

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i7AFE..AT191199211-199708

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i7AFE..AT191199601-199708

16471CAP SUB-ASSY, RESERVE TANK

main16405-16130i3S#..ST19#199601-199708

main16405-74190i2C..CT19#199211-199601

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i5EFE..ET196199601-199708

16533SUPPORT, RADIATOR, UPPER

main16533-16060i3S#..ST19#199601-199708

main16533-64130i2C..CT19#199211-199601

main16533-74201i3SFE,4SFE..ST190,195..5F199211-199601

main16533-74211i5EFE..ET196..3FC199211-199601

16535SUPPORT, RADIATOR, LOWER

main16535-64050i2C..CT19#199211-199601

main16535-64110i2CT..CT190..4FC199607-199708

sub16535-64120

main16535-74020i5EFE..ET196..5F199211-199601

main16535-74030i3S#..ST19#199601-199708

main16535-74130i3SGE..ST195;3SFE,4SFE..ST19#..4FC199211-199601

main90916-04008i2C,3CE..CT196,197;2C#,3CE..CT190,198,199..5F199601

main90916-04009i2CT..CT190..4FC199601-199607

16571HOSE, RADIATOR, INLET

main16571-11200i5EFE..ET196199211

main16571-16230i7AFE..AT191199601-199708

main16571-64200i2C..CT190,196199211-199601

main16571-64210i2C..CT198199211-199601

main16571-64260i2C#..CT19#199601-199805

main16571-64310i3CE..CT19#199805

main16571-74200i3SFE,4SFE..ST190,191199211-199212

sub16571-74260

main16571-74220i3SFE..ST195199211-199212

sub16571-74270

main16571-74240i3SGE..ST195199502-199708

main16571-74260i3SFE,4SFE..ST190,191199212-199601

main16571-74270i3SFE..ST195199212-199601

main16571-74330i3SFE..ST19#199601

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i5EFE..ET196199211

main90467-33002i2C..CT19#199211-199312

sub90467-34003

main90467-34003i2C..CT19#199312-199708

sub90467-34004

main90467-34003i5EFE..ET196199211

sub90467-34004

main90467-34003i2C#,3CE..CT19#199601

sub90467-34004

main90467-37005i3CE..CT19#200204

main90467-37006i2C#,3CE..CT19#199601-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-11240i5EFE..ET196199211-199401

sub16572-11241

main16572-11241i5EFE..ET196199401-199601

main16572-11300i5EFE..ET196199601

main16572-16190i7AFE..AT191199601-199708

main16572-64230i2C..CT190,196199211-199601

main16572-64240i2C..CT198199211-199306

sub16572-64241

main16572-64241i2C..CT198199306-199601

main16572-64270i2C#,3CE..CT19#199601

main16572-74190i3S#,4SFE..ST19#199211-199601

main16572-74300i3S#..ST19#199601

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i5EFE..ET196199211

main90467-33002i3SFE,4SFE..ST19#199211-199312

sub90467-34003

main90467-34003i7AFE..AT191199312-199708

sub90467-34004

main90467-34003i2C..CT19#199312-199601

sub90467-34004

main90467-34003i5EFE..ET196199211

sub90467-34004

main90467-34003i2C#,3CE..CT19#199601

sub90467-34004

main90467-37001i2C..CT19#199211-199601

WATER INLET SIDE

sub90467-37003

main90467-37005i3CE..CT19#200204

main90467-37006i2C#,3CE..CT19#199601-200204

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-16260i7AFE..AT191..5F199601-199705

sub16711-16261

main16711-16261i7AFE..AT191..5F199705-199708

main16711-16290i3SFE..ST191;3S#..ST195..5F199601-199705

sub16711-16291

main16711-16291i3SFE..ST191;3S#..ST195..5F199705-199708

main16711-16300i3S#..ST195..4FC199601-199705

sub16711-16301

main16711-16301i3S#..ST195,198..4FC199705

main16711-64351i2C..CT190..5F199211-199601

main16711-64360i2C..CT196,198;2C..CT190..4FC199211-199301

sub16711-64361

main16711-64361i2C..CT196,198;2C..CT190..4FC199301-199510

sub16711-64362

main16711-64362i2C..CT196,198;2CT..CT190..5F;2C..CT190..4FC199510-199805

main16711-64450i3CE..CT19#199805

main16711-74080i3SFE..ST191199402-199601

main16711-74080i3S#..ST195..4FC199211-199601

main16711-74430i5EFE..ET196..5F199211-199601

main16711-74440i3SFE..ST195..5F;3SFE,4SFE..ST190,191..4FC199211-199601

main16712-64130i2CT..CT190..4FC199601-199708

1903

2211

8716

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904117

main90099-04117

9009905164

main90099-05164

9011606136

main90116-06136

9011908419

main90119-08419

9011910194

main90119-10194

9017906143

main90179-06143

9017908053

main90179-08053

9017908153

main90179-08153

9151180835

main91511-80835

91511B0816

main91511-B0816

91621B0816

main91621-B0816

91651B0616

main91651-B0616

9211260835

main92112-60835

92122B0820

main92122-B0820

9613541300

main96135-41300

9955510200

main99555-10200

48 parts on this diagram · 19 diagrams in section
