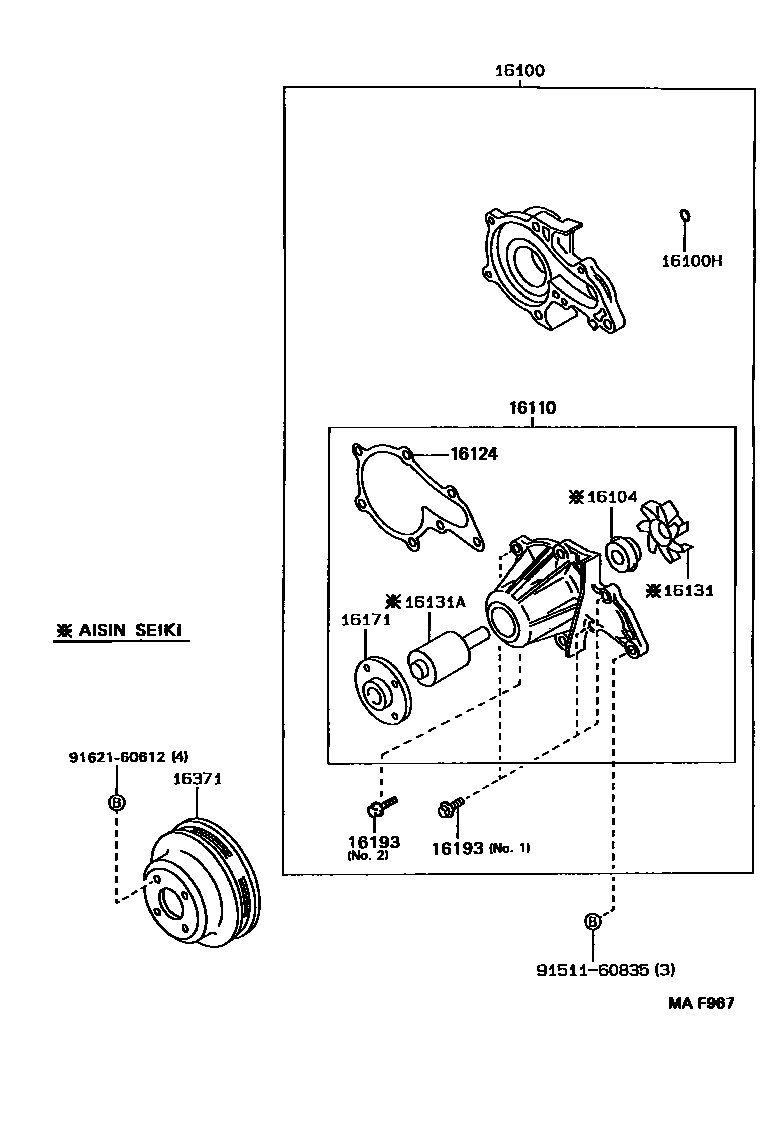

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-19225i5EFE..ET196199211-199408

sub16100-19226

main16100-19226i5EFE..ET196199408

main16100-19265i7AFE..AT191199601-199605

sub16100-19305

main16100-19305i7AFE..AT191199605-199708

main16100-69295i2C#..CT19#199211-199704

sub16100-69296

main16100-69296i2C#,3CE..CT19#199704-199811

sub16100-69425

main16100-69298i3CE..CT19#199811-200012

sub16100-69435

main16100-69435i3CE..CT19#200012

main16100-79185i3SFE,4SFE..ST19#199211

sub16100-79186

main16100-79225i3SGE..ST195199502-199708

sub16100-79226

16100HRING, O(FOR WATER PUMP)

main90301-37005i3S#,4SFE..ST19#199211

main96761-24035i7AFE..AT191199601-199708

16104SEAL SET, WATER PUMP

main16104-16040i5EFE..ET196199211-199505

main16104-46060i7AFE..AT191199605-199708

main16104-74010i5EFE..ET196199505-199611

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19105i5EFE..ET196199211-199408

sub16110-19106

main16110-19106i5EFE..ET196199408-199611

main16110-19107i5EFE..ET196199611

main16110-19175i7AFE..AT191199601-199610

sub16110-19176

main16110-19176i7AFE..AT191199610-199708

main16110-19185i7AFE..AT191199601-199708

16124GASKET, WATER PUMP COVER

main16124-10012i5EFE..ET196199211-199408

main16124-10013i5EFE..ET196199408

main16124-15110i7AFE..AT191199605-199708

main16124-16050i7AFE..AT191199601-199605

main16124-16060i7AFE..AT191199601-199708

main16124-74020i3SFE,4SFE..ST19#199211-199309

main16124-88460i3S#,4SFE..ST19#199309

16131ROTOR, WATER PUMP

main16131-10013i5EFE..ET196199611

main16131-15080i5EFE..ET196199211-199611

main16131-16020i7AFE..AT191199601-199605

main16131-16090i7AFE..AT191199605-199708

16131ABEARING, WATER PUMP

main90029-36809i5EFE..ET196199211-199611

main90029-36846i7AFE..AT191199605-199708

main90029-36850i5EFE..ET196199611

main90369-35071i7AFE..AT191199601-199605

16171SEAT, WATER PUMP PULLEY

main16171-10012i7AFE..AT191199601-199708

main16171-10012i5EFE..ET196199211-199408

main16171-15070i7AFE..AT191199601-199610

main16171-15071i7AFE..AT191199610-199708

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011i7AFE..AT191199605-199708

main16193-15011i7AFE..AT191199601-199605

main16193-15090i7AFE..AT191199601-199605

main16193-15100i7AFE..AT191199601-199708

main90029-01500i3S#,4SFE..ST19#199211

16371PULLEY, FAN

main16371-15070i7AFE..AT191199601-199604

sub16371-15071

main16371-15071i7AFE..AT191199604-199708

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 5 diagrams in section
