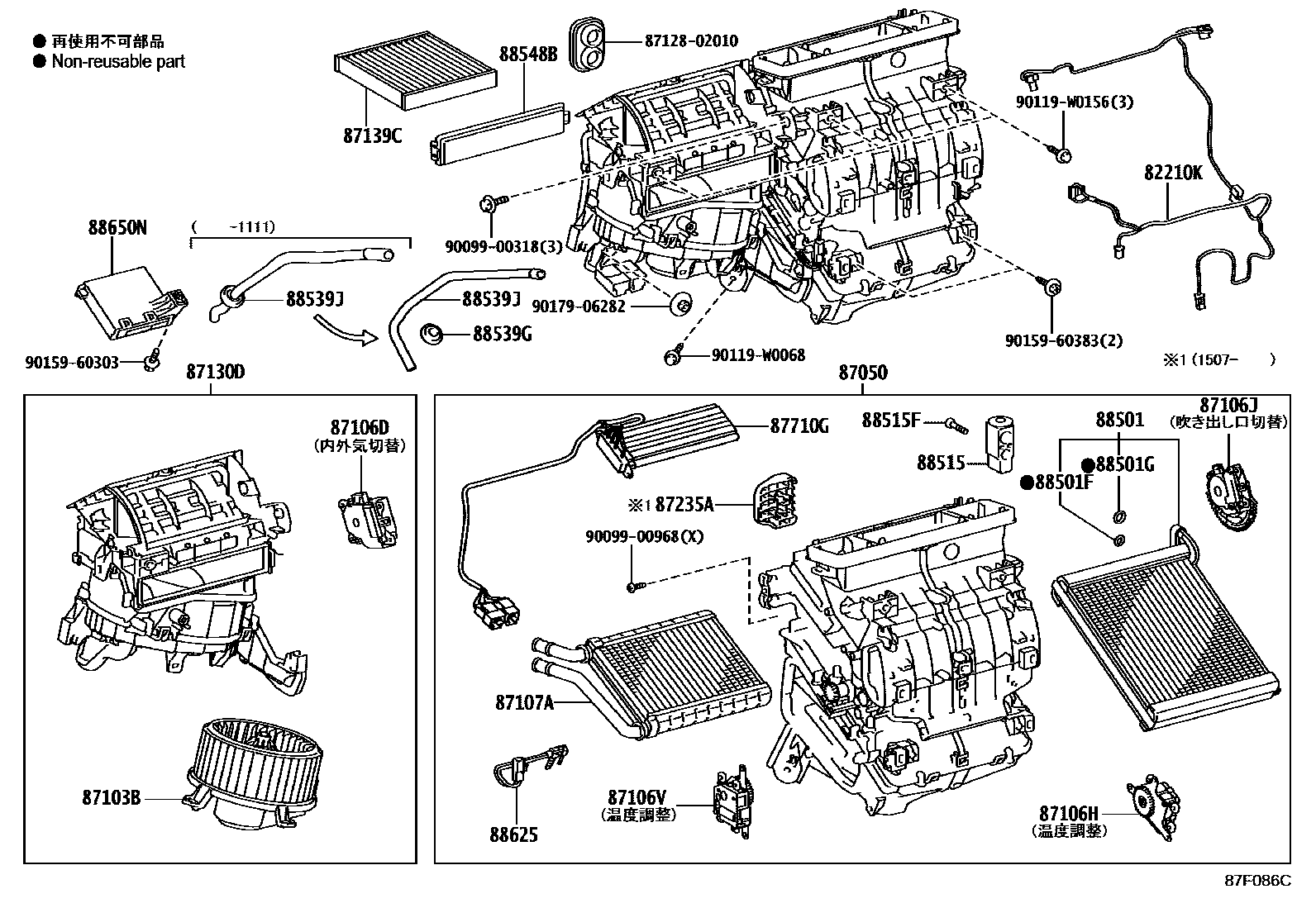

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02020iZRT272201107-201505

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02840iZRT272201107-201505

main87050-05710iZRT272201507

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02130iZRT272201107-201505

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02160iZRT272201107-201505

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02120iZRT272201107-201110

sub87106-02270

main87106-02270iZRT272201202-201505

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02140iZRT272201107-201505

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-02130iZRT272201107-201110

sub87106-02280

main87106-02280iZRT272201202-201505

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02150iZRT272201107-201505

87130DBLOWER ASSY

main87130-02281iZRT272201107-201505

87139CFILTER, CLEAN AIR

main87139-30040iZRT272201107-201303

main87139-50060iZRT272201107-201204

sub87139-50100

main87139-50100iZRT272201205-201505

main87139-52040iZRT272201303-201505

87235ABRACKET, HEATER COVER

main87235-05010iZRT272201507

87710GQUICK HEATER ASSY

main87710-02010iZRT272201107-201505

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02201iZRT272201107-201108

sub88501-02202

main88501-02202iZRT272201108-201505

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14037iZRT272201507

main90099-14120iZRT272201107-201505

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14038iZRT272201507

main90099-14121iZRT272201107-201505

88515VALVE, COOLER EXPANSION

main88515-02150iZRT272201107-201110

main88515-02520iZRT272201202-201505

main88515-68010iZRT272201507

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iZRT272201410-201505

main90099-04597iZRT272201202-201410

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iZRT272201202-201505

88539JHOSE, DRAIN COOLER

main88539-02100iZRT272201107-201111

main88539-02250iZRT272201202-201505

88548BCASE, AIR FILTER

main88548-02060iZRT272201107-201505

88625THERMISTOR, COOLER, NO.1

main88625-02110iZRT272201107-201505

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-05252iZRT272201107-201505

main88650-05310iZRT272201507-201607

main88650-05350iZRT272201607

8712802010GROMMET, HEATER

main87128-02010

9009900318

main90099-00318

9009900968

main90099-00968

90119W0068

main90119-W0068

90119W0156

main90119-W0156

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

30 parts on this diagram · 1 diagram in section
