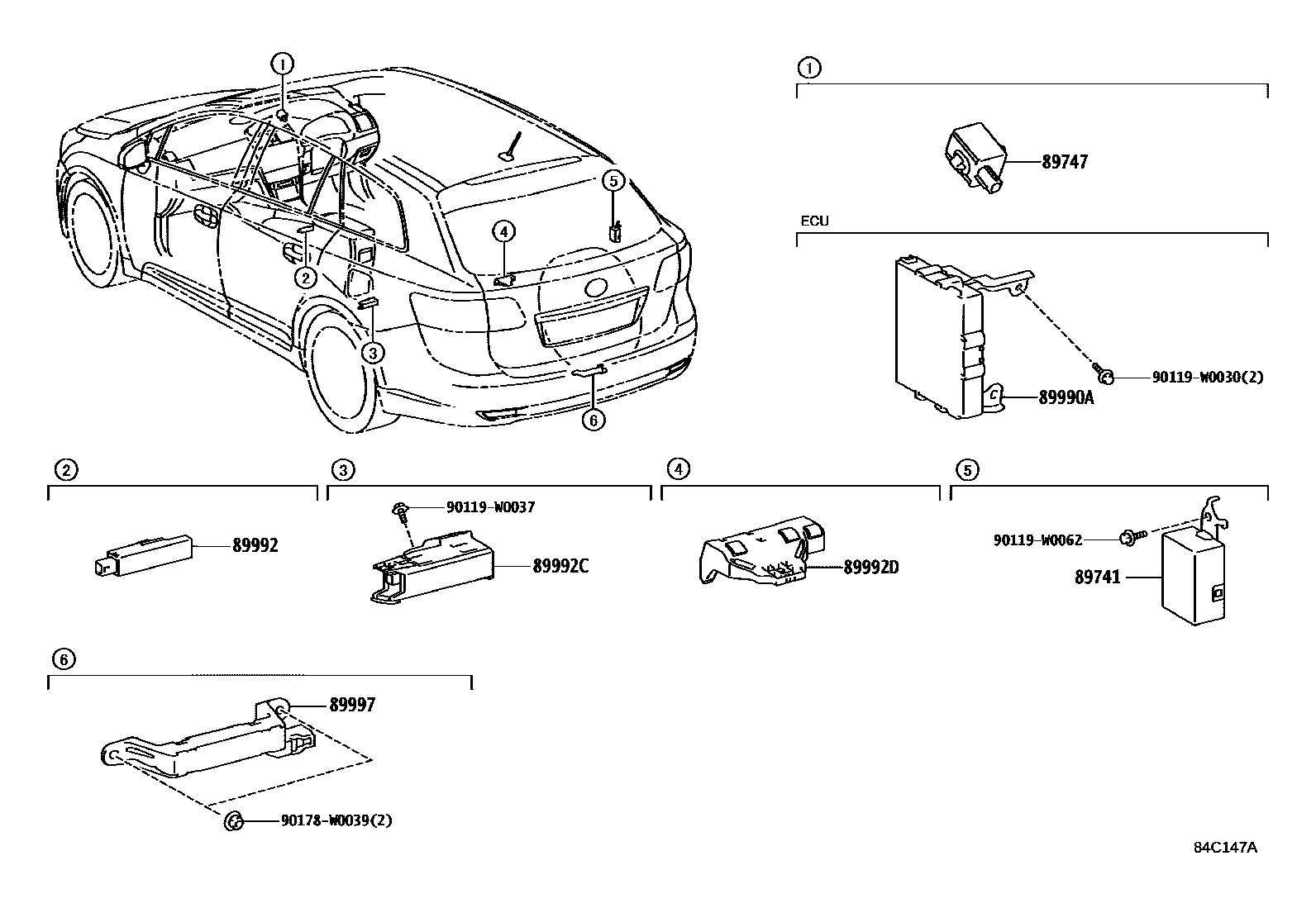

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-05080iZRT272201107-201505

89747BUZZER, WIRELESS DOOR LOCK

main89747-05010iZRT272201107-201505

89990ACOMPUTER ASSY, SMART KEY

main89990-05043iZRT272201202-201505

main89990-05050iZRT272201107-201111

main89990-05090iZRT272201507-201711

main89990-05091iZRT272201712

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-05010iZRT272201107-201111

sub899A0-0F040

main899A0-0F040iZRT272201202-201505

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-05020iZRT272201107-201111

sub899A0-02020

main899A0-02020iZRT272201202-201505

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

main89992-05030iZRT272201107-201111

sub899A0-02030

main899A0-02030iZRT272201202-201505

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZRT272201107-201505

90119W0030

main90119-W0030

90119W0037

main90119-W0037

90119W0062

main90119-W0062

90178W0039

main90178-W0039

11 parts on this diagram · 1 diagram in section
