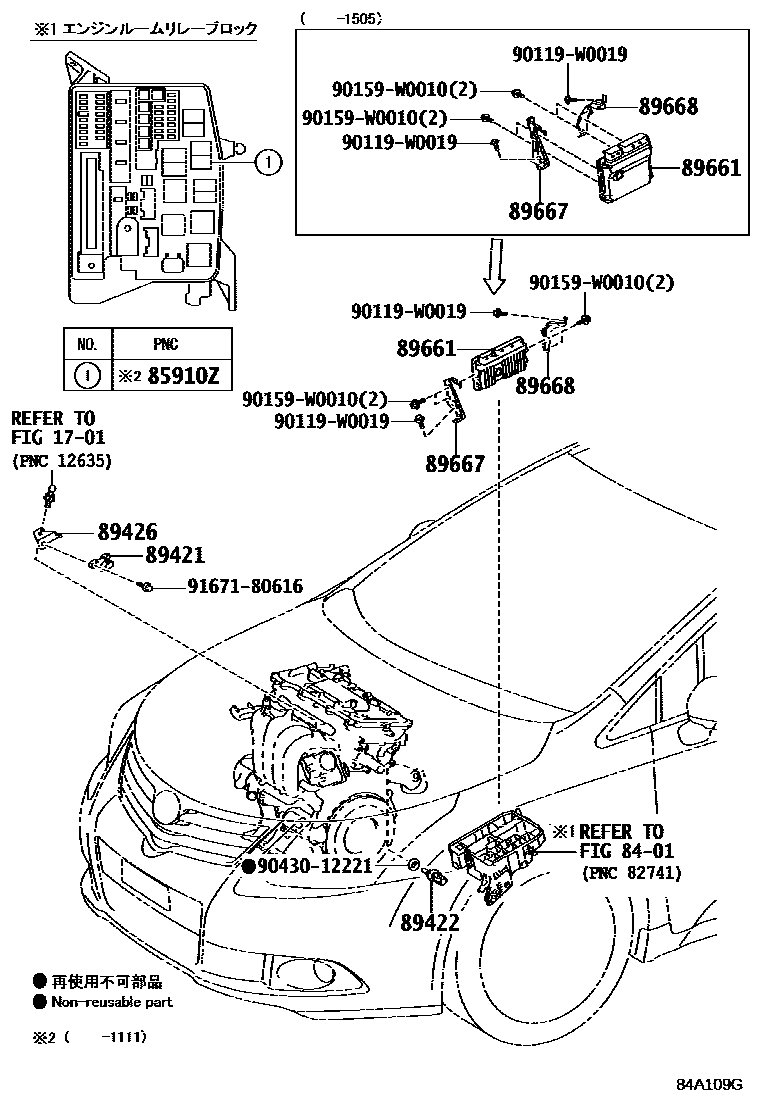

ELECTRONIC FUEL INJECTION SYSTEM

1701

8401

85910ZRELAY, INJECTION (FOR EFI)

main90080-87019iZRT272201107-201111

sub90080-87021

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRT272201107-201505

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRT272201107-201505

89426BRACKET, VACUUM SENSOR

main89426-28080iZRT272201107-201505

89661COMPUTER, ENGINE CONTROL

main89661-05K20iZRT272201107-201111

main89661-05K90iZRT272201202-201401

sub89661-05M90

main89661-05M90iZRT272201402-201409

main89661-05P10iZRT272201409-201505

main89661-05P40iZRT272201507-201606

main89661-05P41iZRT272201607

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02180iZRT272201107-201505

main89667-02300iZRT272201507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02170iZRT272201107-201505

main89668-02280iZRT272201507

90119W0019

main90119-W0019

90159W0010

main90159-W0010

9043012221

main90430-12221

9167180616

main91671-80616

13 parts on this diagram · 1 diagram in section
