SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
61139LBRACKET, FRONT BODY PILLAR OUTER
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211CRAIL, ROOF SIDE, RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61315CRETAINER, DOOR LOCK STRIKER, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61481BRACKET, ROOF SIDE RAIL REINFORCE, NO.1
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61719DBRACKET, ROOF SIDE, INNER RH
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61815CCOVER, ROOF SIDE, INNER UPPER
61824DPLATE, NOISE CONTROL, NO.1
62151BPAD, COWL SIDE SILENCER
62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)
BLACK
62615APAD, QUARTER WHEEL HOUSE, NO.3
65637LINER, REAR WHEEL HOUSE, RH
90105W0012
main90105-W0012
90119W0048
main90119-W0048
9017906308
main90179-06308
9046710170C0
main90467-10170C0
9151580818
main91515-80818
91635G0820
main91635-G0820

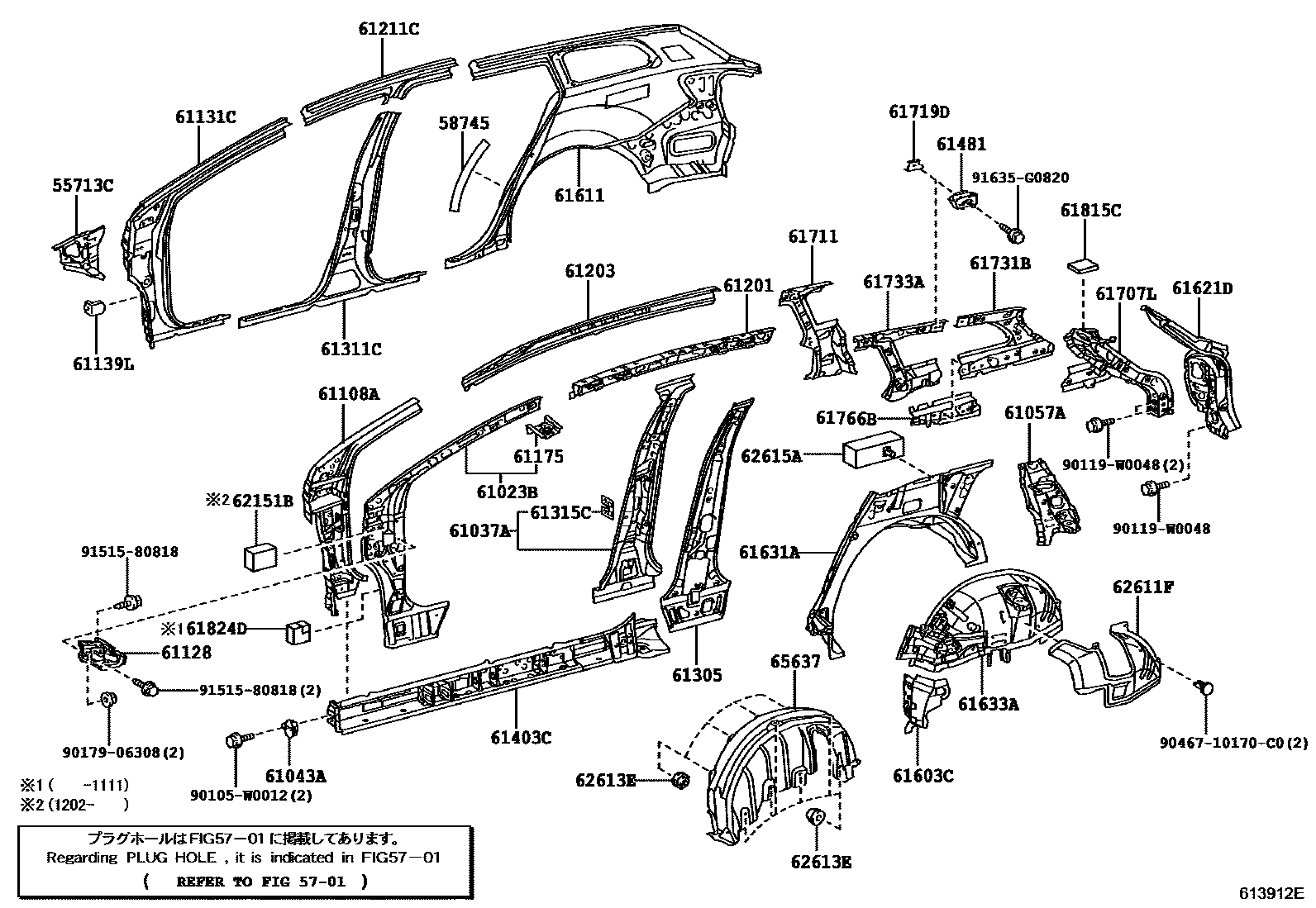

44 parts on this diagram · 2 diagrams in section
