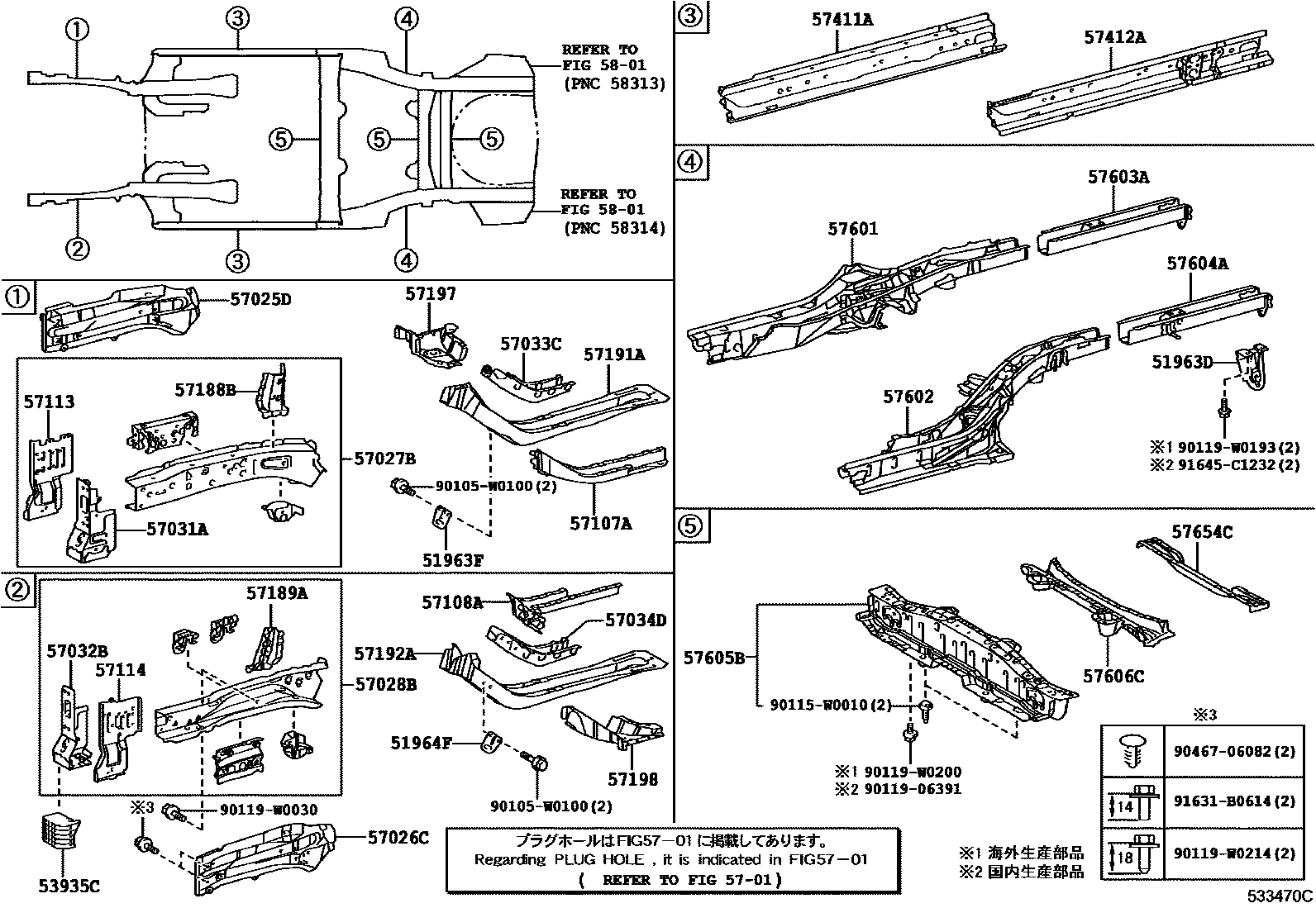

FLOOR SIDE MEMBER

51963DHOOK, TRANSPORT, REAR LH

main51968-02080iZRT272201107-201111

51963FHOOK, TRANSPORT

main51963-02080iZRT272201107-201111

51964FHOOK, TRANSPORT, LH

main51964-02020iZRT272201107-201111

53935CPROTECTOR, FRONT END PANEL

main53935-05010iZRT272201107-201111

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02020iZRT272201107-201111

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02020iZRT272201107-201111

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02020iZRT272201107-201111

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02020iZRT272201107-201111

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02010iZRT272201107-201111

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02010iZRT272201107-201111

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02020iZRT272201107-201111

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02020iZRT272201107-201111

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-02020iZRT272201107-201111

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-02020iZRT272201107-201111

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02070iZRT272201107-201111

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02070iZRT272201107-201111

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02010iZRT272201107-201111

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02010iZRT272201107-201111

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02100iZRT272201107-201111

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02100iZRT272201107-201111

57197BOX, TORQUE, FRONT RH

main57197-02030iZRT272201107-201111

main57197-12040iZRT272201202-201505

57198BOX, TORQUE, FRONT LH

main57198-02010iZRT272201107-201111

main57198-12040iZRT272201107-201111

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-05060iZRT272201202-201505

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-05060iZRT272201107-201111

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02180iZRT272201107-201111

main57601-02181iZRT272201301-201307

main57601-02182iZRT272201307-201505

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02180iZRT272201107-201111

main57602-02181iZRT272201301-201307

main57602-02182iZRT272201307-201505

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-05020iZRT272201107-201111

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-05020iZRT272201107-201111

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-05050iZRT272201107-201111

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-05050iZRT272201107-201111

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-05020iZRT272201107-201111

5801

90105W0100

main90105-W0100

90115W0010

main90115-W0010

9011906391

main90119-06391

90119W0030

main90119-W0030

90119W0193

main90119-W0193

90119W0200

main90119-W0200

90119W0214

main90119-W0214

9046706082

main90467-06082

91645C1232

main91645-C1232

42 parts on this diagram · 1 diagram in section
