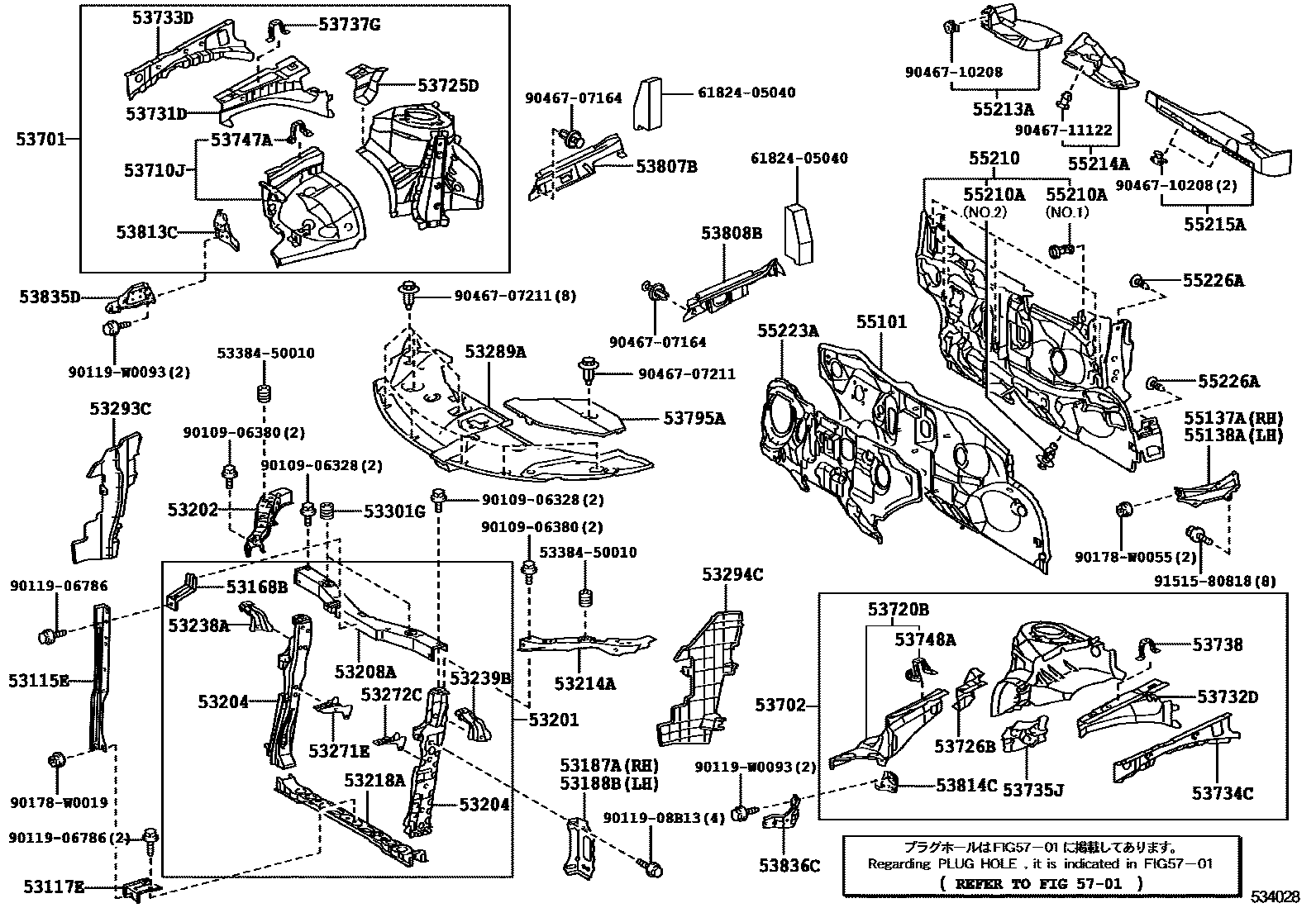

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53115EBRACKET, RADIATOR GRILLE

main53209-05030iZRT272201107-201505

main53209-05040iZRT272201507

53117EBRACKET, RADIATOR GRILLE, LOWER

main53117-05010iZRT272201107-201505

53168BBRACKET, RADIATOR BRACE ROD

main53168-05010iZRT272201107-201505

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02010iZRT272201107-201505

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02010iZRT272201107-201505

53201SUPPORT SUB-ASSY, RADIATOR

main53201-05907iZRT272201107-201505

main53205-05901iZRT272201507

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-05030iZRT272201107-201505

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53204-02010iZRT272201107-201407

main53204-05020iZRT272201407-201505

main53209-02040iZRT272201107-201407

main53209-05060iZRT272201407-201505

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-05030iZRT272201107-201505

main53208-05050iZRT272201507

53214ASUPPORT, RADIATOR, UPPER LH

main53214-05020iZRT272201107-201505

53218ASUPPORT, RADIATOR, LOWER

main53218-02010iZRT272201507

main53218-02901iZRT272201107-201505

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-05010iZRT272201107-201505

main53238-05020iZRT272201507

53239BBRACKET, HOOD BUMPER MOUNTING, LH

main53239-05010iZRT272201107-201505

main53239-05020iZRT272201507

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-05010iZRT272201107-201505

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-05010iZRT272201107-201505

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-05010iZRT272201107-201108

sub53289-05011

main53289-05011iZRT272201109-201111

main53289-05020iZRT272201202-201505

main53289-05030iZRT272201507

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-05070iZRT272201107-201111

main53293-05080iZRT272201202-201505

main53293-05090iZRT272201507

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-05050iZRT272201107-201111

main53294-05060iZRT272201202-201505

main53294-05070iZRT272201507

53301GCUSHION, HOOD BUMPER

main90541-15022iZRT272201107-201505

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-05080iZRT272201107-201505

main53701-05090iZRT272201507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-05080iZRT272201107-201505

main53702-05090iZRT272201507

53710JAPRON ASSY, FRONT FENDER, RH

main53710-05010iZRT272201107-201505

main53710-05020iZRT272201507

53720BAPRON ASSY, FRONT FENDER, LH

main53720-05010iZRT272201107-201505

main53720-05020iZRT272201507

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-02010iZRT272201107-201505

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-02010iZRT272201107-201505

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02020iZRT272201107-201505

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02020iZRT272201107-201505

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02010iZRT272201107-201505

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02010iZRT272201107-201505

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-02010iZRT272201107-201505

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-05020iZRT272201107-201505

main53737-05030iZRT272201507

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53737-05020iZRT272201107-201505

main53737-05030iZRT272201507

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-05010iZRT272201107-201505

main53747-05020iZRT272201507

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-05010iZRT272201107-201505

main53748-05020iZRT272201507

53795ACOVER, ENGINE ROOM, SIDE

main53795-05050iZRT272201107-201111

53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-05020iZRT272201107-201505

main53807-05030iZRT272201507

53808BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-05020iZRT272201107-201505

main53808-05030iZRT272201507

53813CEXTENSION, FRONT FENDER, RH

main53813-05020iZRT272201107-201505

53814CEXTENSION, FRONT FENDER, LH

main53814-05020iZRT272201107-201505

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-05010iZRT272201202-201505

main53803-05020iZRT272201507

main53835-05010iZRT272201107-201111

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-05010iZRT272201202-201505

main53804-05020iZRT272201507

main53836-05010iZRT272201107-201111

55101PANEL SUB-ASSY, DASH

main55101-05580iZRT272201107-201505

55137ABRACE, DASH TO FRAME, RH

main55137-05020iZRT272201107-201405

sub55137-05021

main55137-05021iZRT272201406-201505

55138ABRACE, DASH TO FRAME, LH

main55138-05010iZRT272201107-201405

sub55138-05011

main55138-05011iZRT272201406-201505

55210INSULATOR ASSY, DASH PANEL

main55210-05140iZRT272201107-201111

main55210-05180iZRT272201202-201409

main55210-05181iZRT272201409-201505

main55210-05200iZRT272201507

55210ACLIP

main90467-11122iZRT272201107-201505

main90467-11122iZRT272201507

main90467-11127iZRT272201107-201505

55213APAD, DASH PANEL SILENCER

main55213-02220iZRT272201409-201505

main55213-05120iZRT272201107-201409

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-02020iZRT272201107-201505

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-05020iZRT272201107-201505

55223AINSULATOR, DASH PANEL, OUTER

main55223-02160iZRT272201107-201505

main55223-05100iZRT272201202-201308

55226ACLIP

main90467-08186-C0iZRT272201107-201505

BLACK

sub90467-08186

main90467-W0007iZRT272201507

5701

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010

6182405040PLATE, NOISE CONTROL, NO.1

main61824-05040

9010906328

main90109-06328

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

90119W0093

main90119-W0093

90178W0019

main90178-W0019

90178W0055

main90178-W0055

9046707164

main90467-07164

9046707211

main90467-07211

9046710208

main90467-10208

9046711122

main90467-11122

9151580818

main91515-80818

66 parts on this diagram · 3 diagrams in section
