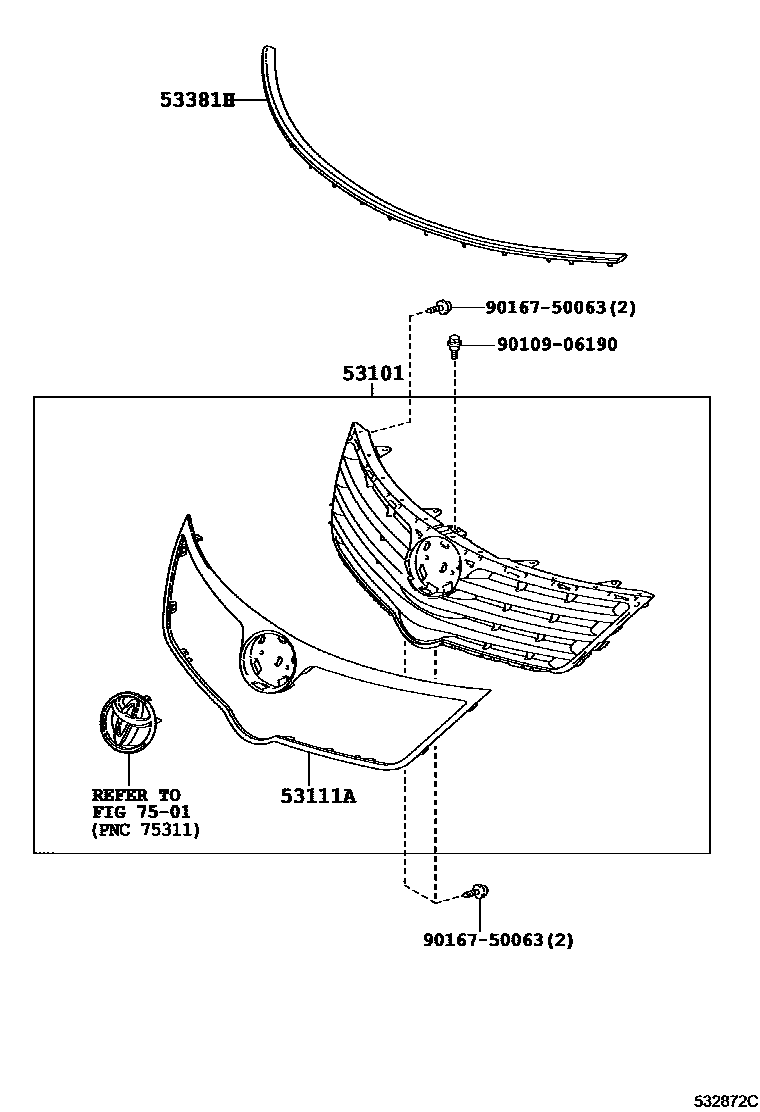

RADIATOR GRILLE

0001 1 0002 1 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53100-05110-A0iZRT272201107-201111

SUPER WHITE 2,040

sub53100-05906

main53100-05110-B2iZRT272201107-201111

SILVER ME.,1F7

sub53100-05906

main53100-05110-C0iZRT272201107-201111

BLACK MC.,209

sub53100-05906

53111GRILLE, RADIATOR

main53111-05080-A0iZRT272201202-201505

SUPER WHITE 2,040

main53111-05080-A1iZRT272201303-201505

WHITE PEARL CS.,070

main53111-05080-B0iZRT272201202-201505

SILVER ME.,1F7

main53111-05080-C0iZRT272201202-201505

BLACK MC.,209

53111AGRILLE, RADIATOR, OUTSIDE

main53111-05070iZRT272201107-201111

53381HSEAL, HOOD TO RADIATOR SUPPORT

main53381-05050iZRT272201107-201111

main53381-05060iZRT272201202-201505

main53381-05080iZRT272201507

7501

9010906190

main90109-06190

9016750063

main90167-50063

7 parts on this diagram · 3 diagrams in section
