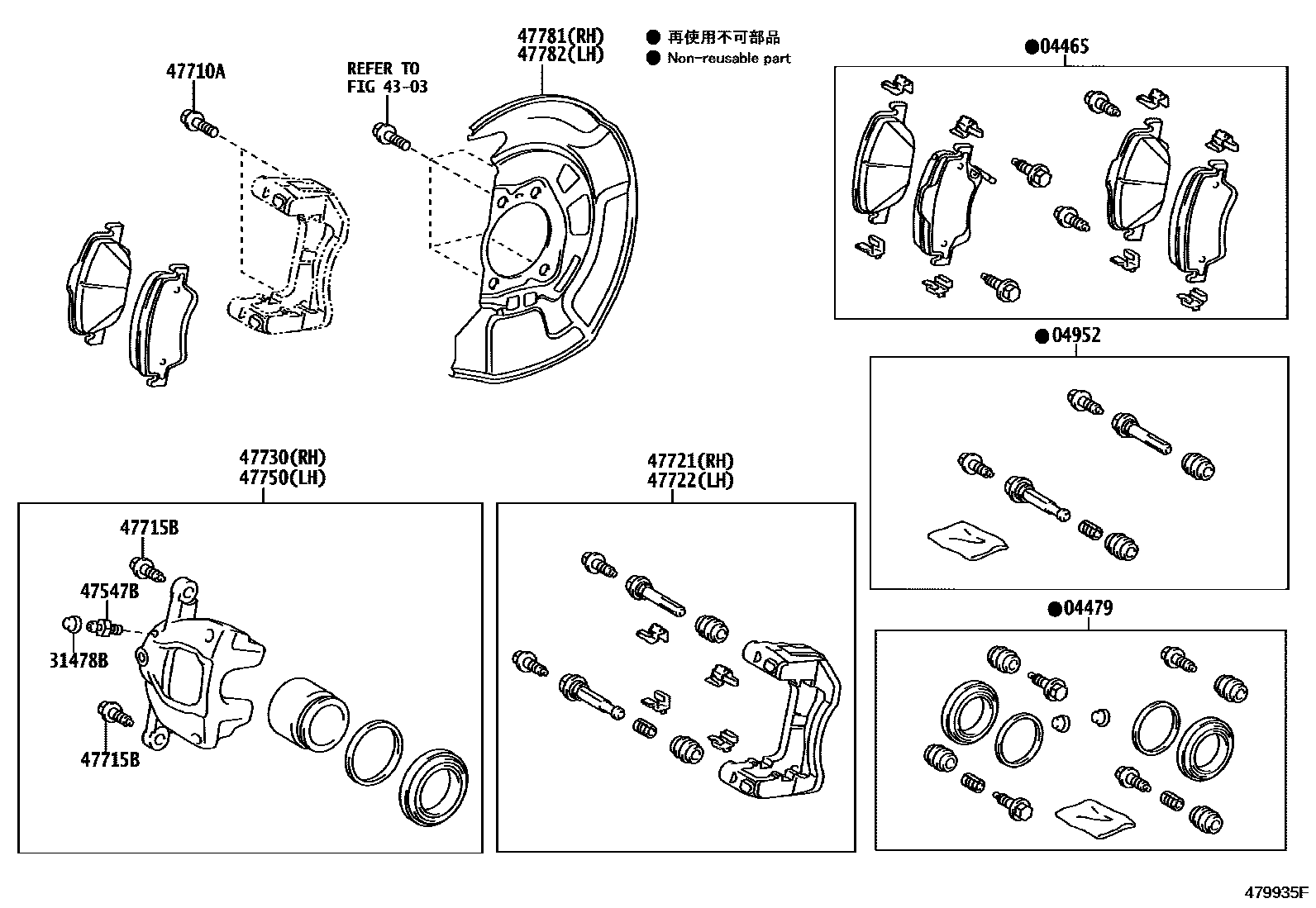

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0F010iZRT272201107-201505

sub04465-0F011

main04465-0F011iZRT272201507-201706

sub04465-0F012

main04465-0F012iZRT272201706

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iZRT272201107-201505

main04478-02161iZRT272201507

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220iZRT272201107-201505

main04952-02221iZRT272201507

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001iZRT272201107-201505

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iZRT272201107-201505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRT272201107-201505

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-05060iZRT272201107-201505

sub47715-28060

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09480iZRT272201107-201505

main47721-09481iZRT272201507

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09180iZRT272201107-201505

main47722-09181iZRT272201507

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02361iZRT272201107-201505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02361iZRT272201107-201505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02150iZRT272201107-201505

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02150iZRT272201107-201505

14 parts on this diagram · 1 diagram in section
