STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0F020iZRT272201107-201807

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iZRT272201107-201505

45221SHAFT, STEERING INTERMEDIATE

main45221-05030iZRT272201202-201505

main45221-05040iZRT272201107-201111

45250COLUMN ASSY, STEERING

main45250-05831iZRT272201107-201109

sub45250-05890

main45250-05890iZRT272201109-201501

sub45250-05891

main45250-05891iZRT272201502-201505

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iZRT272201107-201505

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-05090iZRT272201202-201505

main45260-05100iZRT272201507

main45260-05130iZRT272201107-201111

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22020iZRT272201107-201505

45286BCOVER, STEERING COLUMN, UPR

main45286-05110-C0iZRT272..LI201107-201505

BLACK,TRIM2#

main45286-05110-C0iZRT272..XI201202-201505

BLACK,TRIM4#

main45286-05110-C1iZRT272201507

EU BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-05151-C0iZRT272201107-201505

BLACK,TRIM2#

main45287-05151-C0iZRT272..XI201202-201505

BLACK,TRIM4#

main45287-05151-C1iZRT272201507

EU BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12050iZRT272201107-201505

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iZRT272201107-201212

main90119-10981iZRT272201301-201610

main90119-10981iZRT272201610

main90119-W0215iZRT272201610

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

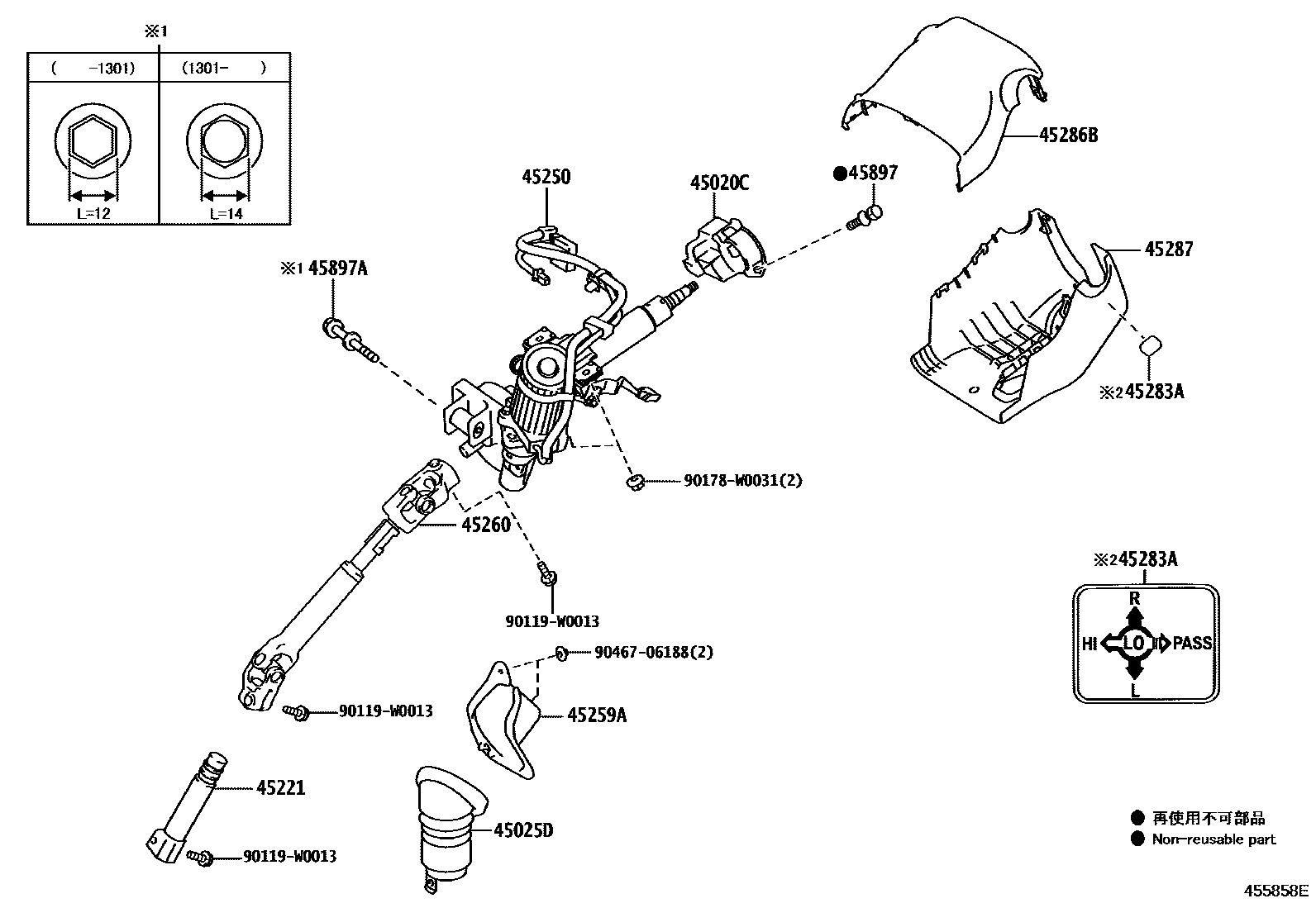

14 parts on this diagram · 1 diagram in section
