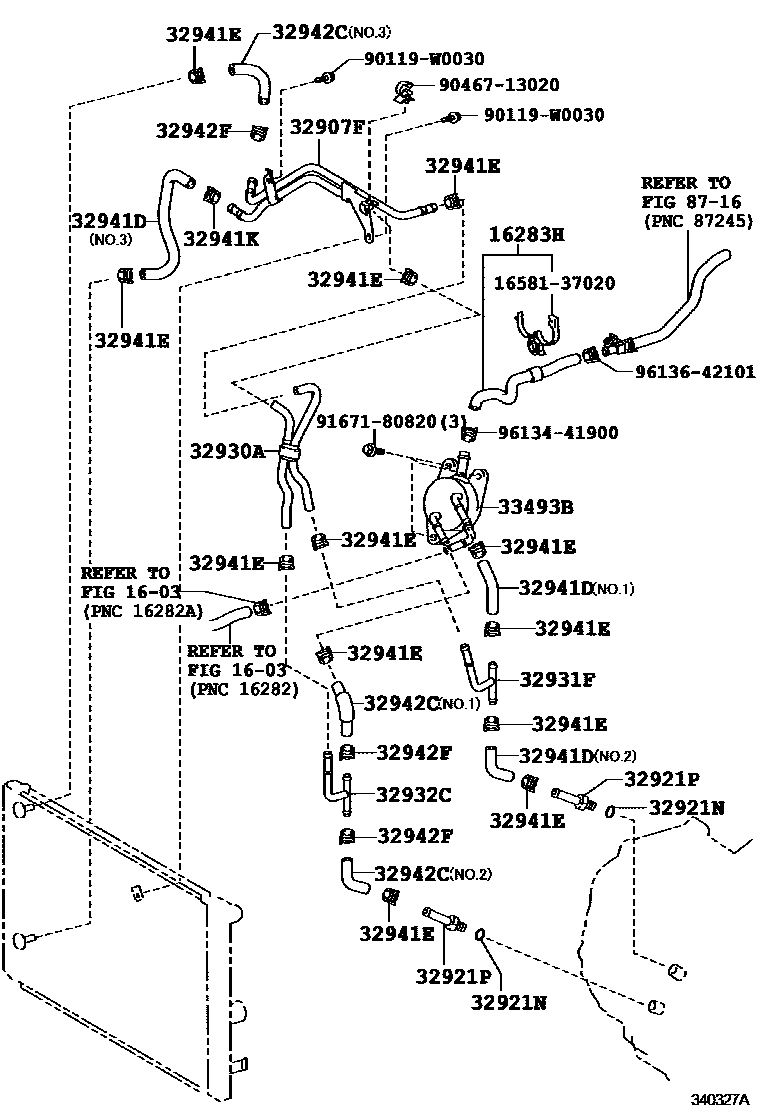

OIL COOLER & TUBE(CVT)

0001 1K111 0002 1K114

1603

16283HHOSE, WATER BY-PASS, NO.6

main16283-0T010i3ZRFAE..ZRT272201202-201505

main16283-0T050i3ZRFAE..ZRT272201507

32907FTUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-20060iZRT272201107-201111

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018iZRT272201507-201807

main90301-10189×2iZRT272201202-201505

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004×2iZRT272201107-201111

sub90404-13010

main90404-13009iZRT272201507-201807

32930AHOSE ASSY, TRANSMISSION OIL COOLER

main32940-20020iZRT272201107-201111

32931FTUBE, OIL COOLER INLET

main32931-20050iZRT272201107-201111

32932CTUBE, OIL COOLER OUTLET

main32932-20020iZRT272201107-201111

32941DHOSE, OIL COOLER INLET

main32941-20260iZRT272201202-201505

main32941-20270iZRT272201107-201111

main32943-20150iZRT272201107-201111

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×12iZRT272201107-201111

32941KCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iZRT272201107-201111

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-20130iZRT272201202-201505

main32942-20140iZRT272201107-201111

main32943-20140iZRT272201202-201505

32942FCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iZRT272201107-201111

33493BCOOLER, OIL

main33493-05010iZRT272201507

main33493-20040iZRT272201107-201111

8716

1658137020CLAMP, HOSE(FOR WATER HOSE)

main16581-37020

90119W0030

main90119-W0030

9046713020

main90467-13020

9167180820

main91671-80820

9613441900

main96134-41900

9613642101

main96136-42101

21 parts on this diagram · 2 diagrams in section
