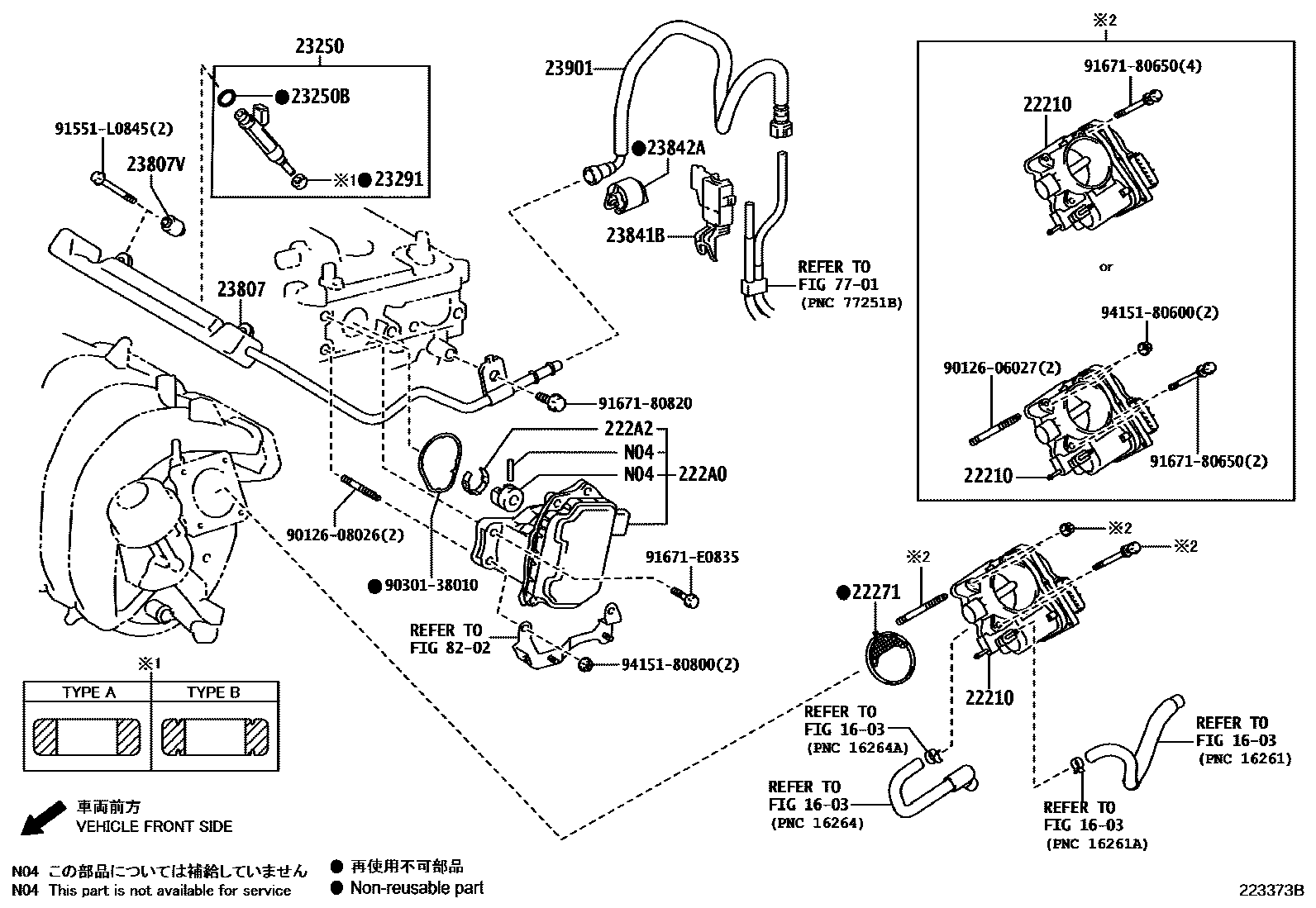

FUEL INJECTION SYSTEM
1603
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT
sub222A0-37016
sub222A0-37017
sub222A0-37018
sub222A0-37019
sub222A0-37020
sub222A0-37021
sub222A0-37022
sub222A0-37023
sub222A0-37024
222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
7701
8202
9012606027
main90126-06027
9012608026
main90126-08026
9030138010
main90301-38010
91551L0845
main91551-L0845
9167180650
main91671-80650
9167180820
main91671-80820
91671E0835
main91671-E0835
9415180600
main94151-80600
9415180800
main94151-80800
24 parts on this diagram · 1 diagram in section
