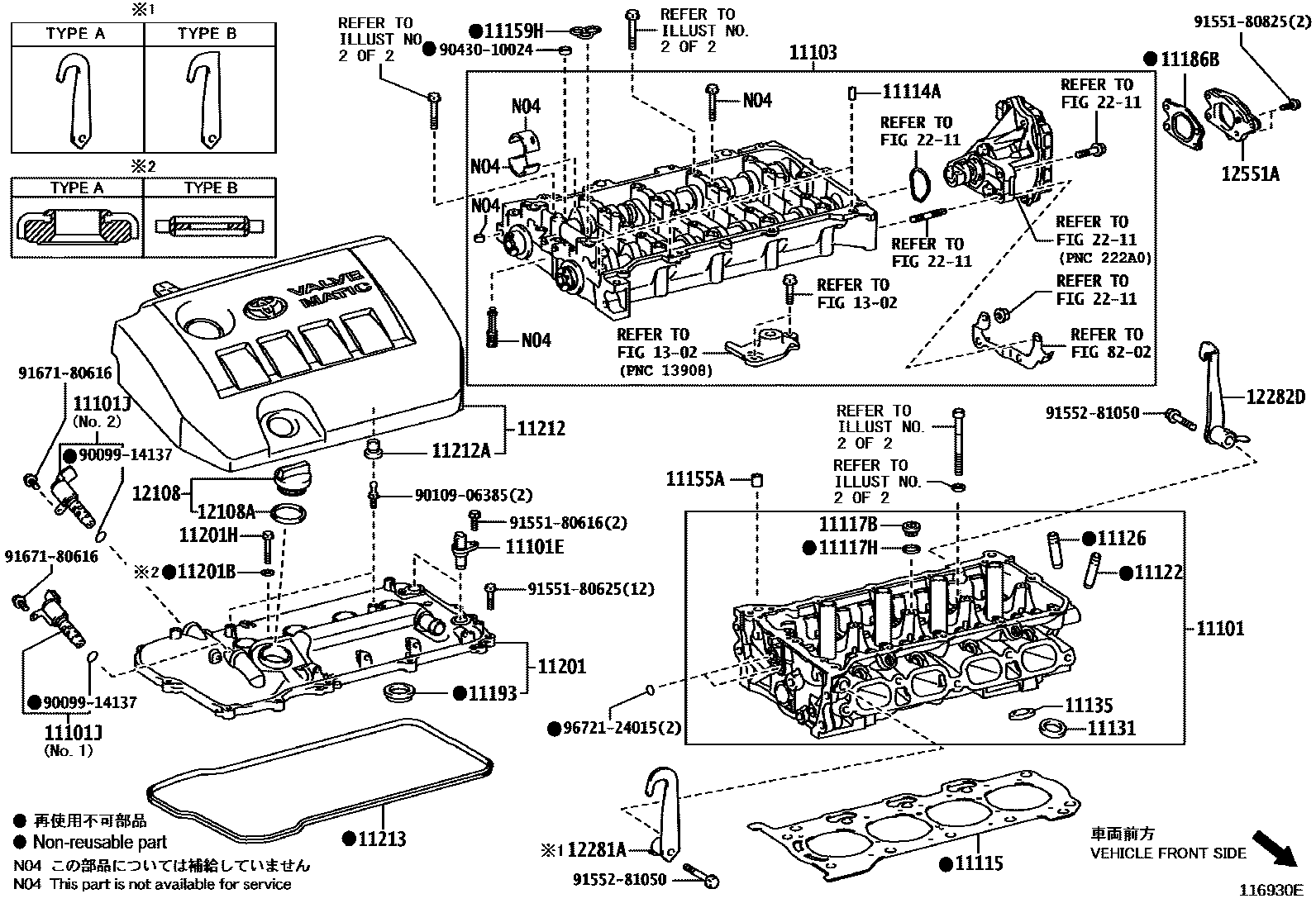

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-39686i3ZRFAE..ZRT272¥78,100201107-201505

11101ESENSOR, CAM POSITION

main90919-05060i3ZRFAE..ZRT272¥4,130201107-201505

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-37010i3ZRFAE..ZRT272¥7,300201107-201505

main15330-37020i3ZRFAE..ZRT272¥7,300201107-201505

11103HOUSING SUB-ASSY, CAMSHAFT

main11107-37013i3ZRFAE..ZRT272¥160,000201107-201110

sub11107-37014¥160,000

main11107-37014i3ZRFAE..ZRT272¥160,000201110-201310

sub11107-37015¥160,000

main11107-37015i3ZRFAE..ZRT272¥160,000201310-201406

sub11107-37016¥160,000

main11107-37016i3ZRFAE..ZRT272¥160,000201407-201505

sub11107-37017¥99,400

main11107-37023i3ZRFAE..ZRT272¥160,000201507-201607

sub11107-37024¥110,000

main11107-37024i3ZRFAE..ZRT272¥110,000201608

11114APIN, STRAIGHT

main90250-06001i3ZRFAE..ZRT272¥100201107-201505

11115GASKET, CYLINDER HEAD

main11115-37051i3ZRFAE..ZRT272¥7,100201107-201110

sub11115-37060¥7,100

main11115-37060i3ZRFAE..ZRT272¥7,100201110-201406

sub11115-37061¥4,820

main11115-37061i3ZRFAE..ZRT272¥4,820201407-201505

sub11115-37062¥4,380

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i3ZRFAE..ZRT272¥180201107-201505

11117HGASKET(FOR WATER HOLE)

main90430-20004i3ZRFAE..ZRT272¥200201107-201505

11122BUSH, INTAKE VALVE GUIDE

main11122-31050i3ZRFAE..ZRT272¥610201107-201505

sub11122-31090¥550

main11123-31050i3ZRFAE..ZRT272¥610201107-201505

11126BUSH, EXHAUST VALVE GUIDE

main11126-31030i3ZRFAE..ZRT272¥610201107-201505

sub11126-31040¥550

main11127-31030i3ZRFAE..ZRT272¥610201107-201505

sub11127-31040¥550

11131SEAT, INTAKE VALVE

main11131-37020i3ZRFAE..ZRT272¥1,240201107-201502

sub11131-37040¥770

main11131-37040i3ZRFAE..ZRT272¥770201502-201505

main11132-37020i3ZRFAE..ZRT272¥1,240201107-201211

sub11132-37040¥770

main11132-37040i3ZRFAE..ZRT272¥770201211-201505

11135SEAT, EXHAUST VALVE

main11135-37020i3ZRFAE..ZRT272¥770201107-201505

main11136-37020i3ZRFAE..ZRT272¥770201107-201211

main11136-37040i3ZRFAE..ZRT272¥770201211-201505

11155APIN, RING W/HEAD

main90253-12002i3ZRFAE..ZRT272¥50201107-201505

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-37010i3ZRFAE..ZRT272¥340201107-201505

11186BGASKET, CAMSHAFT HOUSING REAR COVER

main11186-37010i3ZRFAE..ZRT272¥470201107-201505

11193GASKET, SPARK PLUG TUBE

main11193-37020i3ZRFAE..ZRT272¥230201107-201505

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-37010i3ZRFAE..ZRT272¥26,400201107-201111

sub11201-37011¥16,600

main11201-37011i3ZRFAE..ZRT272¥16,600201202-201505

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main16258-37010i3ZRFAE..ZRT272¥340201107-201407

main90210-06013i3ZRFAE..ZRT272¥80201107-201505

11201HBOLT(FOR CYLINDER HEAD COVER)

main91551-80670i3ZRFAE..ZRT272¥80201107-201505

11212COVER, CYLINDER HEAD, NO.2

main11212-0T080i3ZRFAE..ZRT272¥9,700201210-201505

main11212-37031i3ZRFAE..ZRT272¥7,700201107-201210

11212ACUSHION, CYLINDER HEAD COVER

main90480-16049i3ZRFAE..ZRT272¥120201107-201505

11213GASKET, CYLINDER HEAD COVER

main11213-37020i3ZRFAE..ZRT272¥1,450201107-201501

sub11213-37021¥900

main11213-37021i3ZRFAE..ZRT272¥900201502-201505

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i3ZRFAE..ZRT272¥640201107-201505

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i3ZRFAE..ZRT272¥120201107-201505

12281AHANGER, ENGINE, NO.1

main12281-37021i3ZRFAE..ZRT272¥1,170201107-201203

main12281-37021i3ZRFAE..ZRT272¥1,170201203-201505

main12281-37021i3ZRFAE..ZRT272¥1,170201507

main12281-37050i3ZRFAE..ZRT272¥1,860201203-201505

sub12281-37021¥1,170

main12281-37070i3ZRFAE..ZRT272¥1,170201801

12282DHANGER, ENGINE, NO.2

main12282-37011i3ZRFAE..ZRT272¥1,170201507

main12282-37011i3ZRFAE..ZRT272¥1,170201107-201203

main12282-37011i3ZRFAE..ZRT272¥1,170201203-201505

main12282-37040i3ZRFAE..ZRT272¥1,860201203-201505

sub12282-37011¥1,170

main12282-37060i3ZRFAE..ZRT272¥1,170201801

12551ABRACKET, VACUUM PUMP, NO.1

main12551-37010i3ZRFAE..ZRT272¥2,530201107-201505

1302

2211

8202

9009914137

main90099-14137¥0

9010906385

main90109-06385¥80

9043010024

main90430-10024¥80

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180825

main91551-80825¥80

9155281050

main91552-81050¥120

9167180616

main91671-80616¥60

9672124015

main96721-24015¥130

39 parts on this diagram · 2 diagrams in section
