STANDARD TOOL

09110JACK ASSY

main09111-05050iZRT272201107-201505

sub09111-05052

09113HANDLE, JACK

main09113-05020iZRT272201107-201505

09120BAG, TOOL

main09120-16030iZRT272201107-201505

09130PLIERS

main99913-11500iZRT272201107-201505

09135DRIVER, SCREW

main99915-10700iZRT272201107-201505

09141SPANNER

main99914-10810iZRT272201107-201505

main99914-11214iZRT272201107-201505

09150WRENCH, HUB NUT BOX

main09150-05011iZRT272201107-201505

09181ROD, PARKING BRAKE RELEASE

main09181-05010iZRT272201107-201505

09184STOPPER, WHEEL

main09184-00010iZRT272201107-201505

51960HOOK ASSY, FRONT

main51960-05010iZRT272201107-201505

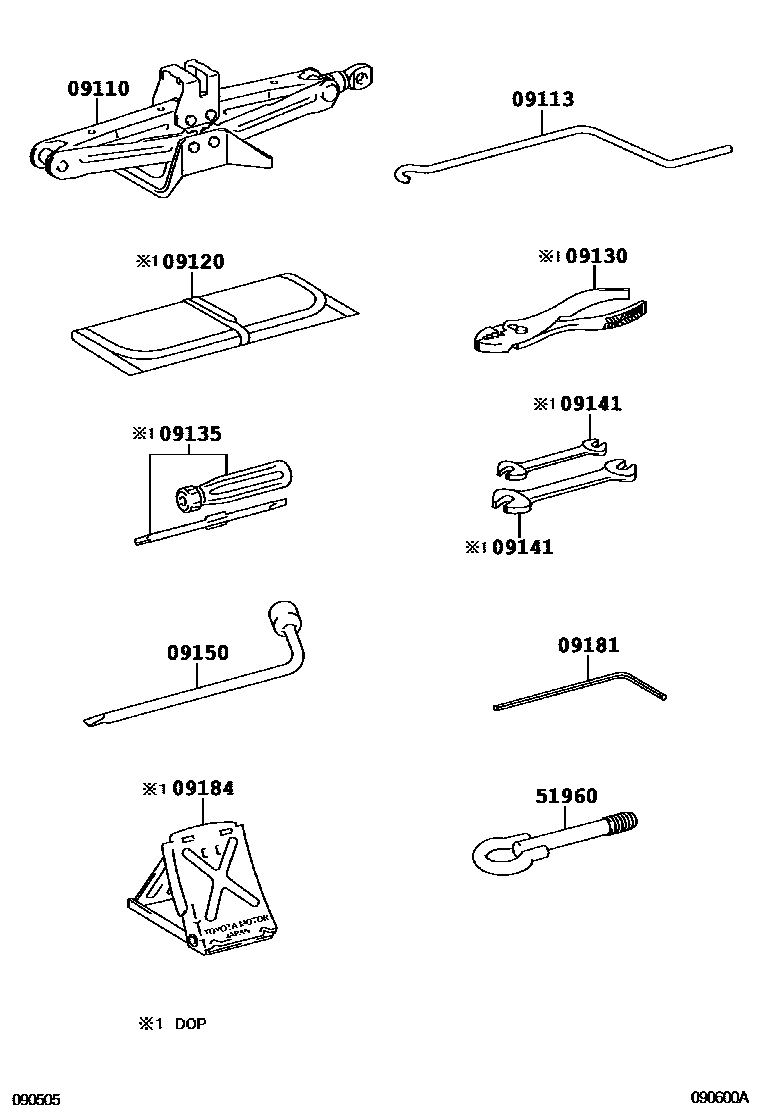

10 parts on this diagram · 1 diagram in section
