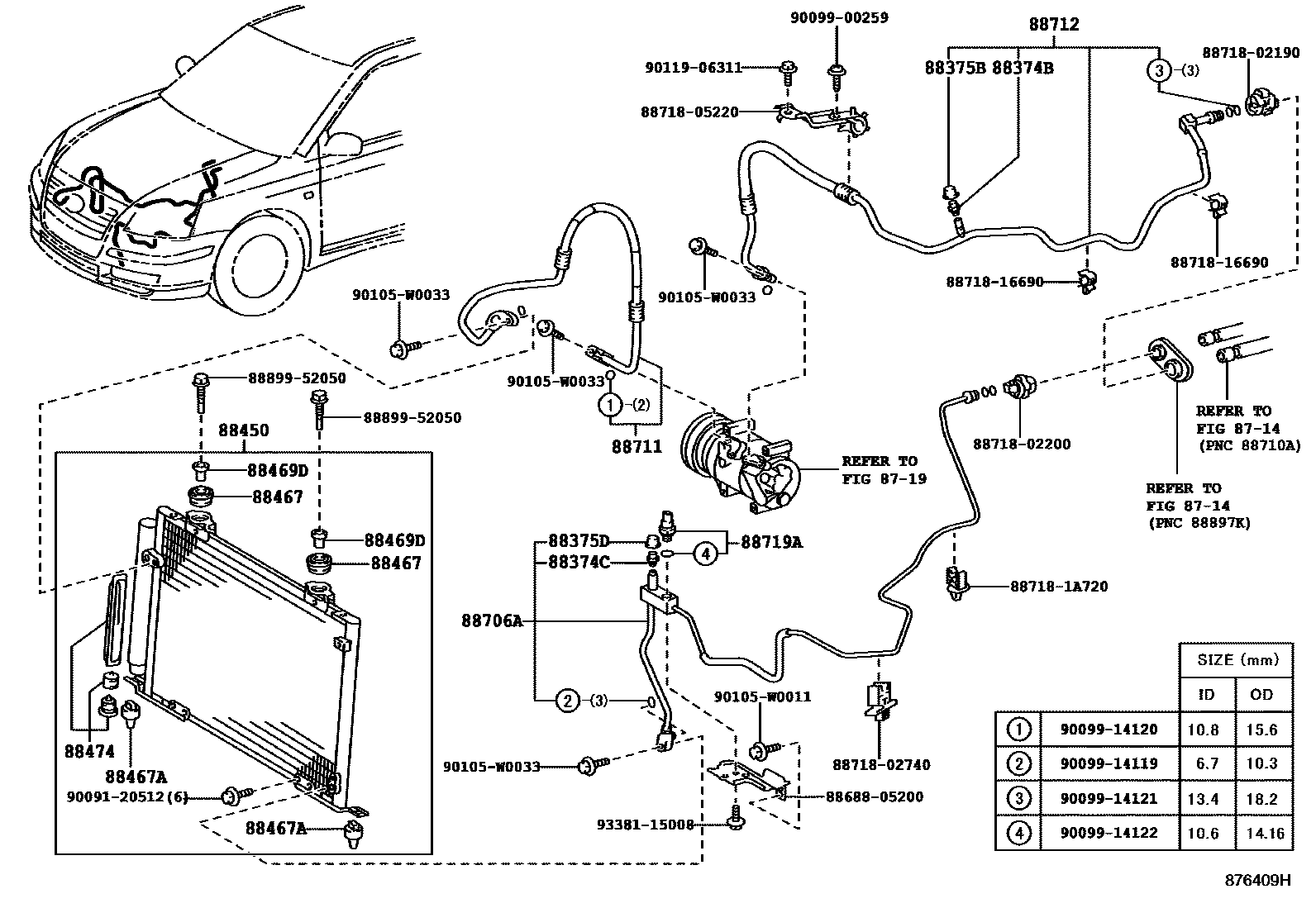

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAZT25#200307-200606

88374CVALVE, SERVICE, NO.2

main88374-30010iAZT25#200307-200512

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAZT25#200606-200811

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAZT25#200307-200606

88450CONDENSER ASSY, W/RECEIVER

main88450-05110iAZT25#200307-200401

sub90119-W0067

main88450-05111iAZT25#200401-200606

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iAZT25#200606

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-05010×2iAZT25#200401-200606

main88467-20190×2iAZT25#200307-200312

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iAZT25#200606

88474DRYER, COOLER

main88474-17010iAZT25#200307-200312

88706ATUBE SUB-ASSY, LIQUID, A

main88716-05390iAZT25#200307-200512

main88716-05391iAZT25#200512-200606

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-05300iAZT251200506-200511

main88703-05301iAZT251200512-200606

main88703-05320iAZT250,255200307-200511

main88703-05321iAZT250,255200606-200801

main88703-05322iAZT250,255200801

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-05290iAZT25#200307-200606

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAZT25#200707

main88719-40020iAZT25#200307-200606

8868805200BRACKET, COOLER DIAPHRAGM

main88688-05200

8871802190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02190

8871802200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02200

8871802740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02740

8871805220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05220

8871816690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16690

887181A720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A720

8889952050COVER, EVAPORATOR

main88899-52050

9009120512

main90091-20512

9009900259

main90099-00259

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

90105W0011

main90105-W0011

90105W0033

main90105-W0033

9011906311

main90119-06311

9338115008

main93381-15008

33 parts on this diagram · 1 diagram in section
