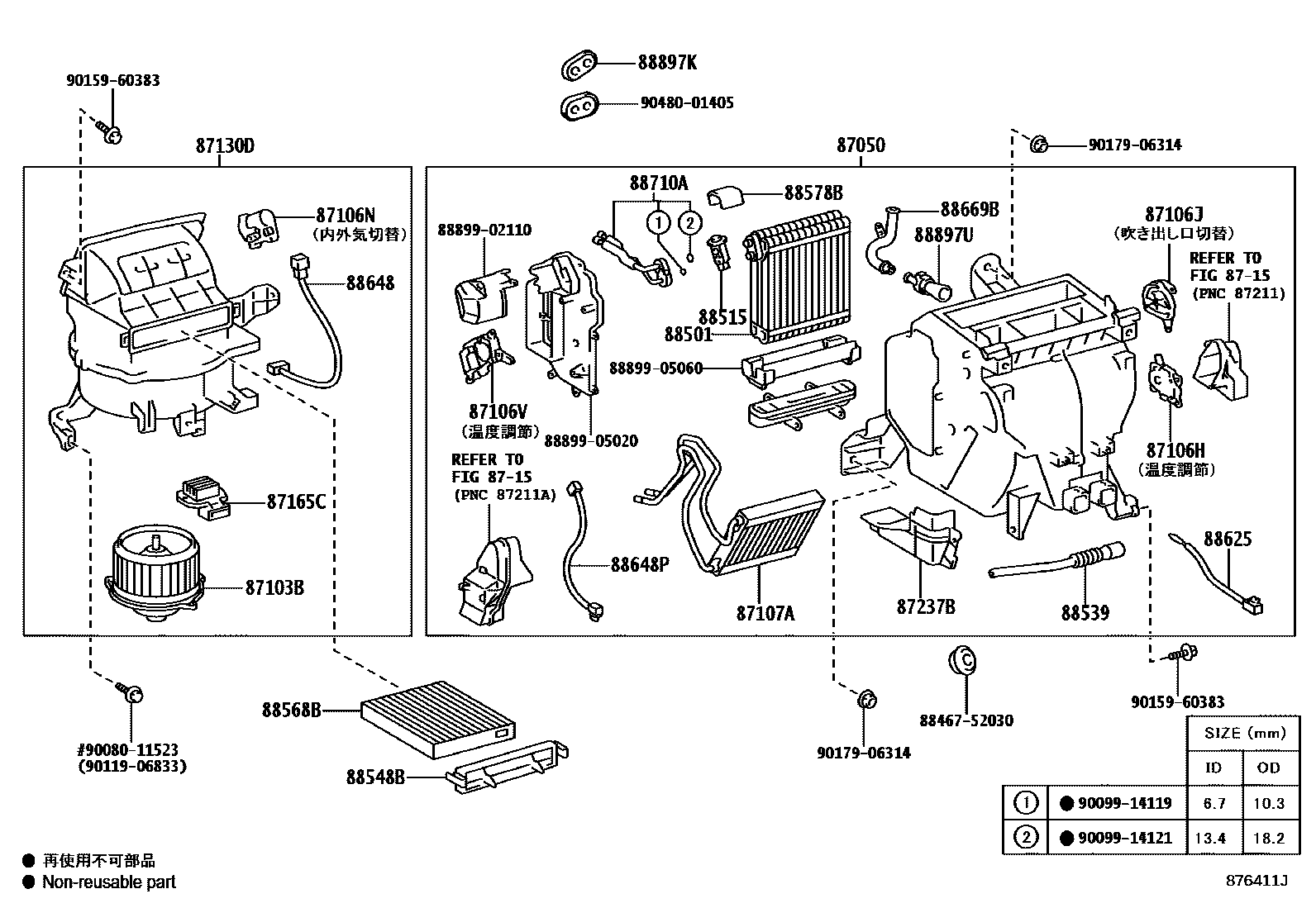

HEATING & AIR CONDITIONING - COOLER UNIT
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
8715
87165CCONTROL, BLOWER MOTOR
87237BCOVER, HEATER PIPING
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88548BCASE, AIR FILTER
88568BFILTER, AIR
88578BPACKING, COOLING UNIT, NO.1
88648WIRING, COOLER, NO.1
88648PWIRE,AIR CONDITIONER,NO.1
88669BHOSE, COOLER AIR
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897UPIPE, ASPIRATOR
8846752030CUSHION, COOLER CONDENSER, NO.1
main88467-52030
8889902110COVER, EVAPORATOR
main88899-02110
8889905020COVER, EVAPORATOR
main88899-05020
8889905060COVER, EVAPORATOR
main88899-05060
9009914119
main90099-14119
9009914121
main90099-14121
9015960383
main90159-60383
9017906314
main90179-06314
9048001405
main90480-01405
33 parts on this diagram · 1 diagram in section
